CAT 320C 5I-8043 Parts Manual Diagram - PIPE

Home › Parts Manual › CAT 320C › 5I-8043

Part No.

5I-8043

Name (EN)

PIPE

Name (CN)

Qty

1 per assembly

Group

178-6528

System

FUEL SYSTEM

Source

CAT Official Parts Manual

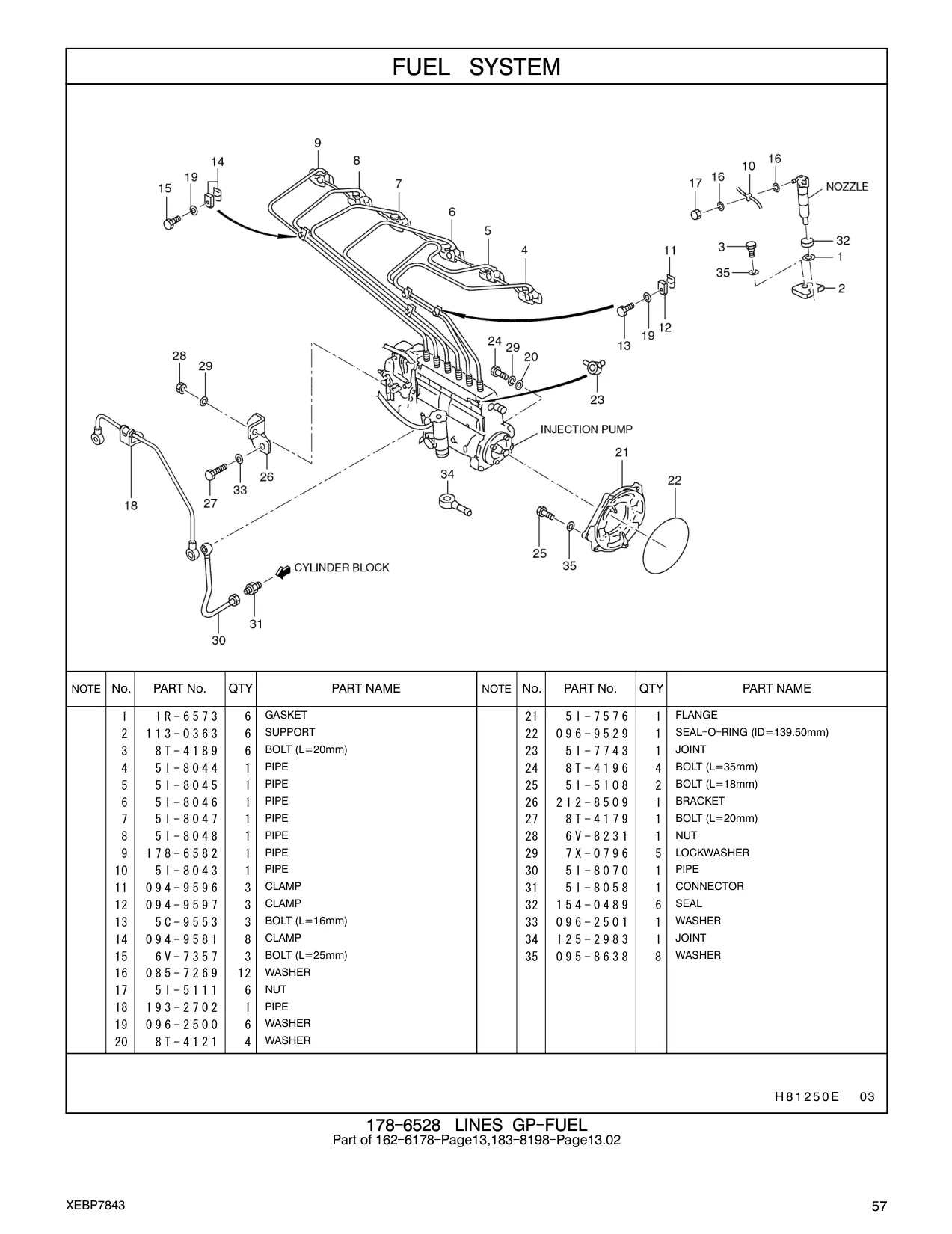

※ Click image to zoom · Page 89 of official CAT 320C parts manual

Part No.	Name	Qty	Page
1R-6573	GASKET	6	89
5I-7576	FLANGE	1	89
113-0363	SUPPORT	6	89
096-9529	SEAL - O - RING (ID=139.50mm)	1	89
8T-4189	BOLT (L=20mm)	6	89
5I-7743	JOINT	1	89
5I-8044	PIPE	1	89
8T-4196	BOLT (L=35mm)	4	89
5I-8045	PIPE	1	89
5I-5108	BOLT (L=18mm)	2	89
5I-8046	PIPE	1	89
212-8509	BRACKET	1	89
5I-8047	PIPE	1	89
8T-4179	BOLT (L=20mm)	1	89
5I-8048	PIPE	1	89
6V-8231	NUT	1	89
178-6582	PIPE	1	89
7X-0796	LOCKWASHER	5	89
5I-8070	PIPE	1	89
094-9596	CLAMP	3	89
5I-8058	CONNECTOR	1	89
094-9597	CLAMP	3	89
154-0489	SEAL	6	89
5C-9553	BOLT (L=16mm)	3	89
096-2501	WASHER	1	89
094-9581	CLAMP	8	89
125-2983	JOINT	1	89
6V-7357	BOLT (L=25mm)	3	89
085-7269	WASHER	12	89
5I-5111	NUT	6	89
193-2702	PIPE	1	89
096-2500	WASHER	6	89
8T-4121	WASHER	4	89
095-8638	WASHER H 8 1 2 5 0 E 03	8	89
1R-6573	GASKET	6	68
5I-7576	FLANGE	1	68
113-0363	SUPPORT	6	68
096-9529	SEAL - O - RING (ID=139.50mm)	1	68
8T-4189	BOLT (L=20mm)	6	68
5I-7743	JOINT	1	68
5I-8044	PIPE	1	68
8T-4196	BOLT (L=35mm)	4	68
5I-8045	PIPE	1	68
5I-5108	BOLT (L=18mm)	2	68
5I-8046	PIPE	1	68
212-8509	BRACKET	1	68
5I-8047	PIPE	1	68
8T-4179	BOLT (L=20mm)	1	68
5I-8048	PIPE	1	68
6V-8231	NUT	1	68
