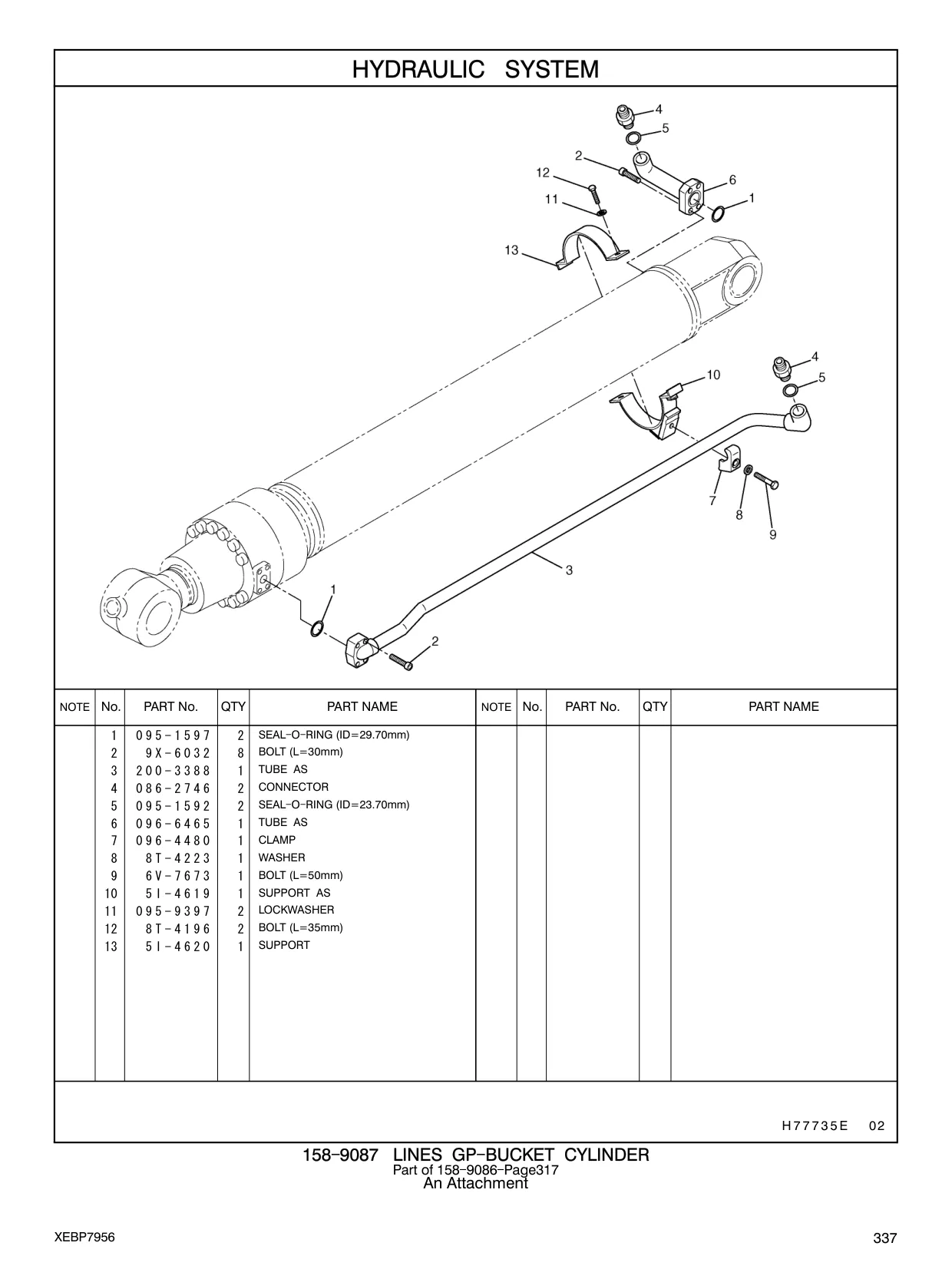

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 564 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 564 |
| 200-3388 |
TUBE AS
|
1 | 564 |
| 086-2746 |
CONNECTOR
|
2 | 564 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 564 |
| 096-6465 |
TUBE AS
|
1 | 564 |
| 096-4480 |
CLAMP
|
1 | 564 |
| 8T-4223 |
WASHER
|
1 | 564 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 564 |
| 5I-4619 |
SUPPORT AS
|
1 | 564 |
| 095-9397 |
LOCKWASHER
|
2 | 564 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 564 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 456 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 456 |
| 200-3388 |
TUBE AS
|
1 | 456 |
| 086-2746 |
CONNECTOR
|
2 | 456 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 456 |
| 096-6465 |
TUBE AS
|
1 | 456 |
| 096-4480 |
CLAMP
|
1 | 456 |
| 8T-4223 |
WASHER
|
1 | 456 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 456 |
| 5I-4619 |
SUPPORT AS
|
1 | 456 |
| 095-9397 |
LOCKWASHER
|
2 | 456 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 456 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 368 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 368 |
| 200-3388 |
TUBE AS
|
1 | 368 |
| 086-2746 |
CONNECTOR
|
2 | 368 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 368 |
| 096-6465 |
TUBE AS
|
1 | 368 |
| 096-4480 |
CLAMP
|
1 | 368 |
| 8T-4223 |
WASHER
|
1 | 368 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 368 |
| 5I-4619 |
SUPPORT AS
|
1 | 368 |
| 095-9397 |
LOCKWASHER
|
2 | 368 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 368 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 506 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 506 |
| 200-3388 |
TUBE AS
|
1 | 506 |
| 086-2746 |
CONNECTOR
|
2 | 506 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 506 |
| 096-6465 |
TUBE AS
|
1 | 506 |
| 096-4480 |
CLAMP
|
1 | 506 |
| 8T-4223 |
WASHER
|
1 | 506 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 506 |
| 5I-4619 |
SUPPORT AS
|
1 | 506 |
| 095-9397 |
LOCKWASHER
|
2 | 506 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 506 |
