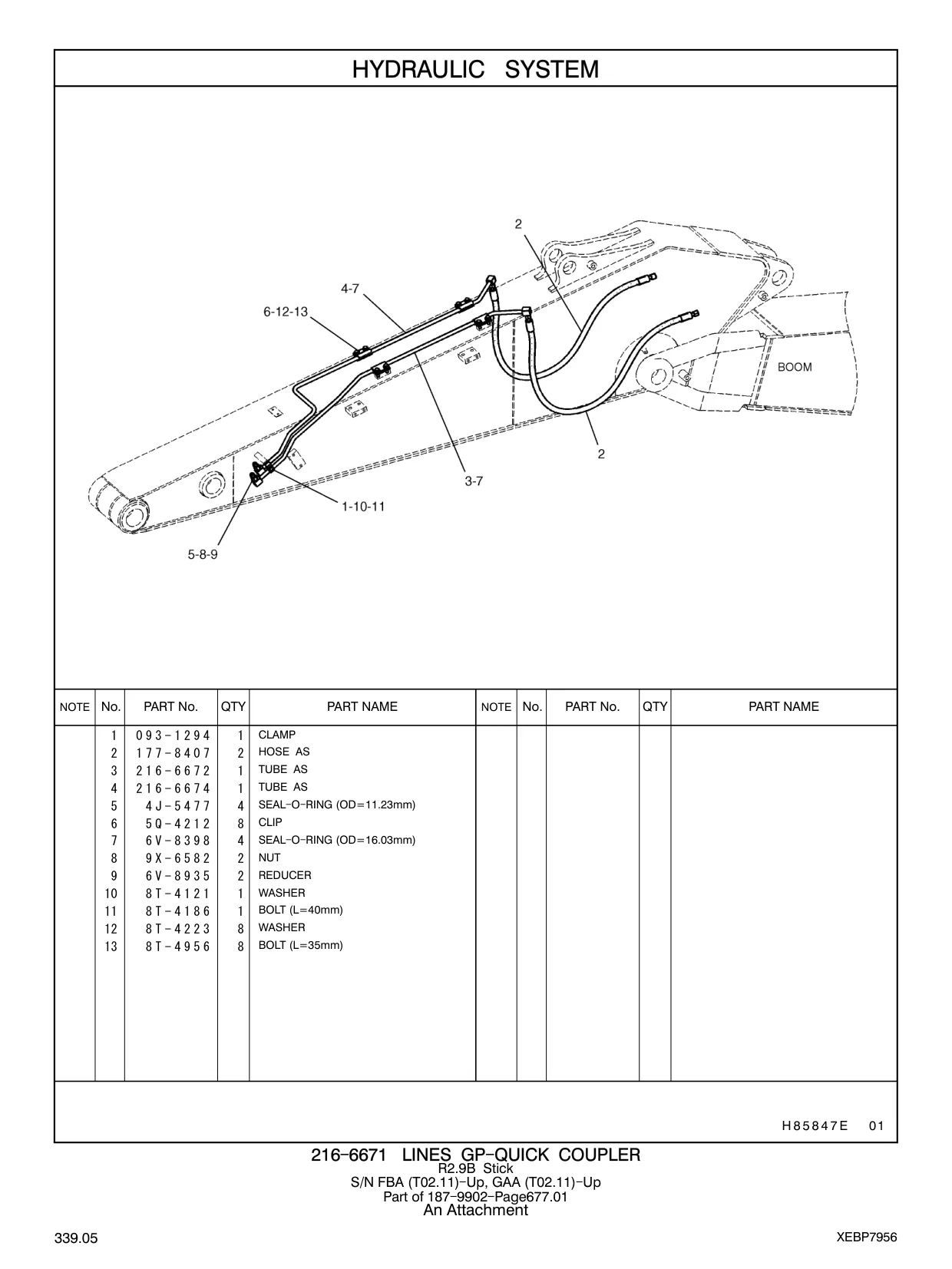

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 093-1294 |
CLAMP
|
1 | 571 |
| 177-8407 |
HOSE AS
|
2 | 571 |
| 216-6672 |
TUBE AS
|
1 | 571 |
| 216-6674 |
TUBE AS
|
1 | 571 |
| 5Q-4212 |
CLIP
|
8 | 571 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 571 |
| 9X-6582 |
NUT
|
2 | 571 |
| 6V-8935 |
REDUCER
|
2 | 571 |
| 8T-4121 |
WASHER
|
1 | 571 |
| 8T-4186 |
BOLT (L=40mm)
|
1 | 571 |
| 8T-4223 |
WASHER
|
8 | 571 |
| 8T-4956 |
BOLT (L=35mm)
|
8 | 571 |
| 093-1294 |
CLAMP
|
1 | 462 |
| 177-8407 |
HOSE AS
|
2 | 462 |
| 216-6672 |
TUBE AS
|
1 | 462 |
| 216-6674 |
TUBE AS
|
1 | 462 |
| 5Q-4212 |
CLIP
|
8 | 462 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 462 |
| 6V-8554 |
NUT
|
2 | 462 |
| 6V-8935 |
REDUCER
|
2 | 462 |
| 8T-4121 |
WASHER
|
1 | 462 |
| 8T-4186 |
BOLT (L=40mm)
|
1 | 462 |
| 8T-4223 |
WASHER
|
8 | 462 |
| 8T-4956 |
BOLT (L=35mm)
|
8 | 462 |
| 093-1294 |
CLAMP
|
1 | 410 |
| 177-8407 |
HOSE AS
|
2 | 410 |
| 216-6672 |
TUBE AS
|
1 | 410 |
| 216-6674 |
TUBE AS
|
1 | 410 |
| 5Q-4212 |
CLIP
|
8 | 410 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 410 |
| 6V-8554 |
NUT
|
2 | 410 |
| 6V-8935 |
REDUCER
|
2 | 410 |
| 8T-4121 |
WASHER
|
1 | 410 |
| 8T-4186 |
BOLT (L=40mm)
|
1 | 410 |
| 8T-4223 |
WASHER
|
8 | 410 |
| 8T-4956 |
BOLT (L=35mm)
|
8 | 410 |
| 093-1294 |
CLAMP
|
1 | 546 |
| 177-8407 |
HOSE AS
|
2 | 546 |
| 216-6672 |
TUBE AS
|
1 | 546 |
| 216-6674 |
TUBE AS
|
1 | 546 |
| 5Q-4212 |
CLIP
|
8 | 546 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 546 |
| 9X-6582 |
NUT
|
2 | 546 |
| 6V-8935 |
REDUCER
|
2 | 546 |
| 8T-4121 |
WASHER
|
1 | 546 |
| 8T-4186 |
BOLT (L=40mm)
|
1 | 546 |
| 8T-4223 |
WASHER
|
8 | 546 |
| 8T-4956 |
BOLT (L=35mm)
|
8 | 546 |
