CAT 320C 4I-5396 Parts Manual Diagram - HARNESS AS

Home › Parts Manual › CAT 320C › 4I-5396

Part No.

4I-5396

Name (EN)

HARNESS AS

Name (CN)

Qty

1 per assembly

Group

116-0215

System

ELECTRICAL AND STARTING SYSTEM

Source

CAT Official Parts Manual

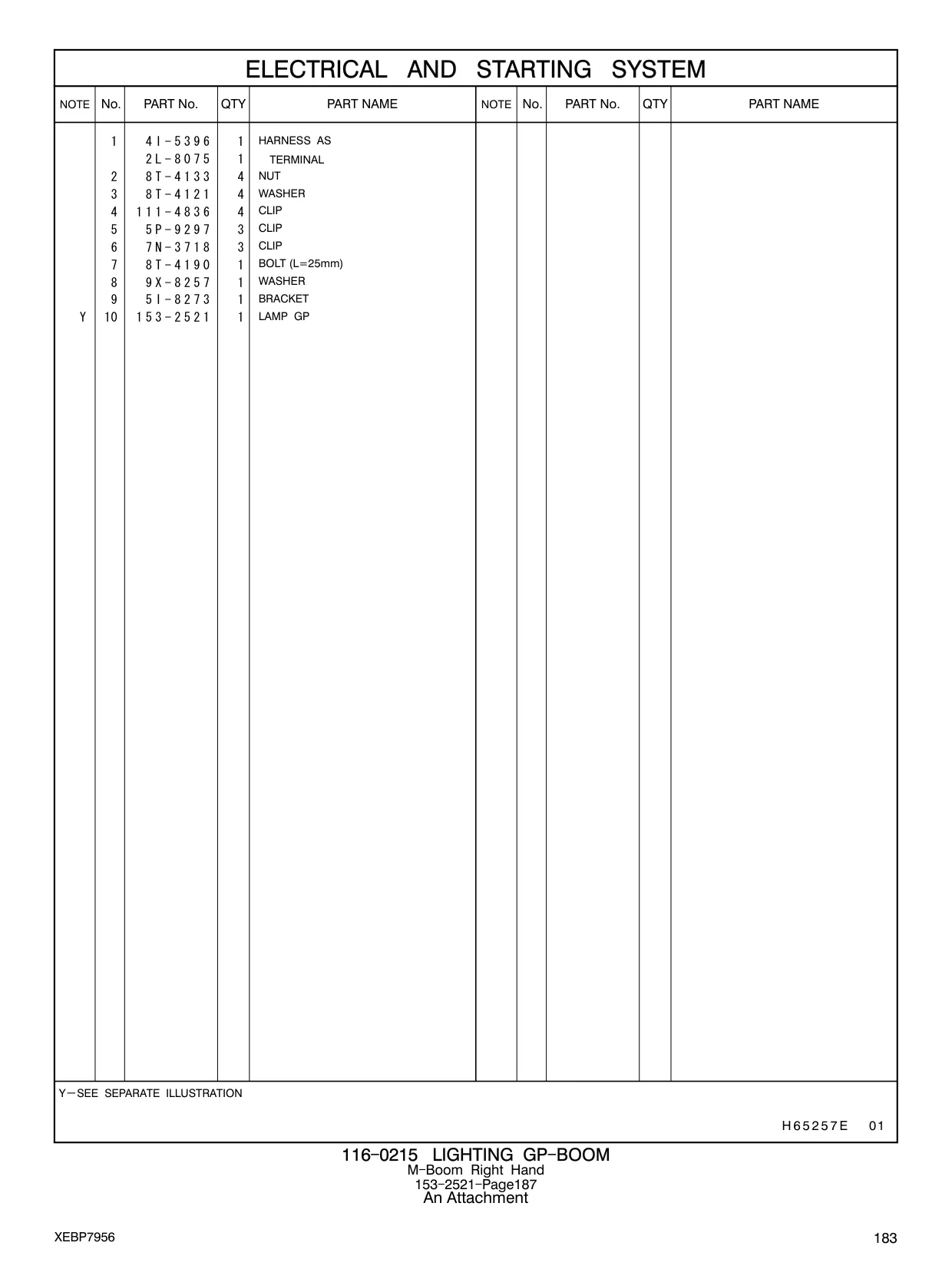

※ Click image to zoom · Page 338 of official CAT 320C parts manual

Part No.	Name	Qty	Page
153-2521	153-2521	1	337
2L-8075	TERMINAL	1	338
8T-4133	NUT	4	338
8T-4121	WASHER	4	338
111-4836	CLIP	4	338
5P-9297	CLIP	3	338
7N-3718	CLIP	3	338
8T-4190	BOLT (L=25mm)	1	338
9X-8257	WASHER	1	338
5I-8273	BRACKET	1	338
153-2521	LAMP GP	1	338
153-2521	153-2521	1	228
2L-8075	TERMINAL	1	229
8T-4133	NUT	4	229
8T-4121	WASHER	4	229
111-4836	CLIP	4	229
5P-9297	CLIP	3	229
7N-3718	CLIP	3	229
8T-4190	BOLT (L=25mm)	1	229
9X-8257	WASHER	1	229
5I-8273	BRACKET	1	229
153-2521	LAMP GP	1	229
