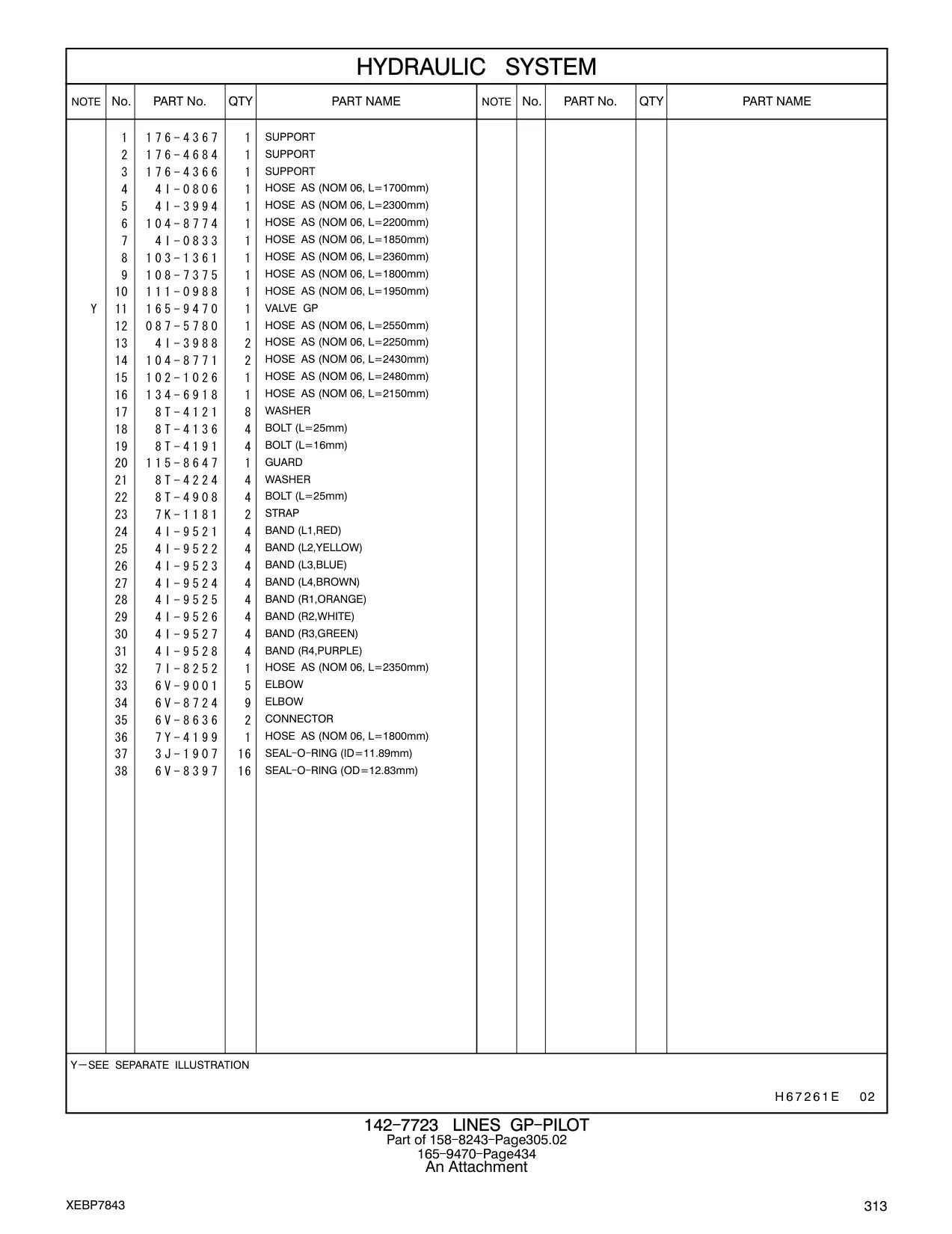

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 158-8243 |
158-8243
|
1 | 554 |
| 165-9470 |
165-9470
|
1 | 554 |
| 176-4367 |
SUPPORT
|
1 | 555 |
| 176-4684 |
SUPPORT
|
1 | 555 |
| 176-4366 |
SUPPORT
|
1 | 555 |
| 4I-3994 |
HOSE AS (NOM 06, L=2300mm)
|
1 | 555 |
| 104-8774 |
HOSE AS (NOM 06, L=2200mm)
|
1 | 555 |
| 4I-0833 |
HOSE AS (NOM 06, L=1850mm)
|
1 | 555 |
| 103-1361 |
HOSE AS (NOM 06, L=2360mm)
|
1 | 555 |
| 108-7375 |
HOSE AS (NOM 06, L=1800mm)
|
1 | 555 |
| 111-0988 |
HOSE AS (NOM 06, L=1950mm)
|
1 | 555 |
| 165-9470 |
VALVE GP
|
1 | 555 |
| 087-5780 |
HOSE AS (NOM 06, L=2550mm)
|
1 | 555 |
| 4I-3988 |
HOSE AS (NOM 06, L=2250mm)
|
2 | 555 |
| 104-8771 |
HOSE AS (NOM 06, L=2430mm)
|
2 | 555 |
| 102-1026 |
HOSE AS (NOM 06, L=2480mm)
|
1 | 555 |
| 134-6918 |
HOSE AS (NOM 06, L=2150mm)
|
1 | 555 |
| 8T-4121 |
WASHER
|
8 | 555 |
| 8T-4136 |
BOLT (L=25mm)
|
4 | 555 |
| 8T-4191 |
BOLT (L=16mm)
|
4 | 555 |
| 115-8647 |
GUARD
|
1 | 555 |
| 8T-4224 |
WASHER
|
4 | 555 |
| 8T-4908 |
BOLT (L=25mm)
|
4 | 555 |
| 7K-1181 |
STRAP
|
2 | 555 |
| 4I-9521 |
BAND (L1,RED)
|
4 | 555 |
| 4I-9522 |
BAND (L2,YELLOW)
|
4 | 555 |
| 4I-9523 |
BAND (L3,BLUE)
|
4 | 555 |
| 4I-9524 |
BAND (L4,BROWN)
|
4 | 555 |
| 4I-9525 |
BAND (R1,ORANGE)
|
4 | 555 |
| 4I-9526 |
BAND (R2,WHITE)
|
4 | 555 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 555 |
| 4I-9528 |
BAND (R4,PURPLE)
|
4 | 555 |
| 7I-8252 |
HOSE AS (NOM 06, L=2350mm)
|
1 | 555 |
| 6V-9001 |
ELBOW
|
5 | 555 |
| 6V-8724 |
ELBOW
|
9 | 555 |
| 6V-8636 |
CONNECTOR
|
2 | 555 |
| 7Y-4199 |
HOSE AS (NOM 06, L=1800mm)
|
1 | 555 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
16 | 555 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
16 | 555 |
