3E-9850

BOLT (L=220mm)

Group: 199-7287 · System: FRAME AND BODY · Page: 397
Home › Parts Manual › CAT 320C › 3E-9850

Part Information

Part No.
3E-9850
Name (EN)
BOLT (L=220mm)
Name (CN)
-
Qty
4 per assembly
Group
199-7287
System
FRAME AND BODY
Source
CAT Official Parts Manual

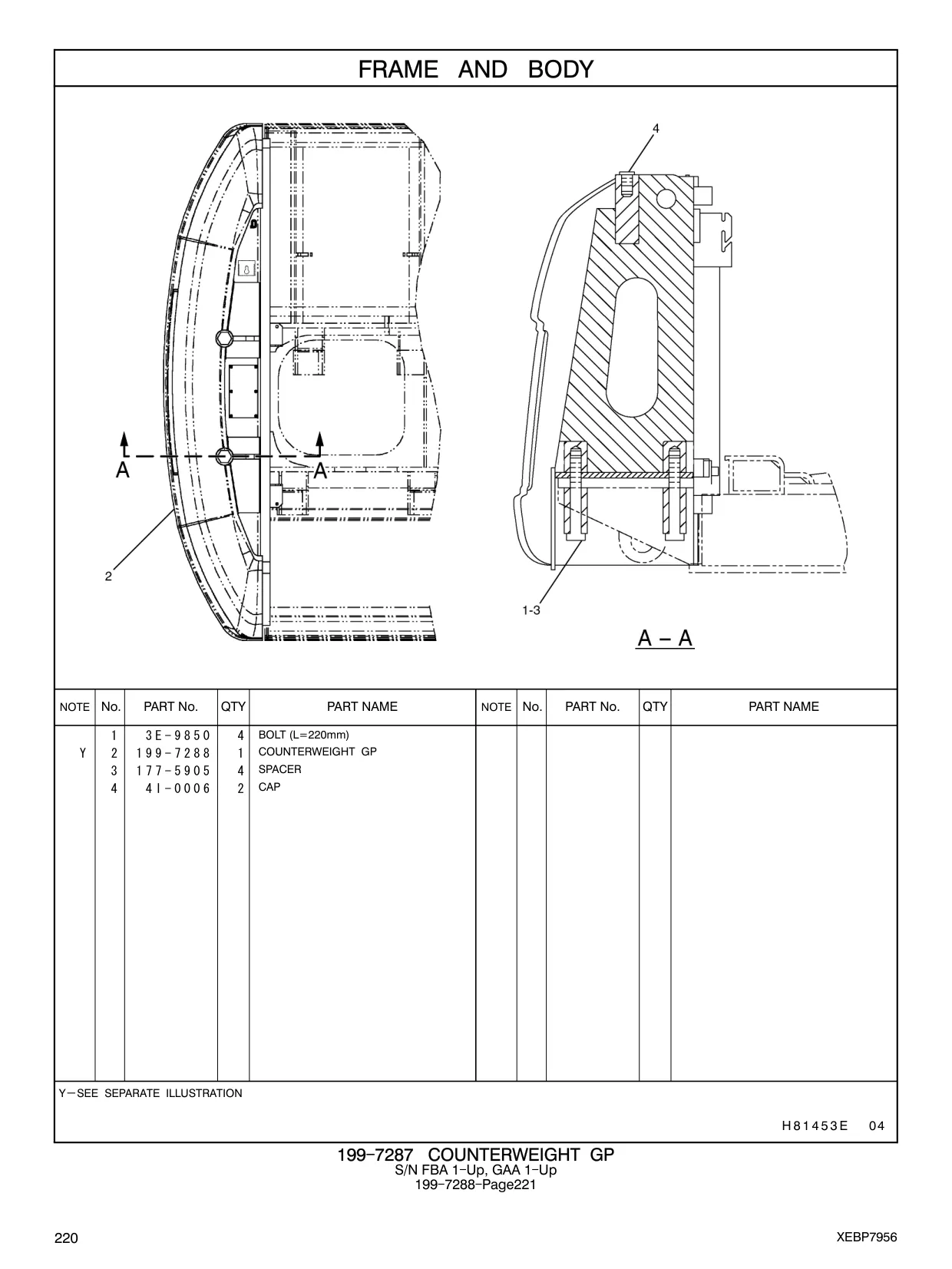

Installation Diagram

3E-9850 - BOLT (L=220mm)
※ Click image to zoom · Page 397 of official CAT 320C parts manual
×

Same Group Parts (199-7287) - 3 related

Part No. Name Qty Page
199-7288
COUNTERWEIGHT GP
 1 397
177-5905
SPACER
 4 397
4I-0006
CAP
 2 397
