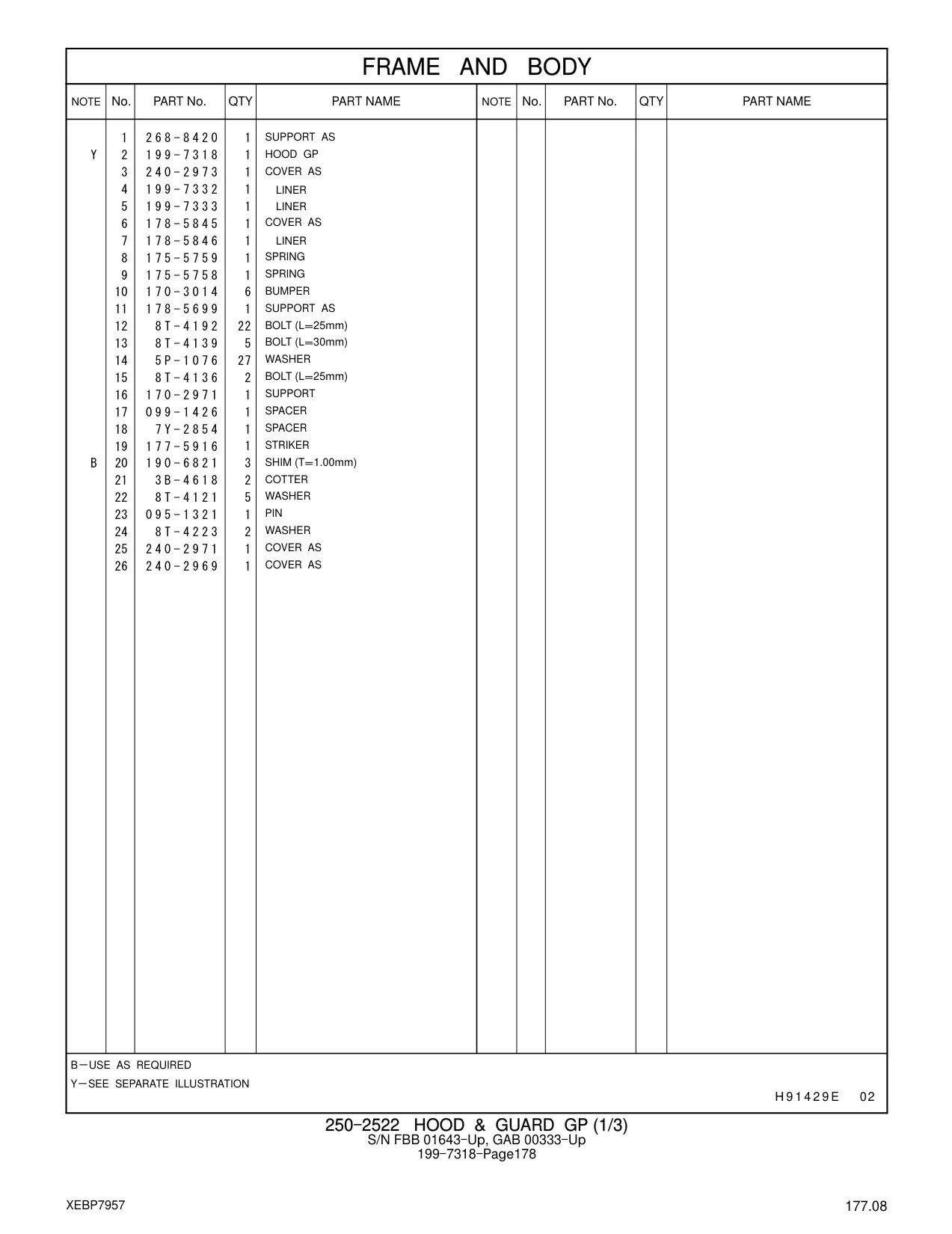

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 199-7318 |
199-7318
|
1 | 344 |
| 199-7318 |
HOOD GP
|
1 | 345 |
| 240-2973 |
COVER AS
|
1 | 345 |
| 199-7332 |
LINER
|
1 | 345 |
| 199-7333 |
LINER
|
1 | 345 |
| 178-5845 |
COVER AS
|
1 | 345 |
| 178-5846 |
LINER
|
1 | 345 |
| 175-5759 |
SPRING
|
1 | 345 |
| 175-5758 |
SPRING
|
1 | 345 |
| 170-3014 |
BUMPER
|
6 | 345 |
| 178-5699 |
SUPPORT AS
|
1 | 345 |
| 8T-4192 |
BOLT (L=25mm)
|
22 | 345 |
| 8T-4139 |
BOLT (L=30mm)
|
5 | 345 |
| 5P-1076 |
WASHER
|
27 | 345 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 345 |
| 170-2971 |
SUPPORT
|
1 | 345 |
| 099-1426 |
SPACER
|
1 | 345 |
| 7Y-2854 |
SPACER
|
1 | 345 |
| 177-5916 |
STRIKER
|
1 | 345 |
| 190-6821 |
SHIM (T=1.00mm)
|
3 | 345 |
| 3B-4618 |
COTTER
|
2 | 345 |
| 8T-4121 |
WASHER
|
5 | 345 |
| 095-1321 |
PIN
|
1 | 345 |
| 8T-4223 |
WASHER
|
2 | 345 |
| 240-2971 |
COVER AS
|
1 | 345 |
| 240-2969 |
COVER AS
|
1 | 345 |
| 175-5781 |
175-5781
|
1 | 346 |
| 178-5821 |
SHEET
|
1 | 347 |
| 178-5824 |
SHEET AS
|
1 | 347 |
| 199-7334 |
SHEET AS
|
1 | 347 |
| 175-5658 |
INSULATION
|
1 | 347 |
| 6P-2216 |
CAP
|
4 | 347 |
| 175-5653 |
LINER
|
1 | 347 |
| 199-7337 |
LINER
|
1 | 347 |
| 178-5745 |
SHEET AS
|
1 | 347 |
| 199-7354 |
SHEET AS
|
1 | 347 |
| 199-7356 |
LINER
|
1 | 347 |
| 199-7357 |
LINER
|
1 | 347 |
| 8T-4137 |
BOLT (L=20mm)
|
3 | 347 |
| 175-5781 |
DOOR GP
|
1 | 347 |
| 175-5787 |
DOOR GP
|
1 | 347 |
| 8T-4192 |
BOLT (L=25mm)
|
26 | 347 |
| 8T-4139 |
BOLT (L=30mm)
|
3 | 347 |
| 5P-1076 |
WASHER
|
29 | 347 |
| 8T-0269 |
BOLT (L=20mm)
|
4 | 347 |
| 8T-4138 |
BOLT (L=20mm)
|
7 | 347 |
| 8T-4171 |
BOLT (L=12mm)
|
4 | 347 |
| 5P-4115 |
WASHER
|
10 | 347 |
| 3B-4618 |
COTTER
|
1 | 347 |
| 8T-4121 |
WASHER
|
5 | 347 |
