CAT 320C 233-1162 Parts Manual Diagram - PISTON

Home › Parts Manual › CAT 320C › 233-1162

Part No.

233-1162

Name (EN)

PISTON

Name (CN)

Qty

6 per assembly

Group

233-1157

System

BASIC ENGINE

Source

CAT Official Parts Manual

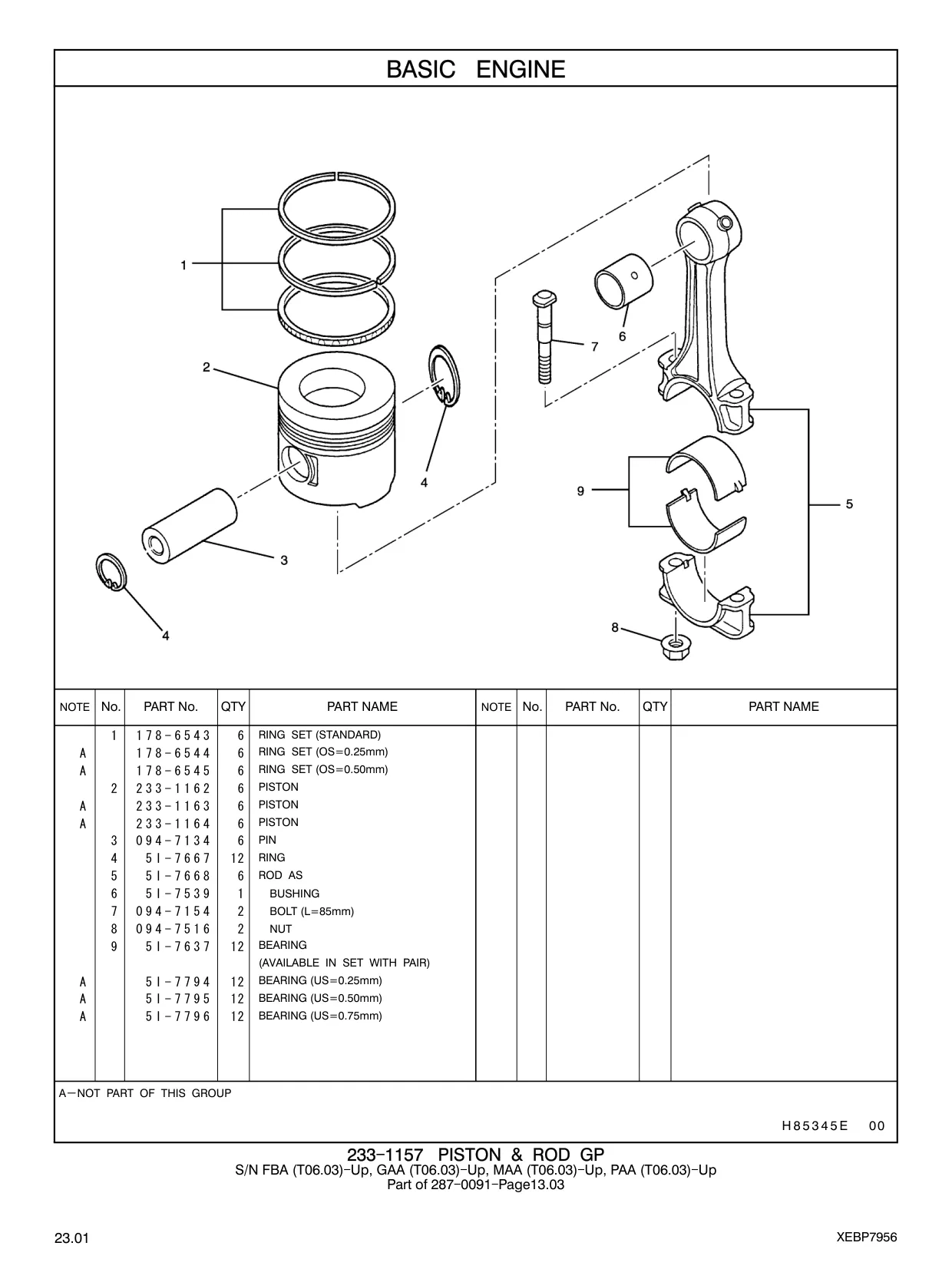

※ Click image to zoom · Page 35 of official CAT 320C parts manual

Part No.	Name	Qty	Page
178-6543	RING SET (STANDARD)	6	35
178-6544	RING SET (OS=0.25mm)	6	35
178-6545	RING SET (OS=0.50mm)	6	35
233-1163	PISTON	6	35
233-1164	PISTON	6	35
094-7134	PIN	6	35
5I-7667	RING	12	35
5I-7668	ROD AS	6	35
5I-7539	BUSHING	1	35
094-7154	BOLT (L=85mm)	2	35
094-7516	NUT	2	35
5I-7637	BEARING (AVAILABLE IN SET WITH PAIR)	12	35
5I-7794	BEARING (US=0.25mm)	12	35
5I-7795	BEARING (US=0.50mm)	12	35
5I-7796	BEARING (US=0.75mm)	12	35
178-6543	RING SET (STANDARD)	6	34
178-6544	RING SET (OS=0.25mm)	6	34
178-6545	RING SET (OS=0.50mm)	6	34
297-7751	PISTON	6	34
297-7756	PISTON	6	34
297-7757	PISTON	6	34
094-7134	PIN	6	34
5I-7667	RING	12	34
5I-7668	ROD AS	6	34
5I-7539	BUSHING	1	34
094-7154	BOLT (L=85mm)	2	34
094-7516	NUT	2	34
5I-7637	BEARING (AVAILABLE IN SET WITH PAIR)	12	34
5I-7794	BEARING (US=0.25mm)	12	34
5I-7795	BEARING (US=0.50mm)	12	34
5I-7796	BEARING (US=0.75mm)	12	34
