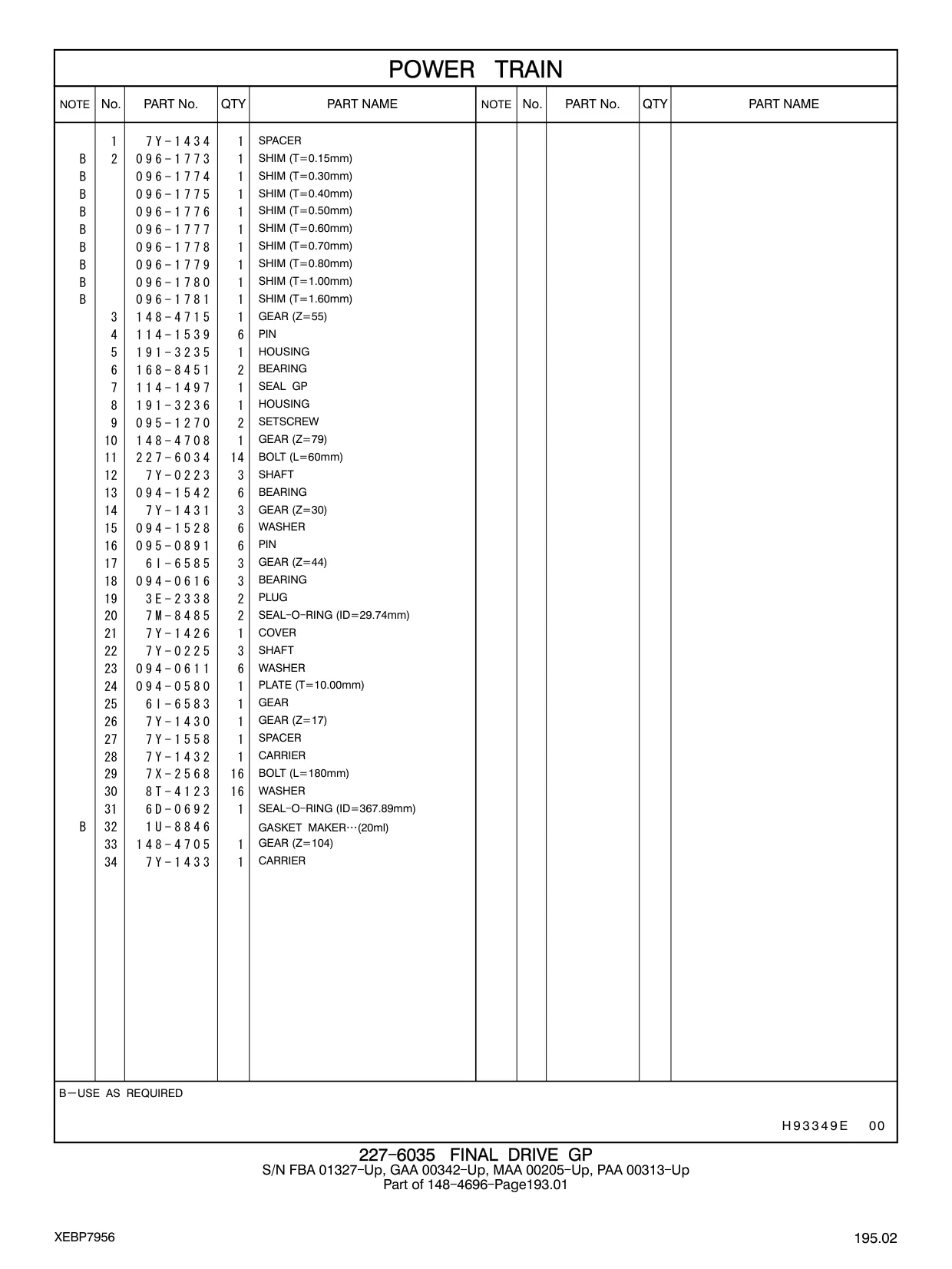

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 148-4696 |
148-4696
|
1 | 355 |
| 7Y-1434 |
SPACER
|
1 | 356 |
| 096-1773 |
SHIM (T=0.15mm)
|
1 | 356 |
| 096-1774 |
SHIM (T=0.30mm)
|
1 | 356 |
| 096-1775 |
SHIM (T=0.40mm)
|
1 | 356 |
| 096-1776 |
SHIM (T=0.50mm)
|
1 | 356 |
| 096-1777 |
SHIM (T=0.60mm)
|
1 | 356 |
| 096-1778 |
SHIM (T=0.70mm)
|
1 | 356 |
| 096-1779 |
SHIM (T=0.80mm)
|
1 | 356 |
| 096-1780 |
SHIM (T=1.00mm)
|
1 | 356 |
| 096-1781 |
SHIM (T=1.60mm)
|
1 | 356 |
| 148-4715 |
GEAR (Z=55)
|
1 | 356 |
| 114-1539 |
PIN
|
6 | 356 |
| 191-3235 |
HOUSING
|
1 | 356 |
| 168-8451 |
BEARING
|
2 | 356 |
| 114-1497 |
SEAL GP
|
1 | 356 |
| 191-3236 |
HOUSING
|
1 | 356 |
| 095-1270 |
SETSCREW
|
2 | 356 |
| 148-4708 |
GEAR (Z=79)
|
1 | 356 |
| 7Y-0223 |
SHAFT
|
3 | 356 |
| 094-1542 |
BEARING
|
6 | 356 |
| 7Y-1431 |
GEAR (Z=30)
|
3 | 356 |
| 094-1528 |
WASHER
|
6 | 356 |
| 095-0891 |
PIN
|
6 | 356 |
| 6I-6585 |
GEAR (Z=44)
|
3 | 356 |
| 094-0616 |
BEARING
|
3 | 356 |
| 3E-2338 |
PLUG
|
2 | 356 |
| 7M-8485 |
SEAL - O - RING (ID=29.74mm)
|
2 | 356 |
| 7Y-1426 |
COVER
|
1 | 356 |
| 7Y-0225 |
SHAFT
|
3 | 356 |
| 094-0611 |
WASHER
|
6 | 356 |
| 094-0580 |
PLATE (T=10.00mm)
|
1 | 356 |
| 6I-6583 |
GEAR
|
1 | 356 |
| 7Y-1430 |
GEAR (Z=17)
|
1 | 356 |
| 7Y-1558 |
SPACER
|
1 | 356 |
| 7Y-1432 |
CARRIER
|
1 | 356 |
| 7X-2568 |
BOLT (L=180mm)
|
16 | 356 |
| 8T-4123 |
WASHER
|
16 | 356 |
| 6D-0692 |
SEAL - O - RING (ID=367.89mm)
|
1 | 356 |
| 1U-8846 |
GASKET MAKER (20ml)
|
1 | 356 |
| 148-4705 |
GEAR (Z=104)
|
1 | 356 |
| 7Y-1433 |
CARRIER
|
1 | 356 |
| 148-4696 |
148-4696
|
1 | 328 |
| 7Y-1434 |
SPACER
|
1 | 329 |
| 096-1773 |
SHIM (T=0.15mm)
|
1 | 329 |
| 096-1774 |
SHIM (T=0.30mm)
|
1 | 329 |
| 096-1775 |
SHIM (T=0.40mm)
|
1 | 329 |
| 096-1776 |
SHIM (T=0.50mm)
|
1 | 329 |
| 096-1777 |
SHIM (T=0.60mm)
|
1 | 329 |
| 096-1778 |
SHIM (T=0.70mm)
|
1 | 329 |
