| Part No. | Name | Qty | Page |
|---|---|---|---|
| 8T-1160 |
BOLT (L=50mm)
|
4 | 556 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
1 | 556 |
| 124-1033 |
TUBE AS
|
1 | 556 |
| 086-2746 |
CONNECTOR
|
1 | 556 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
1 | 556 |
| 096-6223 |
CONNECTOR
|
1 | 556 |
| 095-1596 |
SEAL - O - RING (ID=28.70mm)
|
1 | 556 |
| 8T-4910 |
BOLT (L=60mm)
|
1 | 556 |
| 8T-4223 |
WASHER
|
1 | 556 |
| 8T-0343 |
BOLT (L=55mm)
|
4 | 556 |
| 096-4445 |
ELBOW
|
1 | 556 |
| 095-1600 |
SEAL - O - RING (ID=33.70mm)
|
1 | 556 |
| 124-1020 |
SUPPORT
|
1 | 556 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 556 |
| 095-9397 |
LOCKWASHER
|
2 | 556 |
| 124-1019 |
SUPPORT AS
|
1 | 556 |
| 096-4480 |
CLAMP
|
1 | 556 |
| 9F-4976 |
LOCKWASHER
|
1 | 556 |

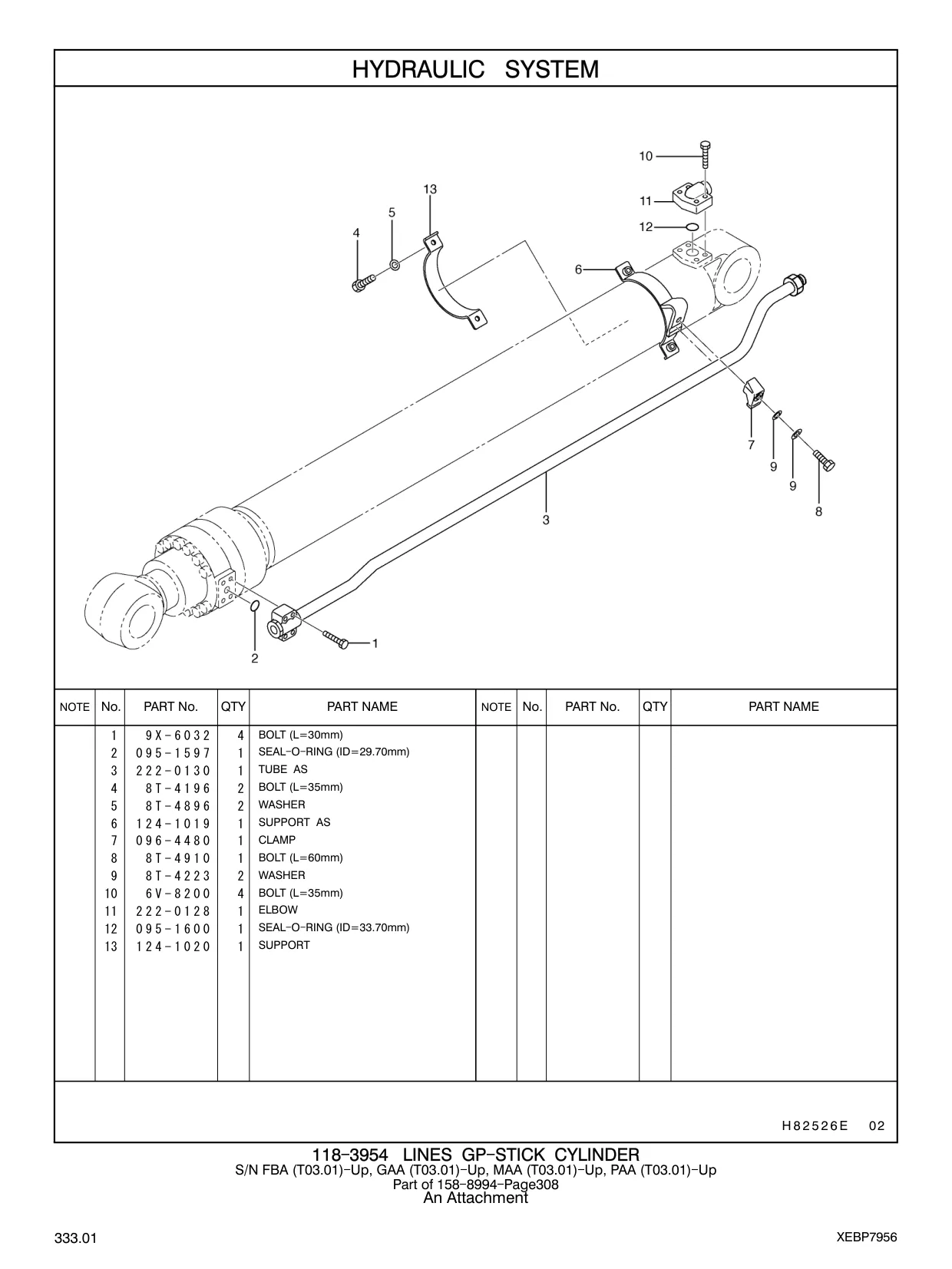

| 9X-6032 |
BOLT (L=30mm)
|
4 | 557 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
1 | 557 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 557 |
| 8T-4896 |
WASHER
|
2 | 557 |
| 124-1019 |
SUPPORT AS
|
1 | 557 |
| 096-4480 |
CLAMP
|
1 | 557 |
| 8T-4910 |
BOLT (L=60mm)
|
1 | 557 |
| 8T-4223 |
WASHER
|
2 | 557 |
| 6V-8200 |
BOLT (L=35mm)
|
4 | 557 |
| 222-0128 |
ELBOW
|
1 | 557 |
| 095-1600 |
SEAL - O - RING (ID=33.70mm)
|
1 | 557 |
| 124-1020 |
SUPPORT
|
1 | 557 |
| 8T-1160 |
BOLT (L=50mm)
|
4 | 449 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
1 | 449 |
| 124-1033 |
TUBE AS
|
1 | 449 |
| 086-2746 |
CONNECTOR
|
1 | 449 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
1 | 449 |
| 096-6223 |
CONNECTOR
|
1 | 449 |
| 095-1596 |
SEAL - O - RING (ID=28.70mm)
|
1 | 449 |
| 8T-4910 |
BOLT (L=60mm)
|
1 | 449 |
| 8T-4223 |
WASHER
|
1 | 449 |
| 8T-0343 |
BOLT (L=55mm)
|
4 | 449 |
| 096-4445 |
ELBOW
|
1 | 449 |
| 095-1600 |
SEAL - O - RING (ID=33.70mm)
|
1 | 449 |
| 124-1020 |
SUPPORT
|
1 | 449 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 449 |
| 095-9397 |
LOCKWASHER
|
2 | 449 |
| 124-1019 |
SUPPORT AS
|
1 | 449 |
| 096-4480 |
CLAMP
|
1 | 449 |
| 9F-4976 |
LOCKWASHER
|
1 | 449 |
| 9X-6032 |
BOLT (L=30mm)
|
4 | 450 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
1 | 450 |
