| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4I-3618 |
TUBE AS
|
1 | 547 |
| 4I-3619 |
TUBE AS
|
1 | 547 |
| 086-2746 |
CONNECTOR
|
2 | 547 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 547 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 547 |
| 8T-1160 |
BOLT (L=50mm)
|
8 | 547 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 547 |
| 3B-4509 |
LOCKWASHER
|
1 | 547 |
| 094-1920 |
CLAMP
|
2 | 547 |
| 137-3709 |
SUPPORT AS
|
1 | 547 |
| 4I-3621 |
SUPPORT
|
1 | 547 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 547 |
| 095-9397 |
LOCKWASHER
|
2 | 547 |

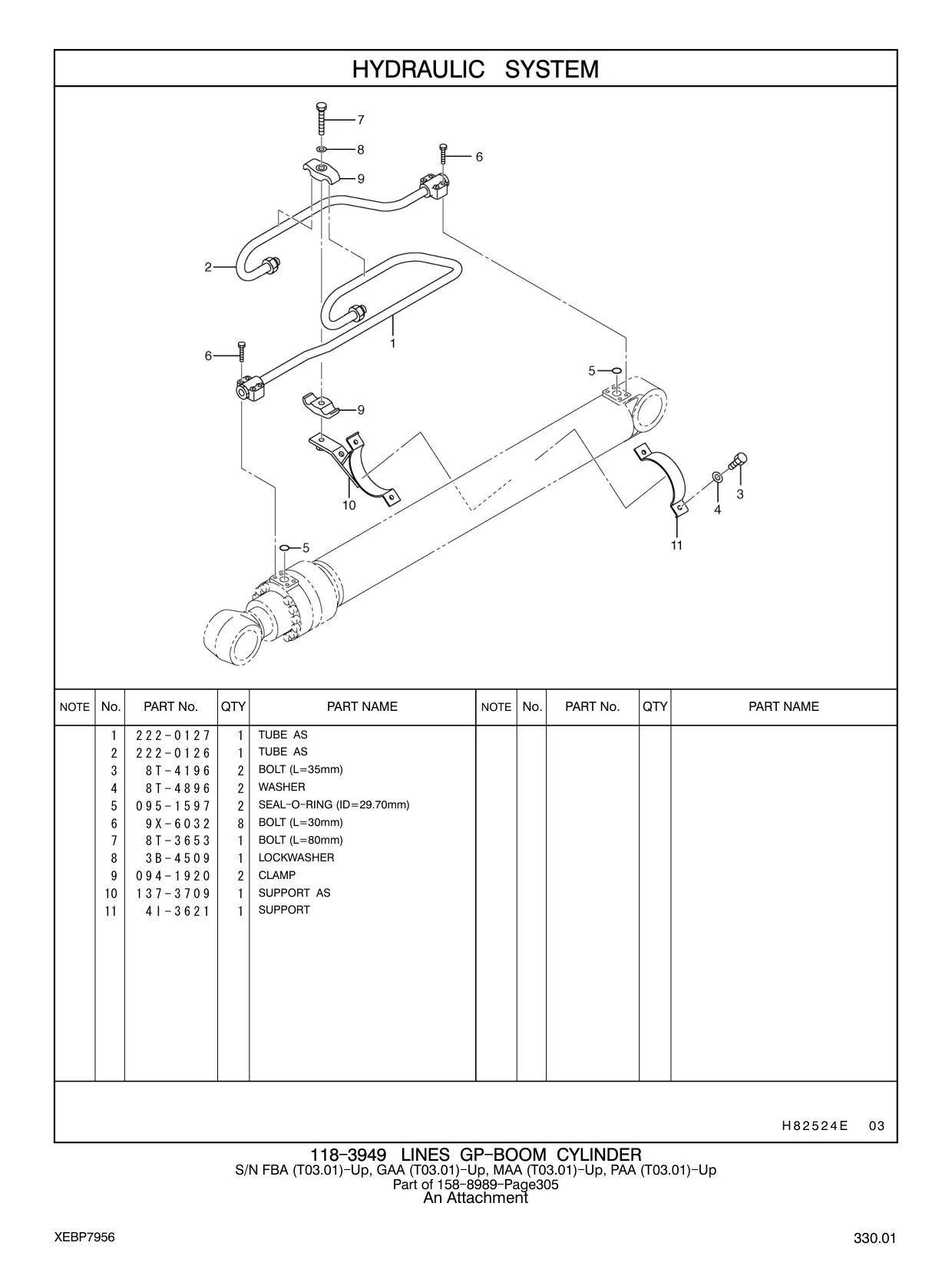

| 222-0127 |
TUBE AS
|
1 | 548 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 548 |
| 8T-4896 |
WASHER
|
2 | 548 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 548 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 548 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 548 |
| 3B-4509 |
LOCKWASHER
|
1 | 548 |
| 094-1920 |
CLAMP
|
2 | 548 |
| 137-3709 |
SUPPORT AS
|
1 | 548 |
| 4I-3621 |
SUPPORT
|
1 | 548 |
| 4I-3618 |
TUBE AS
|
1 | 440 |
| 4I-3619 |
TUBE AS
|
1 | 440 |
| 086-2746 |
CONNECTOR
|
2 | 440 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 440 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 440 |
| 8T-1160 |
BOLT (L=50mm)
|
8 | 440 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 440 |
| 3B-4509 |
LOCKWASHER
|
1 | 440 |
| 094-1920 |
CLAMP
|
2 | 440 |
| 137-3709 |
SUPPORT AS
|
1 | 440 |
| 4I-3621 |
SUPPORT
|
1 | 440 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 440 |
| 095-9397 |
LOCKWASHER
|
2 | 440 |
| 222-0127 |
TUBE AS
|
1 | 441 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 441 |
| 8T-4896 |
WASHER
|
2 | 441 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 441 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 441 |
| 8T-3653 |
BOLT (L=80mm)
|
1 | 441 |
| 3B-4509 |
LOCKWASHER
|
1 | 441 |
| 094-1920 |
CLAMP
|
2 | 441 |
| 137-3709 |
SUPPORT AS
|
1 | 441 |
| 4I-3621 |
SUPPORT
|
1 | 441 |
| 4I-3618 |
TUBE AS
|
1 | 358 |
| 4I-3619 |
TUBE AS
|
1 | 358 |
| 086-2746 |
CONNECTOR
|
2 | 358 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 358 |
