CAT 320C 222-0085 Parts Manual Diagram - NUT

Home › Parts Manual › CAT 320C › 222-0085

Part No.

222-0085

Name (EN)

NUT

Name (CN)

Qty

1 per assembly

Group

222-0084

System

HYDRAULIC SYSTEM

Source

CAT Official Parts Manual

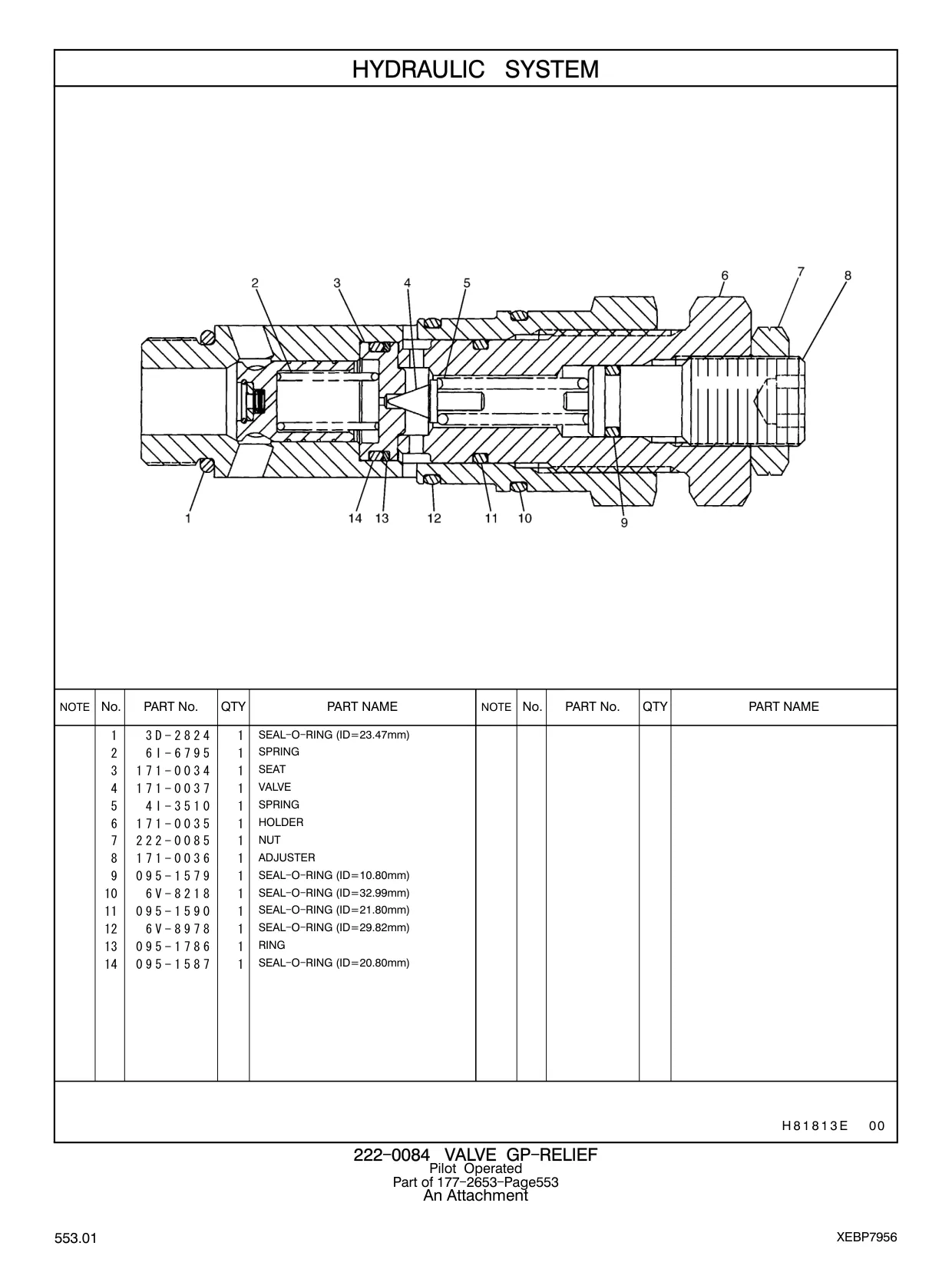

※ Click image to zoom · Page 895 of official CAT 320C parts manual

Part No.	Name	Qty	Page
3D-2824	SEAL - O - RING (ID=23.47mm)	1	895
6I-6795	SPRING	1	895
171-0034	SEAT	1	895
171-0037	VALVE	1	895
4I-3510	SPRING	1	895
171-0035	HOLDER	1	895
171-0036	ADJUSTER	1	895
095-1579	SEAL - O - RING (ID=10.80mm)	1	895
6V-8218	SEAL - O - RING (ID=32.99mm)	1	895
095-1590	SEAL - O - RING (ID=21.80mm)	1	895
6V-8978	SEAL - O - RING (ID=29.82mm)	1	895
095-1786	RING	1	895
095-1587	SEAL - O - RING (ID=20.80mm)	1	895
3D-2824	SEAL - O - RING (ID=23.47mm)	1	776
6I-6795	SPRING	1	776
171-0034	SEAT	1	776
171-0037	VALVE	1	776
4I-3510	SPRING	1	776
171-0035	HOLDER	1	776
171-0036	ADJUSTER	1	776
095-1579	SEAL - O - RING (ID=10.80mm)	1	776
6V-8218	SEAL - O - RING (ID=32.99mm)	1	776
095-1590	SEAL - O - RING (ID=21.80mm)	1	776
6V-8978	SEAL - O - RING (ID=29.82mm)	1	776
095-1786	RING	1	776
095-1587	SEAL - O - RING (ID=20.80mm)	1	776
3D-2824	SEAL - O - RING (ID=23.47mm)	1	588
6I-6795	SPRING	1	588
171-0034	SEAT	1	588
171-0037	VALVE	1	588
4I-3510	SPRING	1	588
171-0035	HOLDER	1	588
171-0036	ADJUSTER	1	588
095-1579	SEAL - O - RING (ID=10.80mm)	1	588
6V-8218	SEAL - O - RING (ID=32.99mm)	1	588
095-1590	SEAL - O - RING (ID=21.80mm)	1	588
6V-8978	SEAL - O - RING (ID=29.82mm)	1	588
095-1786	RING	1	588
095-1587	SEAL - O - RING (ID=20.80mm)	1	588
3D-2824	SEAL - O - RING (ID=23.47mm)	1	764
6I-6795	SPRING	1	764
171-0034	SEAT	1	764
171-0037	VALVE	1	764
4I-3510	SPRING	1	764
171-0035	HOLDER	1	764
171-0036	ADJUSTER	1	764
095-1579	SEAL - O - RING (ID=10.80mm)	1	764
6V-8218	SEAL - O - RING (ID=32.99mm)	1	764
095-1590	SEAL - O - RING (ID=21.80mm)	1	764
6V-8978	SEAL - O - RING (ID=29.82mm)	1	764
