CAT 320C 210-8107 Parts Manual Diagram - HOSE

Home › Parts Manual › CAT 320C › 210-8107

Part No.

210-8107

Name (EN)

HOSE

Name (CN)

Qty

1 per assembly

Group

204-0875

System

COOLING SYSTEM

Source

CAT Official Parts Manual

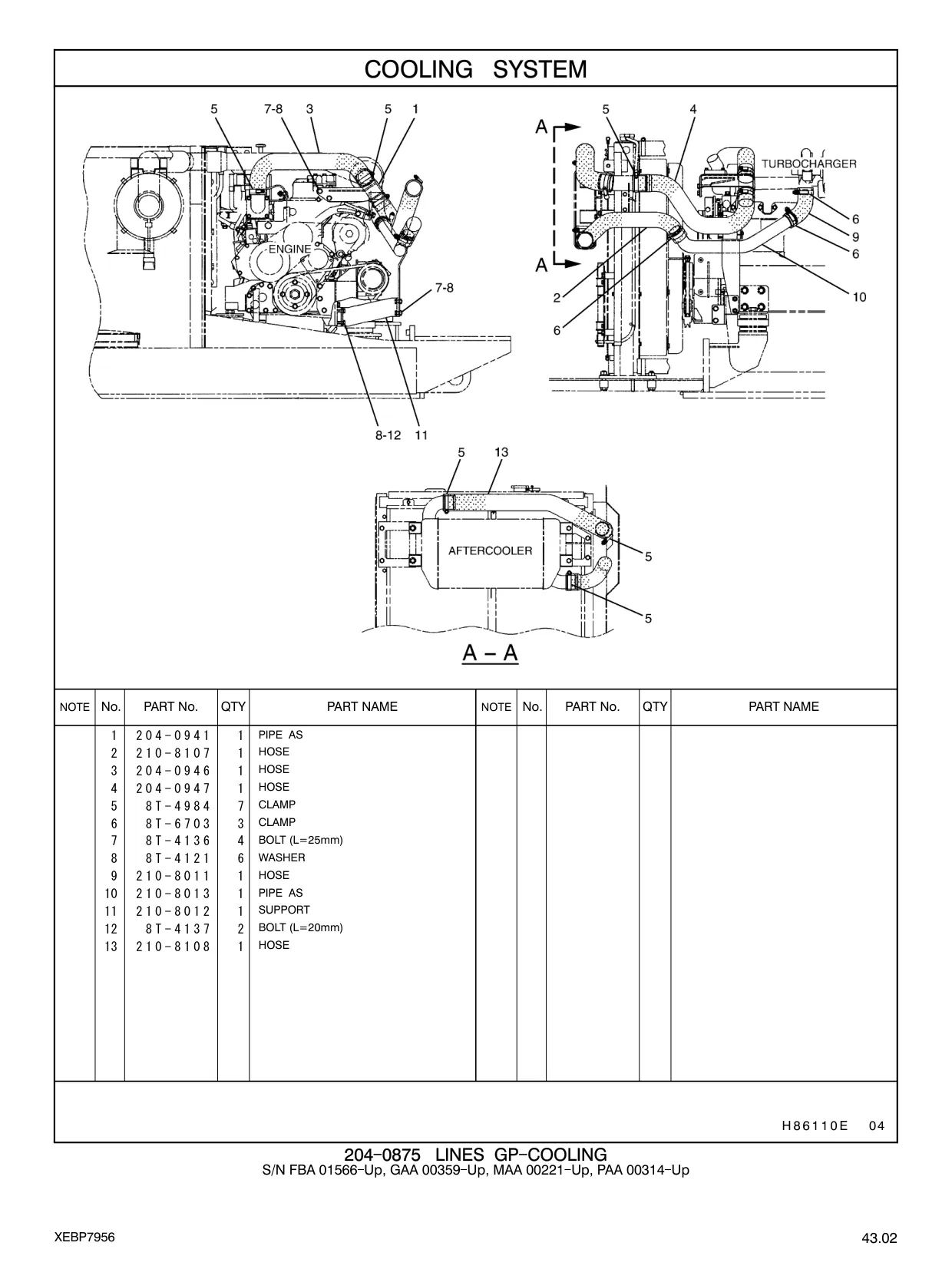

※ Click image to zoom · Page 68 of official CAT 320C parts manual

Part No.	Name	Qty	Page
204-0941	PIPE AS	1	66
204-1037	HOSE	1	66
204-0946	HOSE	1	66
204-0947	HOSE	1	66
8T-4984	CLAMP	5	66
8T-6703	CLAMP	3	66
8T-4136	BOLT (L=25mm)	2	66
8T-4121	WASHER	2	66
204-1036	HOSE	1	66
204-1038	PIPE	1	66
204-0941	PIPE AS	1	67
210-8010	HOSE	1	67
204-0946	HOSE	1	67
204-0947	HOSE	1	67
8T-4984	CLAMP	5	67
8T-6703	CLAMP	3	67
8T-4136	BOLT (L=25mm)	4	67
8T-4121	WASHER	6	67
210-8011	HOSE	1	67
210-8013	PIPE AS	1	67
210-8012	SUPPORT	1	67
8T-4137	BOLT (L=20mm)	2	67
204-0941	PIPE AS	1	68
204-0946	HOSE	1	68
204-0947	HOSE	1	68
8T-4984	CLAMP	7	68
8T-6703	CLAMP	3	68
8T-4136	BOLT (L=25mm)	4	68
8T-4121	WASHER	6	68
210-8011	HOSE	1	68
210-8013	PIPE AS	1	68
210-8012	SUPPORT	1	68
8T-4137	BOLT (L=20mm)	2	68
210-8108	HOSE	1	68
