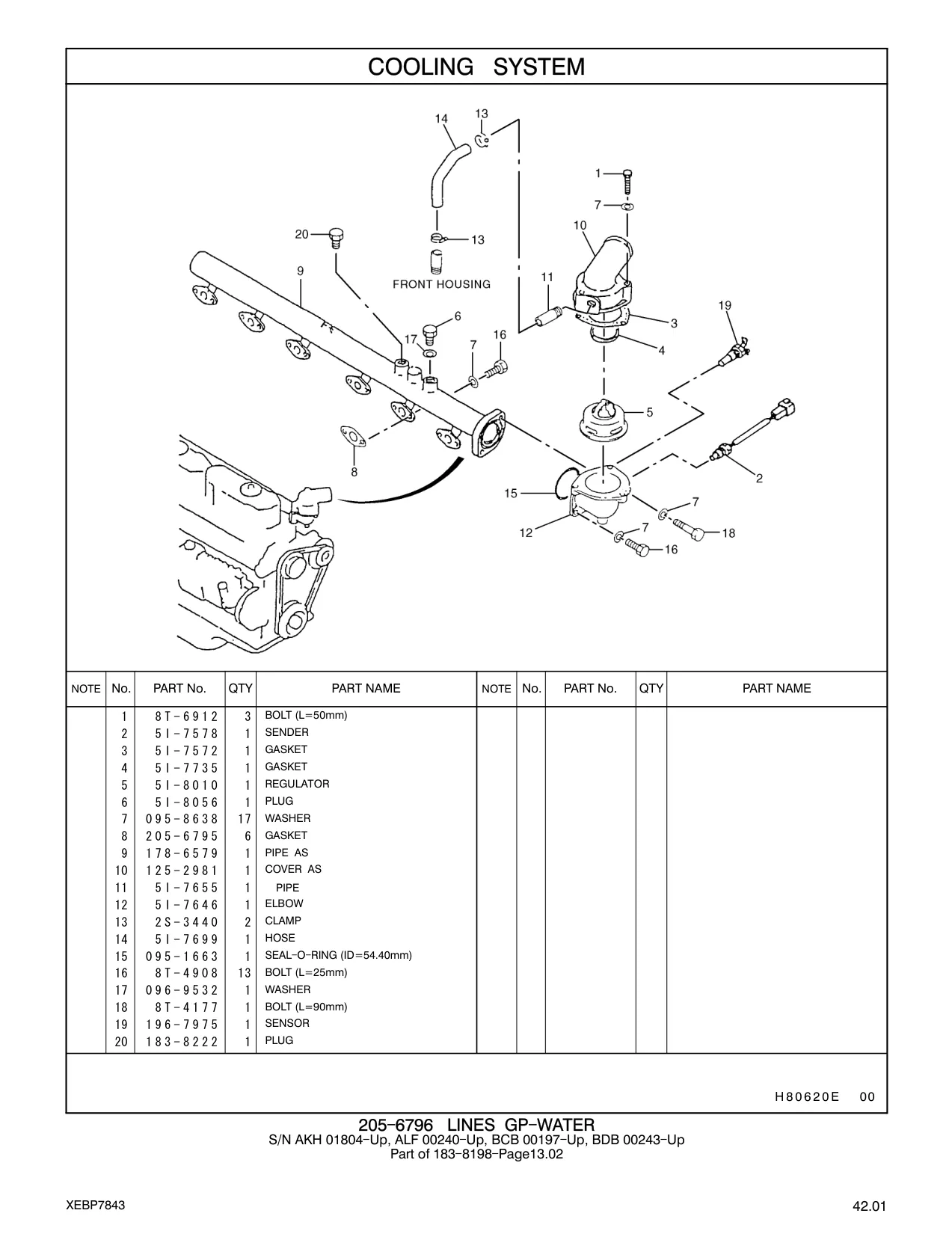

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 8T-6912 |
BOLT (L=50mm)
|
3 | 69 |
| 5I-7578 |
SENDER
|
1 | 69 |
| 5I-7572 |
GASKET
|
1 | 69 |
| 5I-7735 |
GASKET
|
1 | 69 |
| 5I-8010 |
REGULATOR
|
1 | 69 |
| 5I-8056 |
PLUG
|
1 | 69 |
| 095-8638 |
WASHER
|
17 | 69 |
| 178-6579 |
PIPE AS
|
1 | 69 |
| 125-2981 |
COVER AS
|
1 | 69 |
| 5I-7655 |
PIPE
|
1 | 69 |
| 5I-7646 |
ELBOW
|
1 | 69 |
| 2S-3440 |
CLAMP
|
2 | 69 |
| 5I-7699 |
HOSE
|
1 | 69 |
| 095-1663 |
SEAL - O - RING (ID=54.40mm)
|
1 | 69 |
| 8T-4908 |
BOLT (L=25mm)
|
13 | 69 |
| 096-9532 |
WASHER
|
1 | 69 |
| 8T-4177 |
BOLT (L=90mm)
|
1 | 69 |
| 196-7975 |
SENSOR
|
1 | 69 |
| 183-8222 |
PLUG
|
1 | 69 |
| 8T-6912 |
BOLT (L=50mm)
|
3 | 53 |
| 5I-7578 |
SENDER
|
1 | 53 |
| 5I-7572 |
GASKET
|
1 | 53 |
| 5I-7735 |
GASKET
|
1 | 53 |
| 5I-8010 |
REGULATOR
|
1 | 53 |
| 5I-8056 |
PLUG
|
1 | 53 |
| 095-8638 |
WASHER
|
17 | 53 |
| 178-6579 |
PIPE AS
|
1 | 53 |
| 125-2981 |
COVER AS
|
1 | 53 |
| 5I-7655 |
PIPE
|
1 | 53 |
| 5I-7646 |
ELBOW
|
1 | 53 |
| 2S-3440 |
CLAMP
|
2 | 53 |
| 5I-7699 |
HOSE
|
1 | 53 |
| 095-1663 |
SEAL - O - RING (ID=54.40mm)
|
1 | 53 |
| 8T-4908 |
BOLT (L=25mm)
|
13 | 53 |
| 096-9532 |
WASHER
|
1 | 53 |
| 8T-4177 |
BOLT (L=90mm)
|
1 | 53 |
| 196-7975 |
SENSOR
|
1 | 53 |
| 183-8222 |
PLUG
|
1 | 53 |
