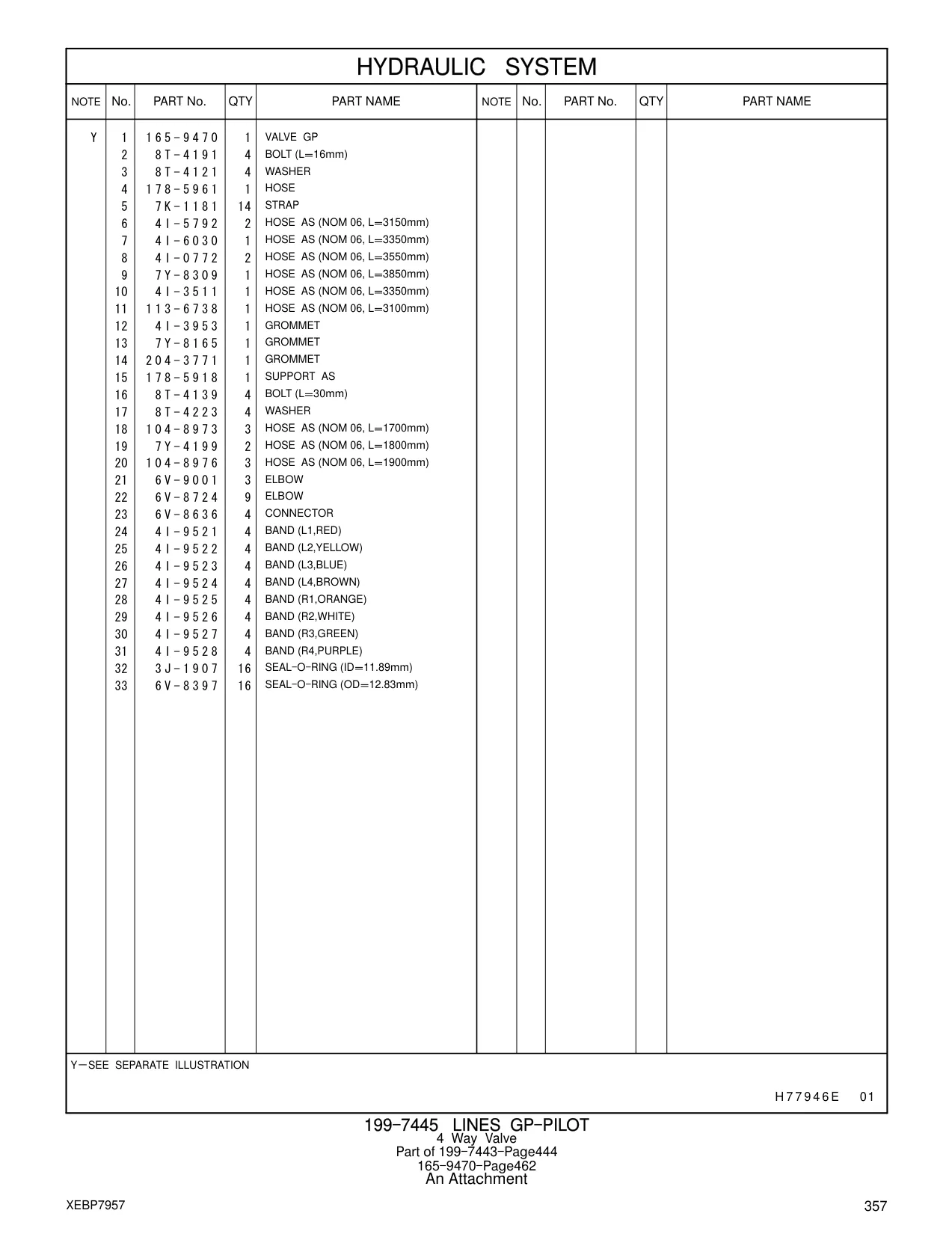

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 199-7443 |
199-7443
|
1 | 598 |
| 165-9470 |
165-9470
|
1 | 598 |
| 165-9470 |
VALVE GP
|
1 | 599 |
| 8T-4191 |
BOLT (L=16mm)
|
4 | 599 |
| 8T-4121 |
WASHER
|
4 | 599 |
| 178-5961 |
HOSE
|
1 | 599 |
| 7K-1181 |
STRAP
|
14 | 599 |
| 4I-5792 |
HOSE AS (NOM 06, L=3150mm)
|
2 | 599 |
| 4I-6030 |
HOSE AS (NOM 06, L=3350mm)
|
1 | 599 |
| 4I-0772 |
HOSE AS (NOM 06, L=3550mm)
|
2 | 599 |
| 7Y-8309 |
HOSE AS (NOM 06, L=3850mm)
|
1 | 599 |
| 4I-3511 |
HOSE AS (NOM 06, L=3350mm)
|
1 | 599 |
| 113-6738 |
HOSE AS (NOM 06, L=3100mm)
|
1 | 599 |
| 4I-3953 |
GROMMET
|
1 | 599 |
| 7Y-8165 |
GROMMET
|
1 | 599 |
| 178-5918 |
SUPPORT AS
|
1 | 599 |
| 8T-4139 |
BOLT (L=30mm)
|
4 | 599 |
| 8T-4223 |
WASHER
|
4 | 599 |
| 104-8973 |
HOSE AS (NOM 06, L=1700mm)
|
3 | 599 |
| 7Y-4199 |
HOSE AS (NOM 06, L=1800mm)
|
2 | 599 |
| 104-8976 |
HOSE AS (NOM 06, L=1900mm)
|
3 | 599 |
| 6V-9001 |
ELBOW
|
3 | 599 |
| 6V-8724 |
ELBOW
|
9 | 599 |
| 6V-8636 |
CONNECTOR
|
4 | 599 |
| 4I-9521 |
BAND (L1,RED)
|
4 | 599 |
| 4I-9522 |
BAND (L2,YELLOW)
|
4 | 599 |
| 4I-9523 |
BAND (L3,BLUE)
|
4 | 599 |
| 4I-9524 |
BAND (L4,BROWN)
|
4 | 599 |
| 4I-9525 |
BAND (R1,ORANGE)
|
4 | 599 |
| 4I-9526 |
BAND (R2,WHITE)
|
4 | 599 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 599 |
| 4I-9528 |
BAND (R4,PURPLE)
|
4 | 599 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
16 | 599 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
16 | 599 |
