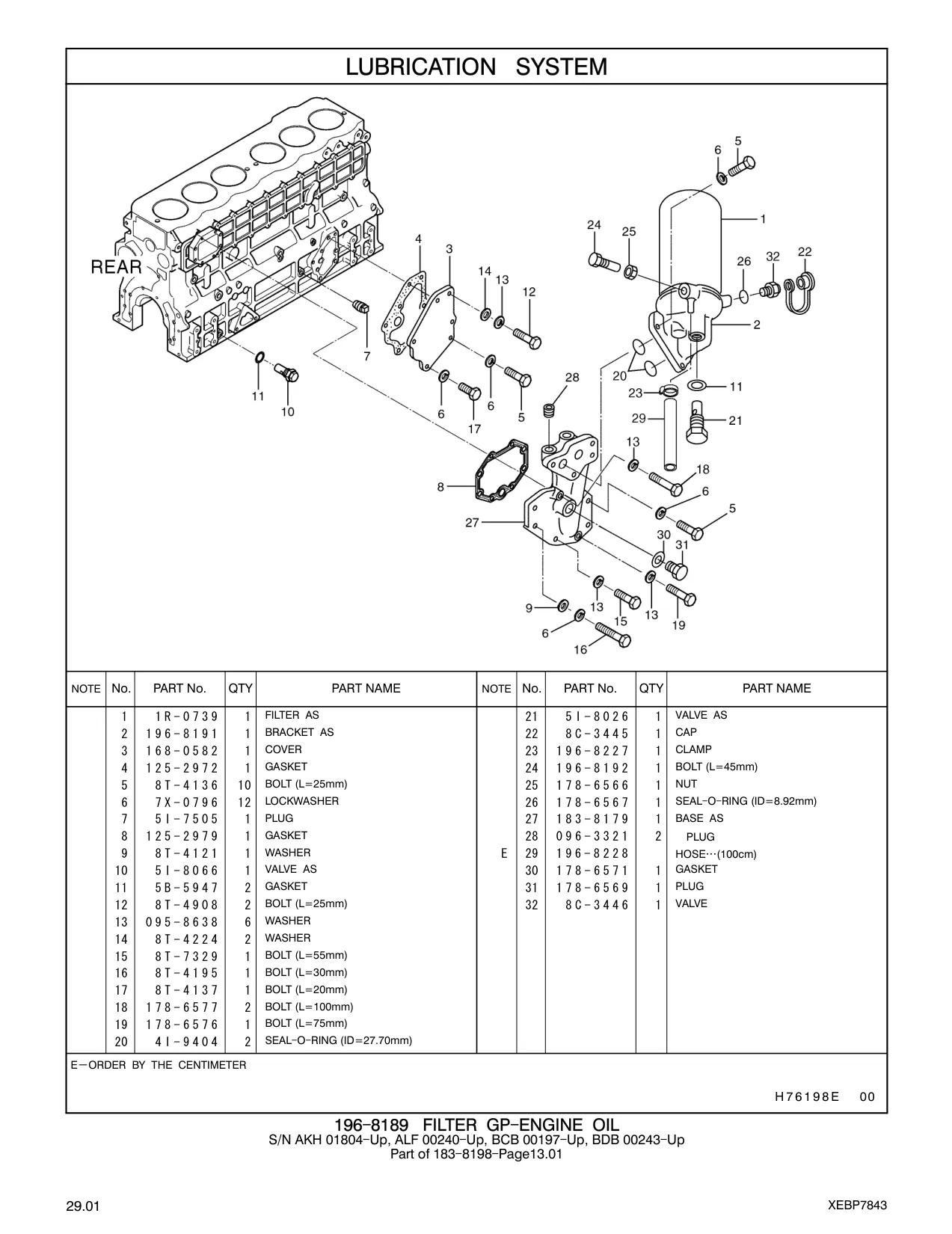

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 1R-0739 |
FILTER AS
|
1 | 40 |
| 5I-8026 |
VALVE AS
|
1 | 40 |
| 196-8191 |
BRACKET AS
|
1 | 40 |
| 8C-3445 |
CAP
|
1 | 40 |
| 168-0582 |
COVER
|
1 | 40 |
| 196-8227 |
CLAMP
|
1 | 40 |
| 125-2972 |
GASKET
|
1 | 40 |
| 196-8192 |
BOLT (L=45mm)
|
1 | 40 |
| 8T-4136 |
BOLT (L=25mm)
|
10 | 40 |
| 178-6566 |
NUT
|
1 | 40 |
| 7X-0796 |
LOCKWASHER
|
12 | 40 |
| 178-6567 |
SEAL - O - RING (ID=8.92mm)
|
1 | 40 |
| 5I-7505 |
PLUG
|
1 | 40 |
| 183-8179 |
BASE AS
|
1 | 40 |
| 125-2979 |
GASKET
|
1 | 40 |
| 096-3321 |
PLUG
|
2 | 40 |
| 8T-4121 |
WASHER
|
1 | 40 |
| 5I-8066 |
VALVE AS
|
1 | 40 |
| 178-6571 |
GASKET
|
1 | 40 |
| 5B-5947 |
GASKET
|
2 | 40 |
| 178-6569 |
PLUG
|
1 | 40 |
| 8T-4908 |
BOLT (L=25mm)
|
2 | 40 |
| 095-8638 |
WASHER
|
6 | 40 |
| 8T-4224 |
WASHER
|
2 | 40 |
| 8T-7329 |
BOLT (L=55mm)
|
1 | 40 |
| 8T-4195 |
BOLT (L=30mm)
|
1 | 40 |
| 8T-4137 |
BOLT (L=20mm)
|
1 | 40 |
| 178-6577 |
BOLT (L=100mm)
|
2 | 40 |
| 178-6576 |
BOLT (L=75mm)
|
1 | 40 |
| 4I-9404 |
SEAL - O - RING (ID=27.70mm)
|
2 | 40 |
| 8C-3446 |
VALVE H 7 6 1 9 8 E 00
|
1 | 40 |
| 2A-5222 |
WASHER
|
2 | 42 |
| 5I-7623 |
BOLT (L=20mm)
|
1 | 42 |
| 5I-8060 |
PIPE
|
1 | 42 |
| 5I-7689 |
GASKET
|
1 | 42 |
| 096-2500 |
WASHER
|
2 | 42 |
| 5C-9553 |
BOLT (L=16mm)
|
2 | 42 |
| 5I-7557 |
PIPE
|
1 | 42 |
| 5I-7561 |
GASKET
|
1 | 42 |
| 5I-8058 |
CONNECTOR
|
1 | 42 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 42 |
| 095-8638 |
WASHER
|
2 | 42 |
| 1R-0739 |
FILTER AS
|
1 | 36 |
| 5I-8026 |
VALVE AS
|
1 | 36 |
| 196-8191 |
BRACKET AS
|
1 | 36 |
| 8C-3445 |
CAP
|
1 | 36 |
| 168-0582 |
COVER
|
1 | 36 |
| 196-8227 |
CLAMP
|
1 | 36 |
| 125-2972 |
GASKET
|
1 | 36 |
| 196-8192 |
BOLT (L=45mm)
|
1 | 36 |
