| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 162-6176 |
162-6176
|
1 | 376 |
| 204-2683 |
204-2683
|
1 | 376 |
| 204-2683 |
HEAD GP
|
1 | 377 |
| 177-2470 |
COVER
|
1 | 377 |
| 7X-2557 |
BOLT (L=140mm)
|
1 | 377 |
| 177-2471 |
COVER
|
1 | 377 |
| 8T-4175 |
BOLT (L=90mm)
|
2 | 377 |
| 204-2684 |
HEAD GP
|
1 | 377 |
| 8T-4176 |
BOLT (L=90mm)
|
2 | 377 |
| 8T-4140 |
BOLT (L=60mm)
|
4 | 377 |
| 094-1882 |
PLUG
|
11 | 377 |
| 200-3333 |
BLOCK
|
1 | 377 |
| 129-7979 |
DOWEL
|
4 | 377 |
| 9S-4185 |
PLUG
|
2 | 377 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 377 |
| 8T-4136 |
BOLT (L=25mm)
|
8 | 377 |
| 173-3371 |
BODY
|
1 | 377 |
| 150-5782 |
COVER
|
2 | 377 |
| 8T-4139 |
BOLT (L=30mm)
|
10 | 377 |
| 129-7863 |
COVER
|
1 | 377 |
| 129-7857 |
GASKET
|
1 | 377 |
| 179-9763 |
FLANGE
|
1 | 377 |
| 189-9763 |
SEAL - O - RING (ID=9.80mm)
|
6 | 377 |
| 095-7419 |
SCREW
|
4 | 377 |
| 162-6176 |
162-6176
|
1 | 378 |

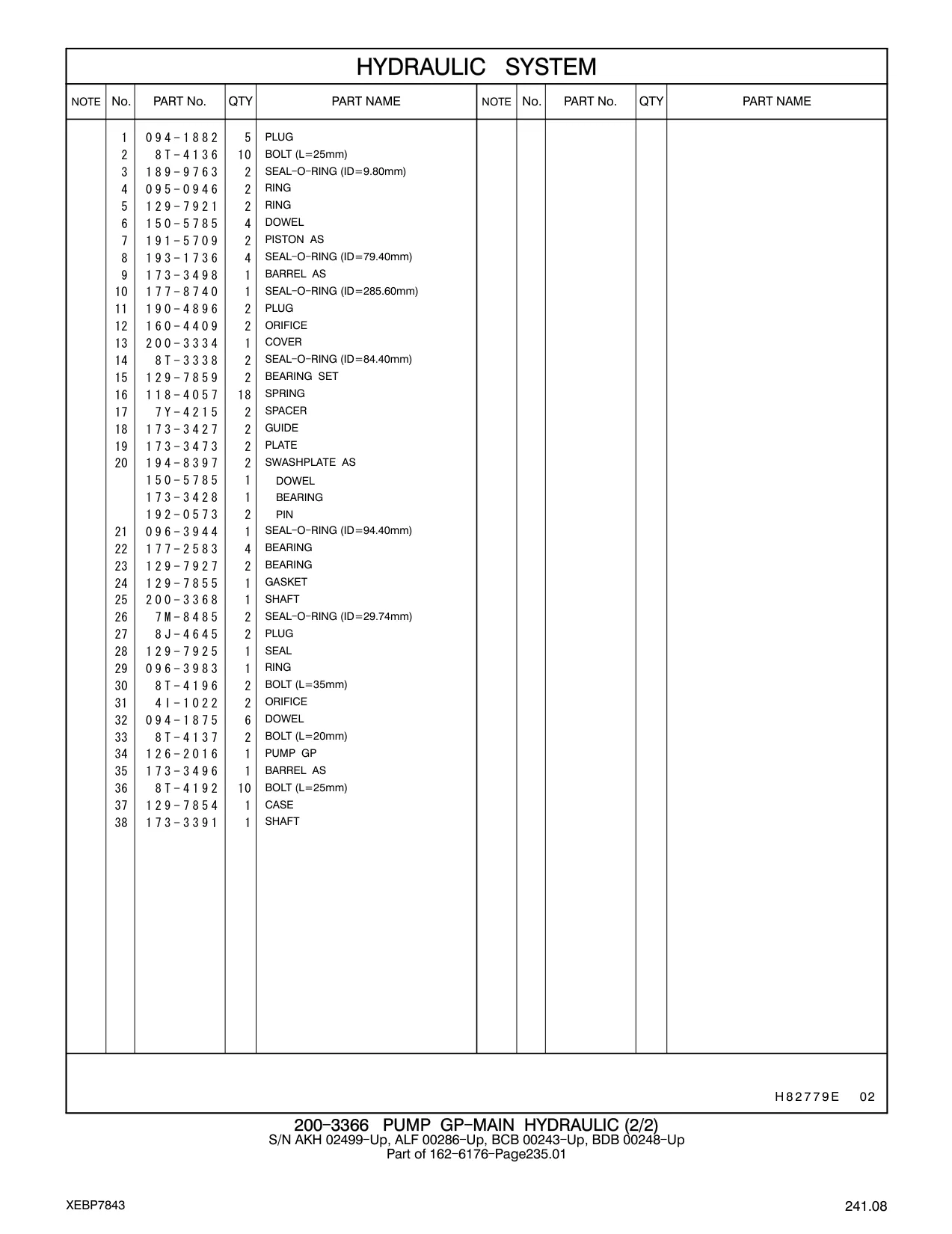

| 094-1882 |
PLUG
|
5 | 379 |
| 8T-4136 |
BOLT (L=25mm)
|
10 | 379 |
| 189-9763 |
SEAL - O - RING (ID=9.80mm)
|
2 | 379 |
| 095-0946 |
RING
|
2 | 379 |
| 129-7921 |
RING
|
2 | 379 |
| 150-5785 |
DOWEL
|
4 | 379 |
| 191-5709 |
PISTON AS
|
2 | 379 |
| 193-1736 |
SEAL - O - RING (ID=79.40mm)
|
4 | 379 |
| 173-3498 |
BARREL AS
|
1 | 379 |
| 177-8740 |
SEAL - O - RING (ID=285.60mm)
|
1 | 379 |
| 190-4896 |
PLUG
|
2 | 379 |
| 160-4409 |
ORIFICE
|
2 | 379 |
| 200-3334 |
COVER
|
1 | 379 |
| 8T-3338 |
SEAL - O - RING (ID=84.40mm)
|
2 | 379 |
| 129-7859 |
BEARING SET
|
2 | 379 |
| 118-4057 |
SPRING
|
18 | 379 |
| 7Y-4215 |
SPACER
|
2 | 379 |
| 173-3427 |
GUIDE
|
2 | 379 |
| 173-3473 |
PLATE
|
2 | 379 |
| 150-5785 |
DOWEL
|
1 | 379 |
| 173-3428 |
BEARING
|
1 | 379 |
| 192-0573 |
PIN
|
2 | 379 |
| 096-3944 |
SEAL - O - RING (ID=94.40mm)
|
1 | 379 |
| 177-2583 |
BEARING
|
4 | 379 |
| 129-7927 |
BEARING
|
2 | 379 |
