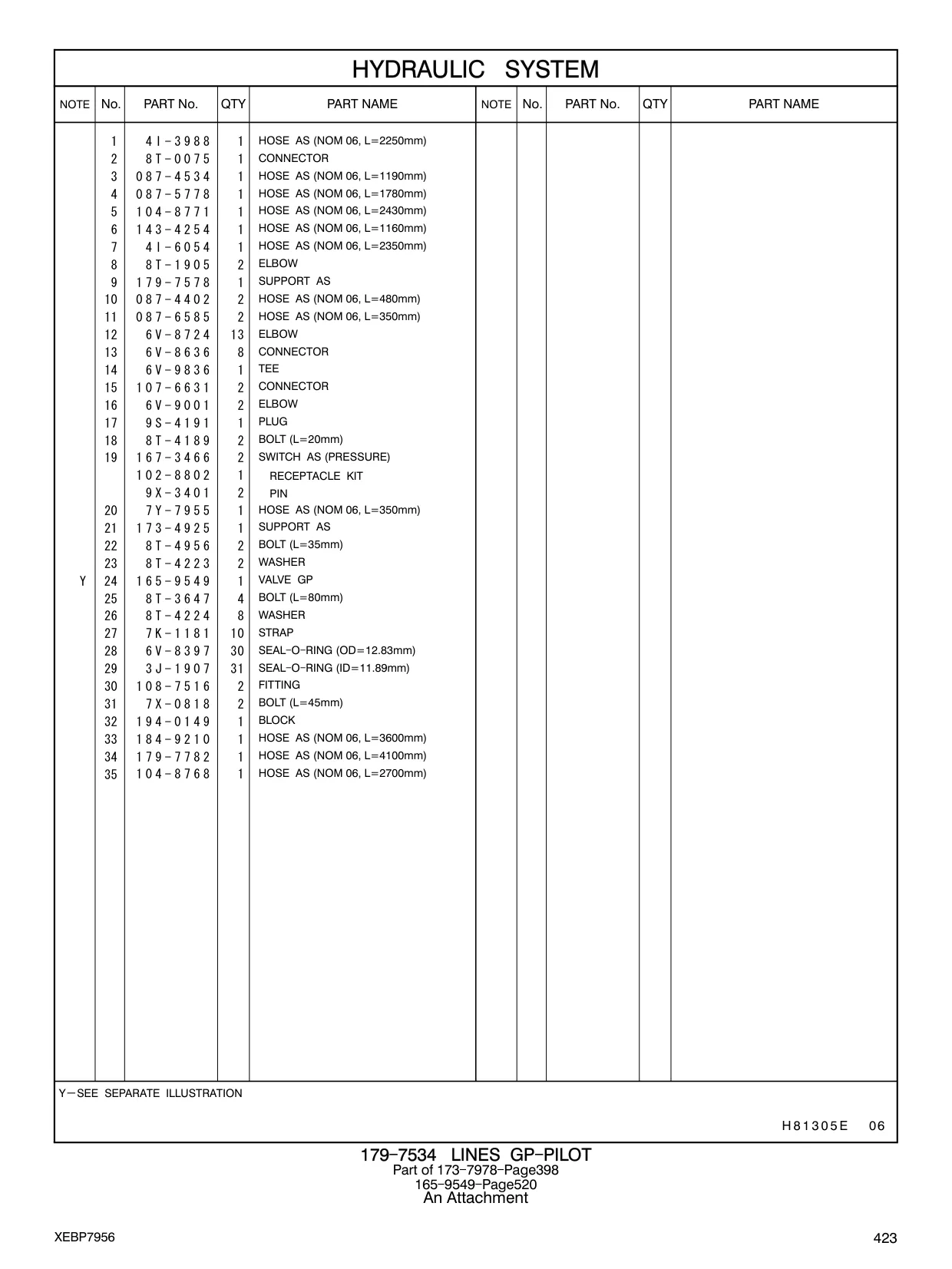

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 173-7978 |
173-7978
|
1 | 681 |
| 165-9549 |
165-9549
|
1 | 681 |
| 4I-3988 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 682 |
| 8T-0075 |
CONNECTOR
|
1 | 682 |
| 087-4534 |
HOSE AS (NOM 06, L=1190mm)
|
1 | 682 |
| 087-5778 |
HOSE AS (NOM 06, L=1780mm)
|
1 | 682 |
| 104-8771 |
HOSE AS (NOM 06, L=2430mm)
|
1 | 682 |
| 143-4254 |
HOSE AS (NOM 06, L=1160mm)
|
1 | 682 |
| 4I-6054 |
HOSE AS (NOM 06, L=2350mm)
|
1 | 682 |
| 8T-1905 |
ELBOW
|
2 | 682 |
| 179-7578 |
SUPPORT AS
|
1 | 682 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 682 |
| 087-6585 |
HOSE AS (NOM 06, L=350mm)
|
2 | 682 |
| 6V-8724 |
ELBOW
|
13 | 682 |
| 6V-8636 |
CONNECTOR
|
8 | 682 |
| 6V-9836 |
TEE
|
1 | 682 |
| 107-6631 |
CONNECTOR
|
2 | 682 |
| 6V-9001 |
ELBOW
|
2 | 682 |
| 9S-4191 |
PLUG
|
1 | 682 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 682 |
| 167-3466 |
SWITCH AS (PRESSURE)
|
2 | 682 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 682 |
| 9X-3401 |
PIN
|
2 | 682 |
| 7Y-7955 |
HOSE AS (NOM 06, L=350mm)
|
1 | 682 |
| 173-4925 |
SUPPORT AS
|
1 | 682 |
| 8T-4956 |
BOLT (L=35mm)
|
2 | 682 |
| 8T-4223 |
WASHER
|
2 | 682 |
| 165-9549 |
VALVE GP
|
1 | 682 |
| 8T-3647 |
BOLT (L=80mm)
|
4 | 682 |
| 8T-4224 |
WASHER
|
8 | 682 |
| 7K-1181 |
STRAP
|
10 | 682 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
30 | 682 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
31 | 682 |
| 108-7516 |
FITTING
|
2 | 682 |
| 7X-0818 |
BOLT (L=45mm)
|
2 | 682 |
| 184-9210 |
HOSE AS (NOM 06, L=3600mm)
|
1 | 682 |
| 179-7782 |
HOSE AS (NOM 06, L=4100mm)
|
1 | 682 |
| 104-8768 |
HOSE AS (NOM 06, L=2700mm)
|
1 | 682 |
| 173-7978 |
173-7978
|
1 | 578 |
| 165-9549 |
165-9549
|
1 | 578 |
| 4I-3988 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 579 |
| 8T-0075 |
CONNECTOR
|
1 | 579 |
| 087-4534 |
HOSE AS (NOM 06, L=1190mm)
|
1 | 579 |
| 087-5778 |
HOSE AS (NOM 06, L=1780mm)
|
1 | 579 |
| 104-8771 |
HOSE AS (NOM 06, L=2430mm)
|
1 | 579 |
| 143-4254 |
HOSE AS (NOM 06, L=1160mm)
|
1 | 579 |
| 4I-6054 |
HOSE AS (NOM 06, L=2350mm)
|
1 | 579 |
| 8T-1905 |
ELBOW
|
2 | 579 |
| 179-7578 |
SUPPORT AS
|
1 | 579 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 579 |
