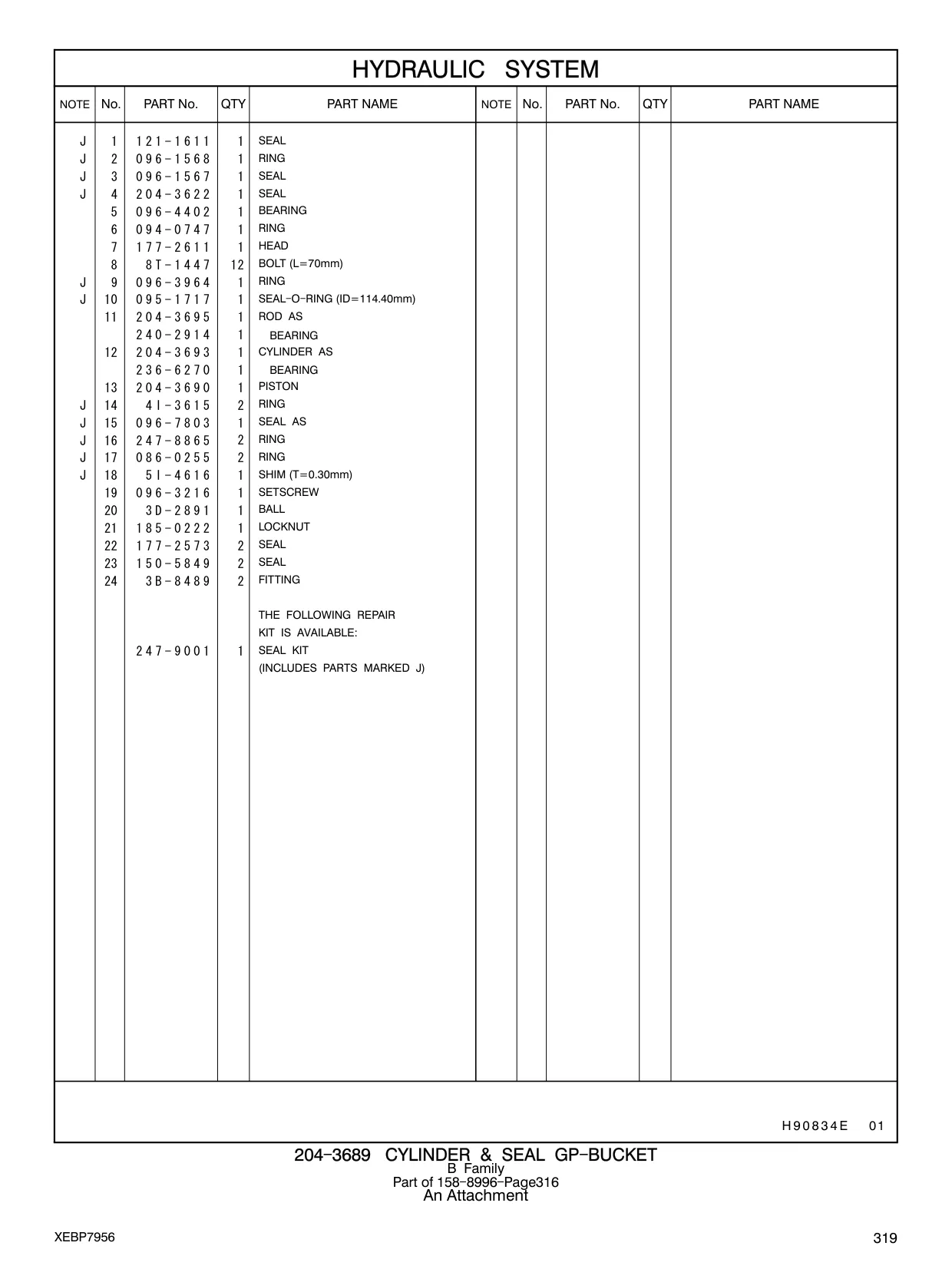

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 158-8996 |
158-8996
|
1 | 527 |
| 121-1611 |
SEAL
|
1 | 528 |
| 096-1568 |
RING
|
1 | 528 |
| 096-1567 |
SEAL
|
1 | 528 |
| 204-3622 |
SEAL
|
1 | 528 |
| 096-4402 |
BEARING
|
1 | 528 |
| 094-0747 |
RING
|
1 | 528 |
| 177-2611 |
HEAD
|
1 | 528 |
| 8T-1447 |
BOLT (L=70mm)
|
12 | 528 |
| 096-3964 |
RING
|
1 | 528 |
| 095-1717 |
SEAL - O - RING (ID=114.40mm)
|
1 | 528 |
| 204-3695 |
ROD AS
|
1 | 528 |
| 240-2914 |
BEARING
|
1 | 528 |
| 204-3693 |
CYLINDER AS
|
1 | 528 |
| 236-6270 |
BEARING
|
1 | 528 |
| 204-3690 |
PISTON
|
1 | 528 |
| 4I-3615 |
RING
|
2 | 528 |
| 096-7803 |
SEAL AS
|
1 | 528 |
| 247-8865 |
RING
|
2 | 528 |
| 086-0255 |
RING
|
2 | 528 |
| 5I-4616 |
SHIM (T=0.30mm)
|
1 | 528 |
| 096-3216 |
SETSCREW
|
1 | 528 |
| 3D-2891 |
BALL
|
1 | 528 |
| 177-2573 |
SEAL
|
2 | 528 |
| 150-5849 |
SEAL
|
2 | 528 |
| 3B-8489 |
FITTING THE FOLLOWING REPAIR KIT IS AVAILABLE:
|
2 | 528 |
| 247-9001 |
SEAL KIT (INCLUDES PARTS MARKED J)
|
1 | 528 |
| 158-8996 |
158-8996
|
1 | 428 |
| 121-1611 |
SEAL
|
1 | 429 |
| 096-1568 |
RING
|
1 | 429 |
| 096-1567 |
SEAL
|
1 | 429 |
| 204-3622 |
SEAL
|
1 | 429 |
| 096-4402 |
BEARING
|
1 | 429 |
| 094-0747 |
RING
|
1 | 429 |
| 177-2611 |
HEAD
|
1 | 429 |
| 8T-1447 |
BOLT (L=70mm)
|
12 | 429 |
| 096-3964 |
RING
|
1 | 429 |
| 095-1717 |
SEAL - O - RING (ID=114.40mm)
|
1 | 429 |
| 204-3695 |
ROD AS
|
1 | 429 |
| 240-2914 |
BEARING
|
1 | 429 |
| 204-3693 |
CYLINDER AS
|
1 | 429 |
| 236-6270 |
BEARING
|
1 | 429 |
| 204-3690 |
PISTON
|
1 | 429 |
| 4I-3615 |
RING
|
2 | 429 |
| 096-7803 |
SEAL AS
|
1 | 429 |
| 126-1936 |
RING
|
2 | 429 |
| 086-0255 |
RING
|
2 | 429 |
| 5I-4616 |
SHIM (T=0.30mm)
|
1 | 429 |
| 096-3216 |
SETSCREW
|
1 | 429 |
| 3D-2891 |
BALL
|
1 | 429 |
