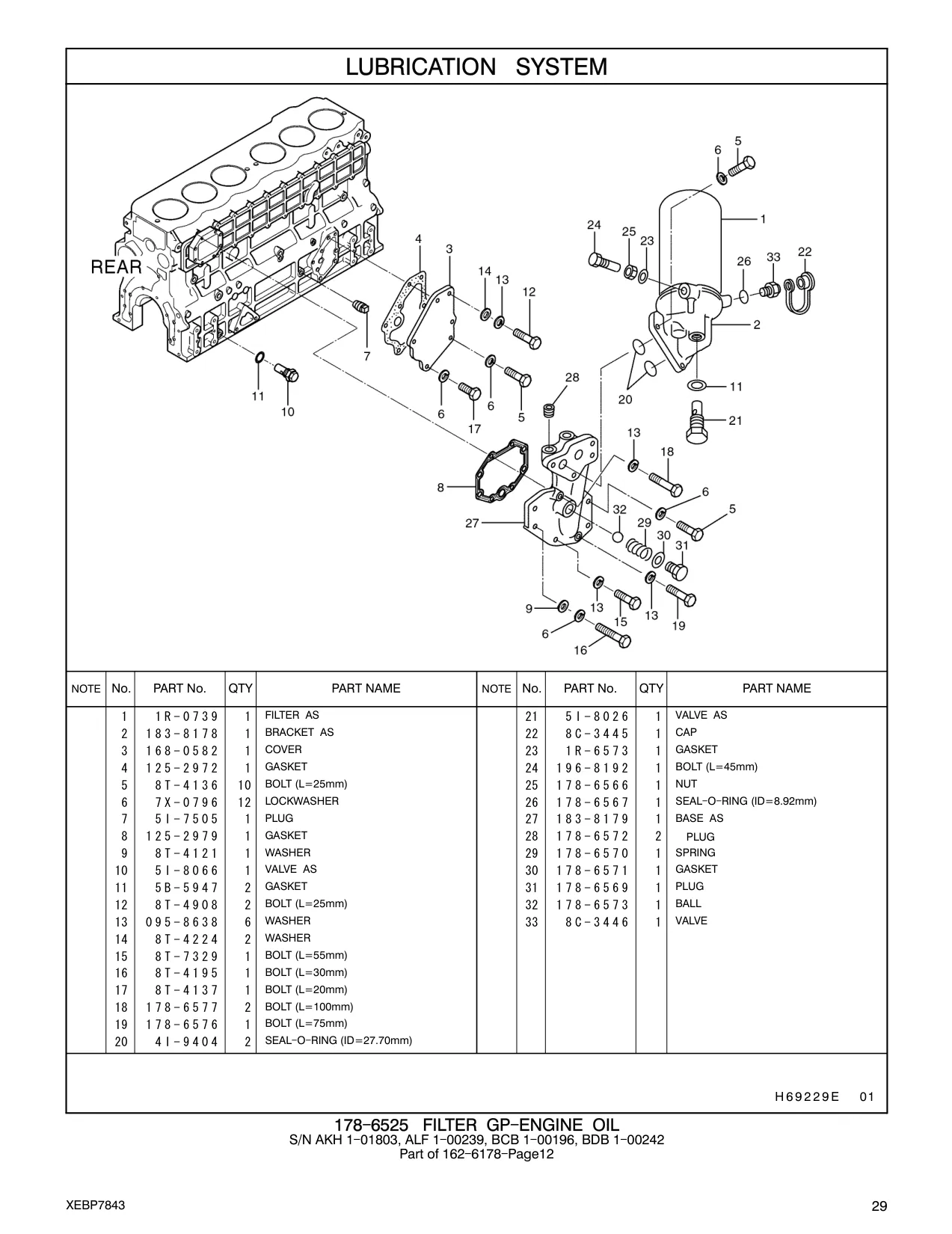

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 1R-0739 |
FILTER AS
|
1 | 39 |
| 5I-8026 |
VALVE AS
|
1 | 39 |
| 183-8178 |
BRACKET AS
|
1 | 39 |
| 8C-3445 |
CAP
|
1 | 39 |
| 168-0582 |
COVER
|
1 | 39 |
| 1R-6573 |
GASKET
|
1 | 39 |
| 125-2972 |
GASKET
|
1 | 39 |
| 196-8192 |
BOLT (L=45mm)
|
1 | 39 |
| 8T-4136 |
BOLT (L=25mm)
|
10 | 39 |
| 178-6566 |
NUT
|
1 | 39 |
| 7X-0796 |
LOCKWASHER
|
12 | 39 |
| 178-6567 |
SEAL - O - RING (ID=8.92mm)
|
1 | 39 |
| 5I-7505 |
PLUG
|
1 | 39 |
| 183-8179 |
BASE AS
|
1 | 39 |
| 125-2979 |
GASKET
|
1 | 39 |
| 8T-4121 |
WASHER
|
1 | 39 |
| 178-6570 |
SPRING
|
1 | 39 |
| 5I-8066 |
VALVE AS
|
1 | 39 |
| 178-6571 |
GASKET
|
1 | 39 |
| 5B-5947 |
GASKET
|
2 | 39 |
| 178-6569 |
PLUG
|
1 | 39 |
| 8T-4908 |
BOLT (L=25mm)
|
2 | 39 |
| 178-6573 |
BALL
|
1 | 39 |
| 095-8638 |
WASHER
|
6 | 39 |
| 8T-4224 |
WASHER
|
2 | 39 |
| 8T-7329 |
BOLT (L=55mm)
|
1 | 39 |
| 8T-4195 |
BOLT (L=30mm)
|
1 | 39 |
| 8T-4137 |
BOLT (L=20mm)
|
1 | 39 |
| 178-6577 |
BOLT (L=100mm)
|
2 | 39 |
| 178-6576 |
BOLT (L=75mm)
|
1 | 39 |
| 4I-9404 |
SEAL - O - RING (ID=27.70mm)
|
2 | 39 |
| 8C-3446 |
VALVE H 6 9 2 2 9 E 01
|
1 | 39 |
| 1R-0739 |
FILTER AS
|
1 | 35 |
| 5I-8026 |
VALVE AS
|
1 | 35 |
| 183-8178 |
BRACKET AS
|
1 | 35 |
| 8C-3445 |
CAP
|
1 | 35 |
| 168-0582 |
COVER
|
1 | 35 |
| 1R-6573 |
GASKET
|
1 | 35 |
| 125-2972 |
GASKET
|
1 | 35 |
| 196-8192 |
BOLT (L=45mm)
|
1 | 35 |
| 8T-4136 |
BOLT (L=25mm)
|
10 | 35 |
| 178-6566 |
NUT
|
1 | 35 |
| 7X-0796 |
LOCKWASHER
|
12 | 35 |
| 178-6567 |
SEAL - O - RING (ID=8.92mm)
|
1 | 35 |
| 5I-7505 |
PLUG
|
1 | 35 |
| 183-8179 |
BASE AS
|
1 | 35 |
| 125-2979 |
GASKET
|
1 | 35 |
| 8T-4121 |
WASHER
|
1 | 35 |
| 178-6570 |
SPRING
|
1 | 35 |
| 5I-8066 |
VALVE AS
|
1 | 35 |
