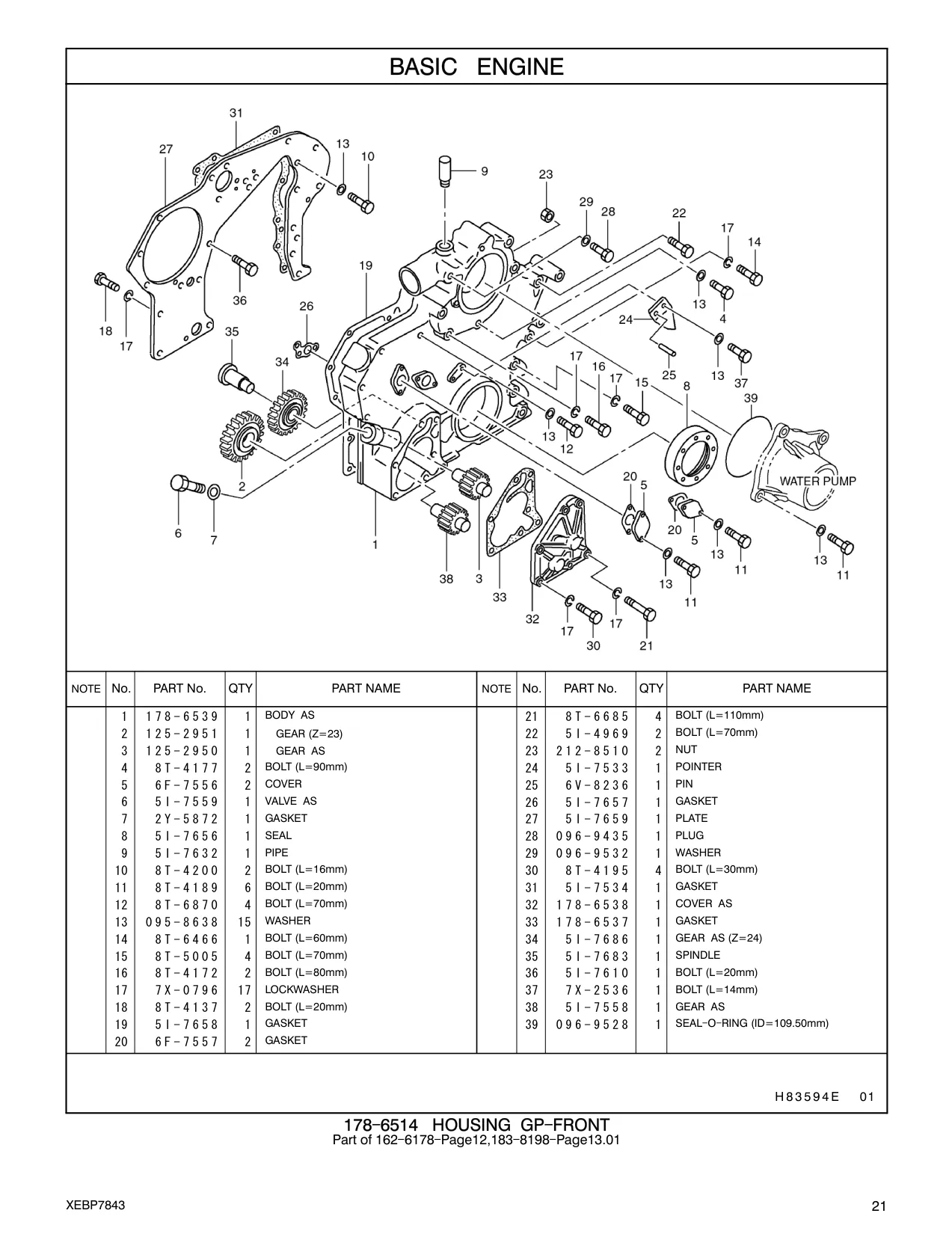

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 8T-6685 |
BOLT (L=110mm)
|
4 | 29 |
| 125-2951 |
GEAR (Z=23)
|
1 | 29 |
| 5I-4969 |
BOLT (L=70mm)
|
2 | 29 |
| 125-2950 |
GEAR AS
|
1 | 29 |
| 212-8510 |
NUT
|
2 | 29 |
| 8T-4177 |
BOLT (L=90mm)
|
2 | 29 |
| 5I-7533 |
POINTER
|
1 | 29 |
| 6F-7556 |
COVER
|
2 | 29 |
| 6V-8236 |
PIN
|
1 | 29 |
| 5I-7559 |
VALVE AS
|
1 | 29 |
| 5I-7657 |
GASKET
|
1 | 29 |
| 2Y-5872 |
GASKET
|
1 | 29 |
| 5I-7659 |
PLATE
|
1 | 29 |
| 5I-7656 |
SEAL
|
1 | 29 |
| 096-9435 |
PLUG
|
1 | 29 |
| 5I-7632 |
PIPE
|
1 | 29 |
| 096-9532 |
WASHER
|
1 | 29 |
| 8T-4200 |
BOLT (L=16mm)
|
2 | 29 |
| 8T-4195 |
BOLT (L=30mm)
|
4 | 29 |
| 8T-4189 |
BOLT (L=20mm)
|
6 | 29 |
| 5I-7534 |
GASKET
|
1 | 29 |
| 8T-6870 |
BOLT (L=70mm)
|
4 | 29 |
| 178-6538 |
COVER AS
|
1 | 29 |
| 095-8638 |
WASHER
|
15 | 29 |
| 178-6537 |
GASKET
|
1 | 29 |
| 8T-6466 |
BOLT (L=60mm)
|
1 | 29 |
| 5I-7686 |
GEAR AS (Z=24)
|
1 | 29 |
| 8T-5005 |
BOLT (L=70mm)
|
4 | 29 |
| 5I-7683 |
SPINDLE
|
1 | 29 |
| 8T-4172 |
BOLT (L=80mm)
|
2 | 29 |
| 5I-7610 |
BOLT (L=20mm)
|
1 | 29 |
| 7X-0796 |
LOCKWASHER
|
17 | 29 |
| 7X-2536 |
BOLT (L=14mm)
|
1 | 29 |
| 8T-4137 |
BOLT (L=20mm)
|
2 | 29 |
| 5I-7558 |
GEAR AS
|
1 | 29 |
| 5I-7658 |
GASKET
|
1 | 29 |
| 6F-7557 |
GASKET
|
2 | 29 |
| 096-9528 |
SEAL - O - RING (ID=109.50mm) H 8 3 5 9 4 E 01
|
1 | 29 |
| 8T-6685 |
BOLT (L=110mm)
|
4 | 25 |
| 125-2951 |
GEAR (Z=23)
|
1 | 25 |
| 5I-4969 |
BOLT (L=70mm)
|
2 | 25 |
| 125-2950 |
GEAR AS
|
1 | 25 |
| 212-8510 |
NUT
|
2 | 25 |
| 8T-4177 |
BOLT (L=90mm)
|
2 | 25 |
| 5I-7533 |
POINTER
|
1 | 25 |
| 6F-7556 |
COVER
|
2 | 25 |
| 6V-8236 |
PIN
|
1 | 25 |
| 5I-7559 |
VALVE AS
|
1 | 25 |
| 5I-7657 |
GASKET
|
1 | 25 |
| 2Y-5872 |
GASKET
|
1 | 25 |
