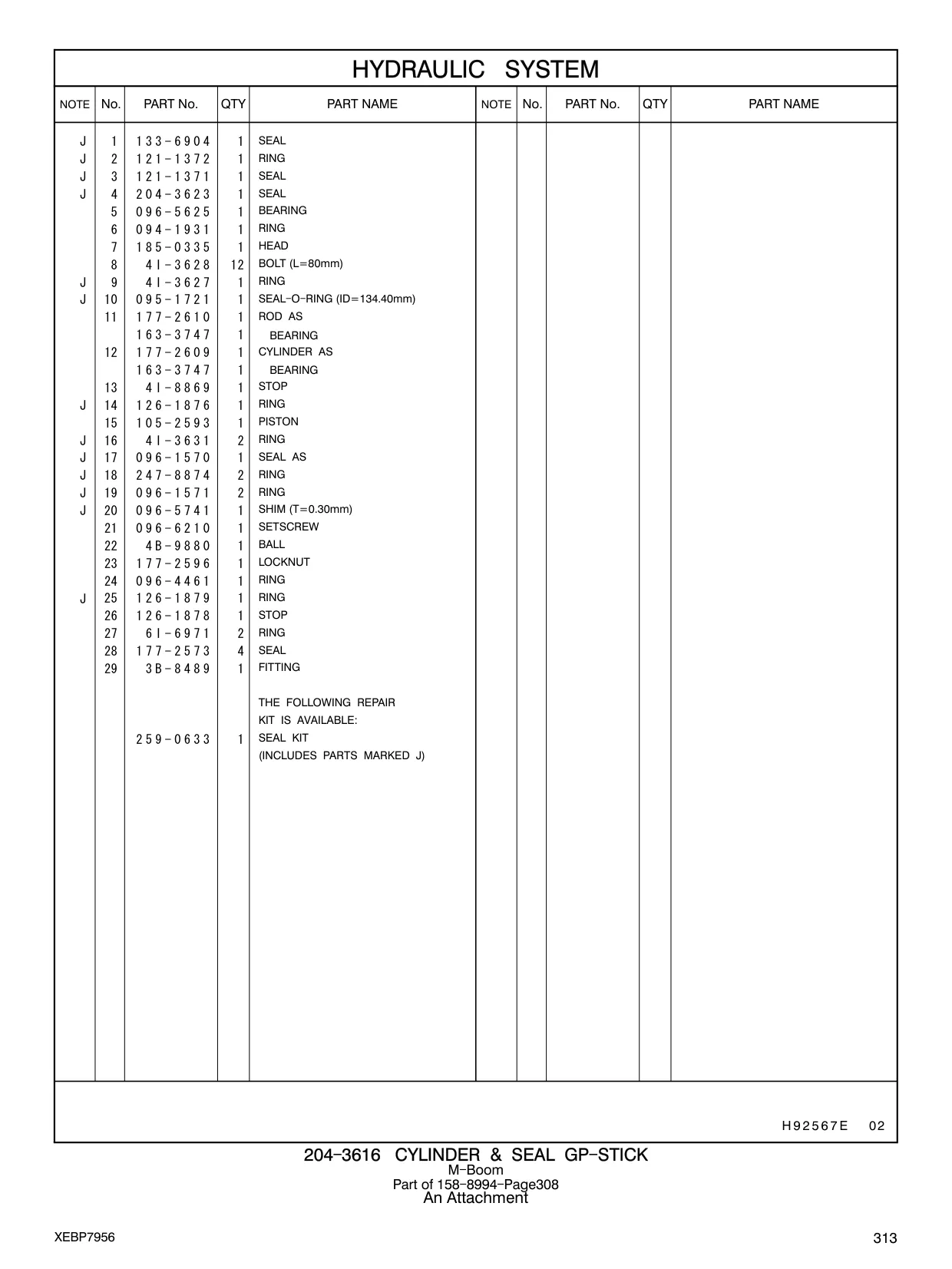

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 158-8994 |
158-8994
|
1 | 517 |
| 133-6904 |
SEAL
|
1 | 518 |
| 121-1372 |
RING
|
1 | 518 |
| 121-1371 |
SEAL
|
1 | 518 |
| 204-3623 |
SEAL
|
1 | 518 |
| 096-5625 |
BEARING
|
1 | 518 |
| 094-1931 |
RING
|
1 | 518 |
| 185-0335 |
HEAD
|
1 | 518 |
| 4I-3628 |
BOLT (L=80mm)
|
12 | 518 |
| 4I-3627 |
RING
|
1 | 518 |
| 095-1721 |
SEAL - O - RING (ID=134.40mm)
|
1 | 518 |
| 163-3747 |
BEARING
|
1 | 518 |
| 177-2609 |
CYLINDER AS
|
1 | 518 |
| 163-3747 |
BEARING
|
1 | 518 |
| 4I-8869 |
STOP
|
1 | 518 |
| 126-1876 |
RING
|
1 | 518 |
| 105-2593 |
PISTON
|
1 | 518 |
| 4I-3631 |
RING
|
2 | 518 |
| 096-1570 |
SEAL AS
|
1 | 518 |
| 247-8874 |
RING
|
2 | 518 |
| 096-1571 |
RING
|
2 | 518 |
| 096-5741 |
SHIM (T=0.30mm)
|
1 | 518 |
| 096-6210 |
SETSCREW
|
1 | 518 |
| 4B-9880 |
BALL
|
1 | 518 |
| 177-2596 |
LOCKNUT
|
1 | 518 |
| 096-4461 |
RING
|
1 | 518 |
| 126-1879 |
RING
|
1 | 518 |
| 126-1878 |
STOP
|
1 | 518 |
| 6I-6971 |
RING
|
2 | 518 |
| 177-2573 |
SEAL
|
4 | 518 |
| 3B-8489 |
FITTING THE FOLLOWING REPAIR KIT IS AVAILABLE:
|
1 | 518 |
| 259-0633 |
SEAL KIT (INCLUDES PARTS MARKED J)
|
1 | 518 |
| 158-8994 |
158-8994
|
1 | 422 |
| 133-6904 |
SEAL
|
1 | 423 |
| 121-1372 |
RING
|
1 | 423 |
| 121-1371 |
SEAL
|
1 | 423 |
| 204-3623 |
SEAL
|
1 | 423 |
| 096-5625 |
BEARING
|
1 | 423 |
| 094-1931 |
RING
|
1 | 423 |
| 185-0335 |
HEAD
|
1 | 423 |
| 4I-3628 |
BOLT (L=80mm)
|
12 | 423 |
| 4I-3627 |
RING
|
1 | 423 |
| 095-1721 |
SEAL - O - RING (ID=134.40mm)
|
1 | 423 |
| 163-3747 |
BEARING
|
1 | 423 |
| 177-2609 |
CYLINDER AS
|
1 | 423 |
| 163-3747 |
BEARING
|
1 | 423 |
| 4I-8869 |
STOP
|
1 | 423 |
| 126-1876 |
RING
|
1 | 423 |
| 105-2593 |
PISTON
|
1 | 423 |
| 4I-3631 |
RING
|
2 | 423 |
