| Part No. | Name | Qty | Page |
|---|---|---|---|
| 142-7704 |
142-7704
|
1 | 760 |
| 116-3600 |
116-3600
|
1 | 760 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
2 | 761 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 761 |
| 4B-4158 |
SCREW
|
2 | 761 |
| 4I-8965 |
GUIDE
|
1 | 761 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
2 | 761 |
| 5I-8511 |
SPRING
|
1 | 761 |
| 087-5166 |
SPRING
|
1 | 761 |
| 095-1594 |
SEAL - O - RING (ID=25.70mm)
|
1 | 761 |
| 095-1789 |
RING
|
1 | 761 |
| 116-3600 |

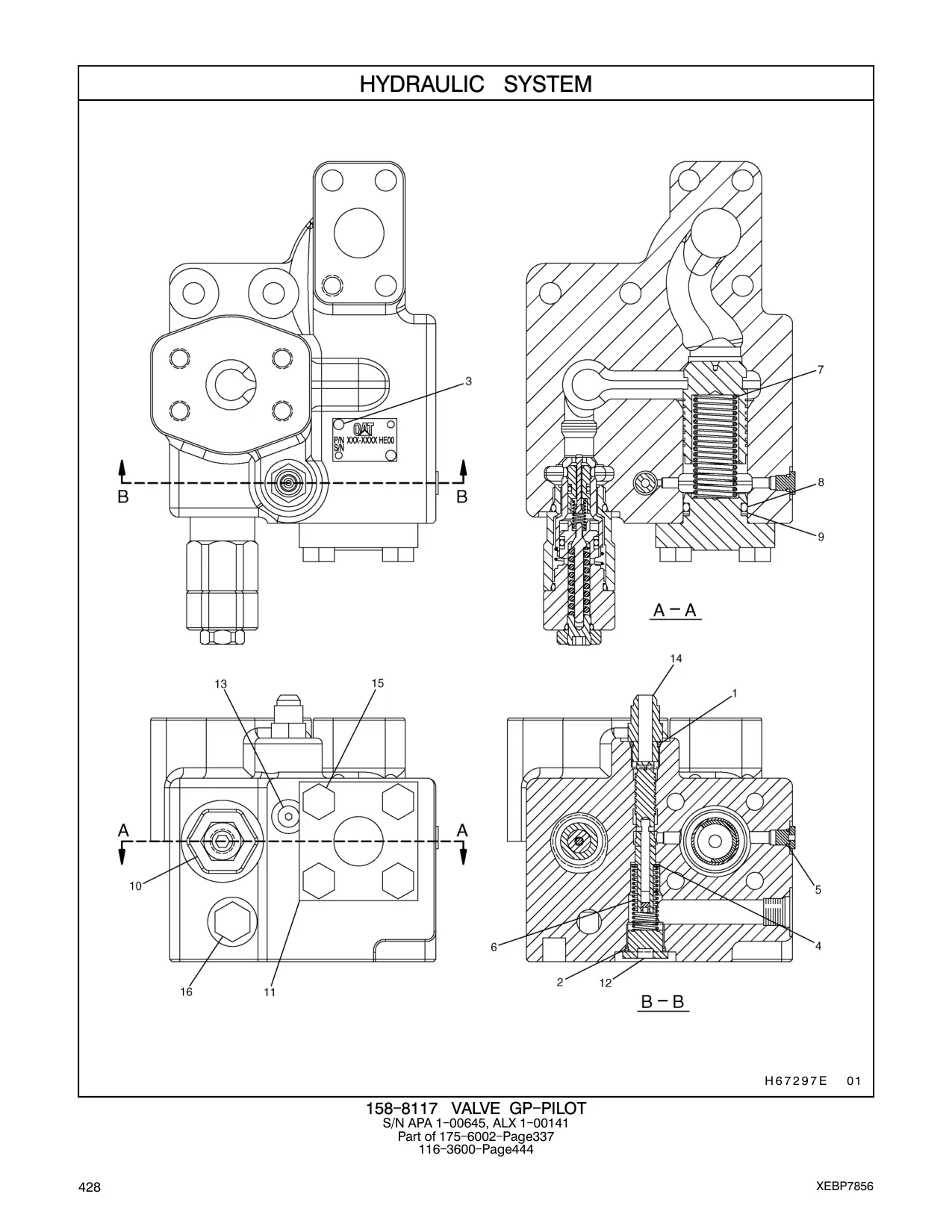

VALVE GP
|
1 | 761 |
| 118-4044 |
COVER
|
1 | 761 |
| 9S-8005 |
PLUG
|
1 | 761 |
| 9S-8001 |
PLUG
|
2 | 761 |
| 2R-6806 |
CONNECTOR
|
1 | 761 |
| 8T-4136 |
BOLT (L=25mm)
|
4 | 761 |
| 9S-4191 |
PLUG
|
1 | 761 |
| 142-7704 |
142-7704
|
1 | 762 |
| 116-3600 |
116-3600
|
1 | 762 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
2 | 763 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 763 |
| 4B-4158 |
SCREW
|
2 | 763 |
| 4I-8965 |
GUIDE
|
1 | 763 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
2 | 763 |
| 5I-8511 |
SPRING
|
1 | 763 |
| 087-5166 |
SPRING
|
1 | 763 |
| 095-1594 |
SEAL - O - RING (ID=25.70mm)
|
1 | 763 |
| 095-1789 |
RING
|
1 | 763 |
| 116-3600 |
VALVE GP
|
1 | 763 |
| 118-4044 |
COVER
|
1 | 763 |
| 9S-8005 |
PLUG
|
1 | 763 |
| 9S-8001 |
PLUG
|
2 | 763 |
| 190-7865 |
CONNECTOR
|
1 | 763 |
| 8T-4136 |
BOLT (L=25mm)
|
4 | 763 |
| 9S-4191 |
PLUG
|
1 | 763 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
1 | 763 |
| 116-3600 |
116-3600
|
1 | 570 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
2 | 571 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 571 |
| 4B-4158 |
SCREW
|
2 | 571 |
| 4I-8965 |
GUIDE
|
1 | 571 |
| 4J-7533 |
SEAL - O - RING (ID=6.07mm)
|
2 | 571 |
| 5I-8511 |
SPRING
|
1 | 571 |
| 087-5166 |
SPRING
|
1 | 571 |
| 095-1594 |
SEAL - O - RING (ID=25.70mm)
|
1 | 571 |
| 095-1789 |
RING
|
1 | 571 |
| 116-3600 |
VALVE GP
|
1 | 571 |
| 118-4044 |
COVER
|
1 | 571 |
| 9S-8005 |
PLUG
|
1 | 571 |
