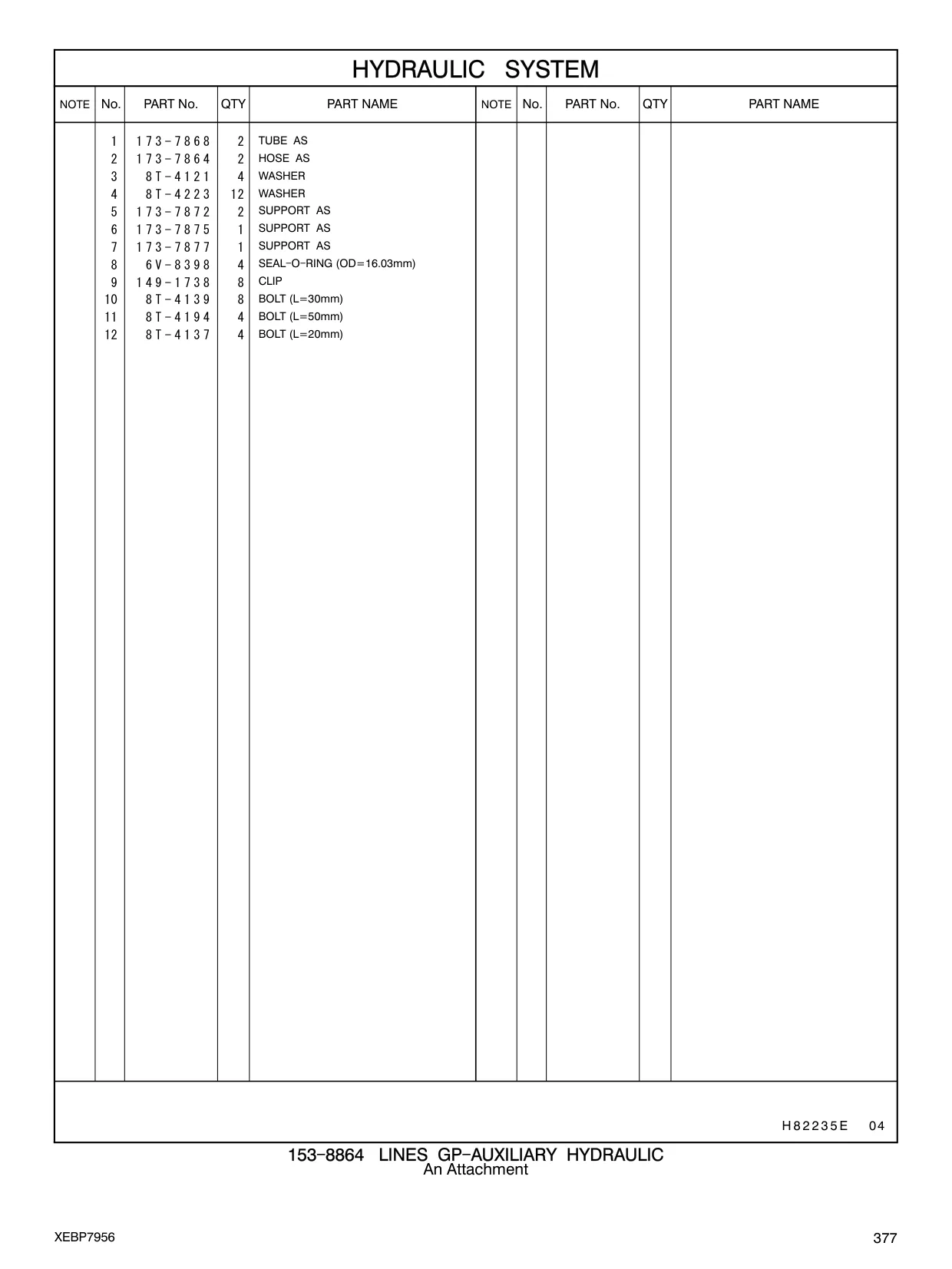

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 173-7868 |
TUBE AS
|
2 | 622 |
| 8T-4121 |
WASHER
|
4 | 622 |
| 8T-4223 |
WASHER
|
12 | 622 |
| 173-7872 |
SUPPORT AS
|
2 | 622 |
| 173-7875 |
SUPPORT AS
|
1 | 622 |
| 173-7877 |
SUPPORT AS
|
1 | 622 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 622 |
| 149-1738 |
CLIP
|
8 | 622 |
| 8T-4139 |
BOLT (L=30mm)
|
8 | 622 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 622 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 622 |
| 173-7868 |
TUBE AS
|
2 | 513 |
| 8T-4121 |
WASHER
|
4 | 513 |
| 8T-4223 |
WASHER
|
12 | 513 |
| 173-7872 |
SUPPORT AS
|
2 | 513 |
| 173-7875 |
SUPPORT AS
|
1 | 513 |
| 173-7877 |
SUPPORT AS
|
1 | 513 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 513 |
| 149-1738 |
CLIP
|
8 | 513 |
| 8T-4139 |
BOLT (L=30mm)
|
8 | 513 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 513 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 513 |
| 173-7868 |
TUBE AS
|
2 | 395 |
| 8T-4121 |
WASHER
|
4 | 395 |
| 8T-4223 |
WASHER
|
12 | 395 |
| 173-7872 |
SUPPORT AS
|
2 | 395 |
| 173-7875 |
SUPPORT AS
|
1 | 395 |
| 173-7877 |
SUPPORT AS
|
1 | 395 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 395 |
| 149-1738 |
CLIP
|
8 | 395 |
| 8T-4139 |
BOLT (L=30mm)
|
8 | 395 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 395 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 395 |
| 173-7868 |
TUBE AS
|
2 | 531 |
| 8T-4121 |
WASHER
|
4 | 531 |
| 8T-4223 |
WASHER
|
12 | 531 |
| 173-7872 |
SUPPORT AS
|
2 | 531 |
| 173-7875 |
SUPPORT AS
|
1 | 531 |
| 173-7877 |
SUPPORT AS
|
1 | 531 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
4 | 531 |
| 149-1738 |
CLIP
|
8 | 531 |
| 8T-4139 |
BOLT (L=30mm)
|
8 | 531 |
| 8T-4194 |
BOLT (L=50mm)
|
4 | 531 |
| 8T-4137 |
BOLT (L=20mm)
|
4 | 531 |
