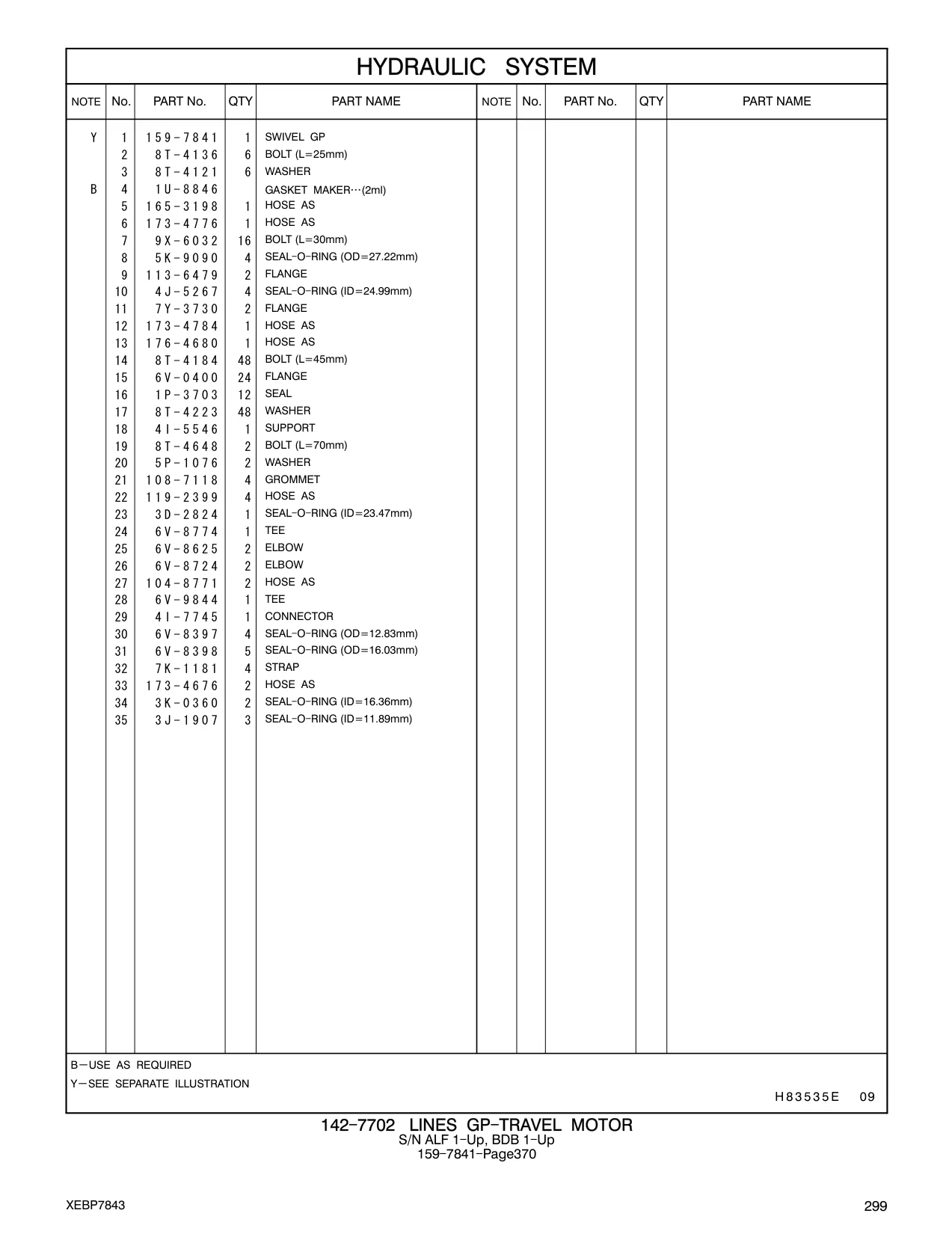

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 159-7841 |
159-7841
|
1 | 641 |
| 159-7841 |
SWIVEL GP
|
1 | 642 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 642 |
| 8T-4121 |
WASHER
|
6 | 642 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 642 |
| 165-3198 |
HOSE AS
|
1 | 642 |
| 173-4776 |
HOSE AS
|
1 | 642 |
| 9X-6032 |
BOLT (L=30mm)
|
16 | 642 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
4 | 642 |
| 113-6479 |
FLANGE
|
2 | 642 |
| 4J-5267 |
SEAL - O - RING (ID=24.99mm)
|
4 | 642 |
| 7Y-3730 |
FLANGE
|
2 | 642 |
| 173-4784 |
HOSE AS
|
1 | 642 |
| 176-4680 |
HOSE AS
|
1 | 642 |
| 8T-4184 |
BOLT (L=45mm)
|
48 | 642 |
| 6V-0400 |
FLANGE
|
24 | 642 |
| 1P-3703 |
SEAL
|
12 | 642 |
| 8T-4223 |
WASHER
|
48 | 642 |
| 4I-5546 |
SUPPORT
|
1 | 642 |
| 8T-4648 |
BOLT (L=70mm)
|
2 | 642 |
| 5P-1076 |
WASHER
|
2 | 642 |
| 108-7118 |
GROMMET
|
4 | 642 |
| 119-2399 |
HOSE AS
|
4 | 642 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
1 | 642 |
| 6V-8774 |
TEE
|
1 | 642 |
| 6V-8625 |
ELBOW
|
2 | 642 |
| 6V-8724 |
ELBOW
|
2 | 642 |
| 104-8771 |
HOSE AS
|
2 | 642 |
| 6V-9844 |
TEE
|
1 | 642 |
| 4I-7745 |
CONNECTOR
|
1 | 642 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
4 | 642 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
5 | 642 |
| 7K-1181 |
STRAP
|
4 | 642 |
| 173-5089 |
HOSE AS
|
2 | 642 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 642 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
3 | 642 |
| 159-7841 |
159-7841
|
1 | 538 |
| 159-7841 |
SWIVEL GP
|
1 | 539 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 539 |
| 8T-4121 |
WASHER
|
6 | 539 |
| 1U-8846 |
GASKET MAKER (2ml)
|
1 | 539 |
| 165-3198 |
HOSE AS
|
1 | 539 |
| 173-4776 |
HOSE AS
|
1 | 539 |
| 9X-6032 |
BOLT (L=30mm)
|
16 | 539 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
4 | 539 |
| 113-6479 |
FLANGE
|
2 | 539 |
| 4J-5267 |
SEAL - O - RING (ID=24.99mm)
|
4 | 539 |
| 7Y-3730 |
FLANGE
|
2 | 539 |
| 173-4784 |
HOSE AS
|
1 | 539 |
| 176-4680 |
HOSE AS
|
1 | 539 |
