CAT 320C 167-7141 Parts Manual Diagram - GUARD AS

Home › Parts Manual › CAT 320C › 167-7141

Part No.

167-7141

Name (EN)

GUARD AS

Name (CN)

Qty

1 per assembly

Group

164-0497

System

OPERATOR STATION

Source

CAT Official Parts Manual

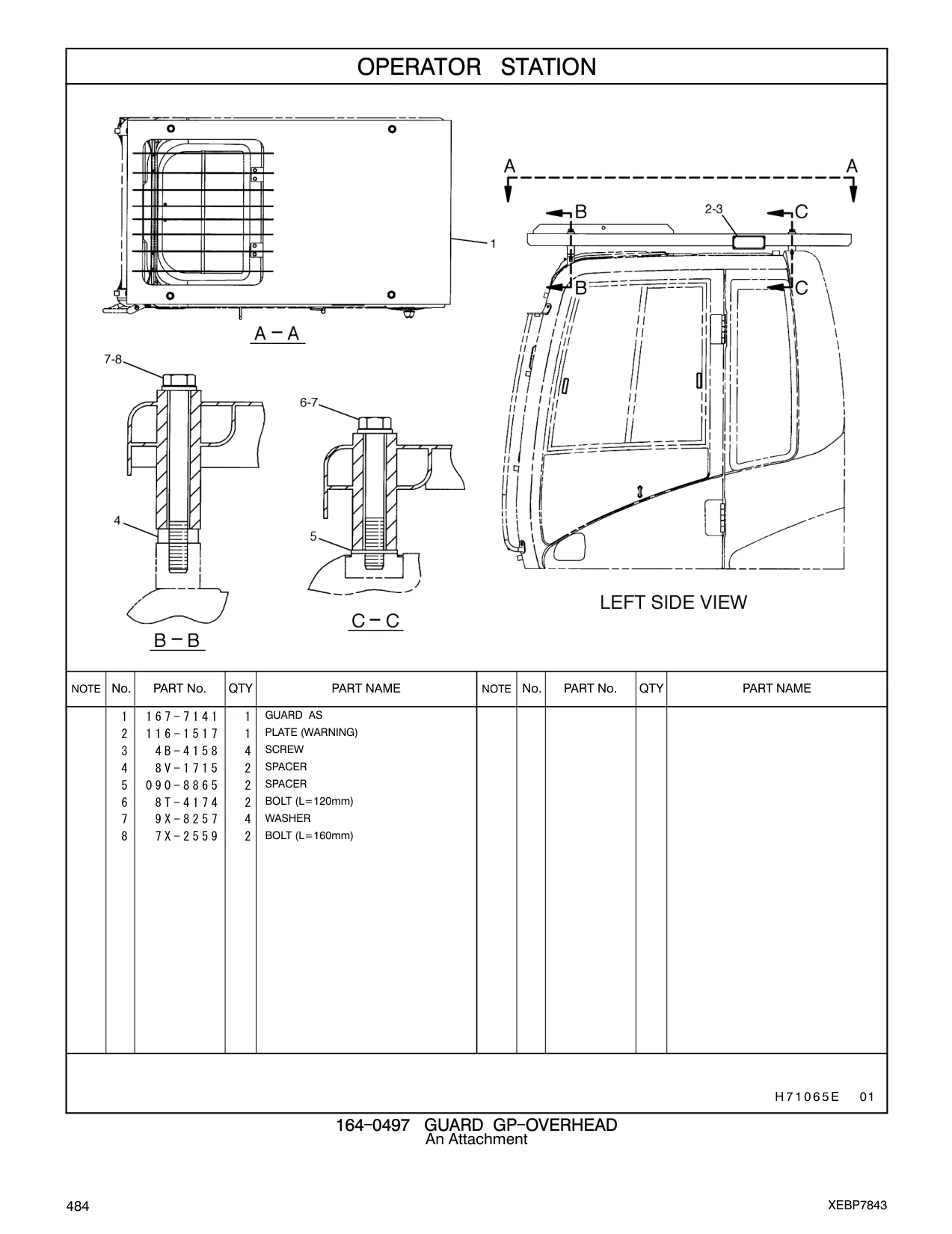

※ Click image to zoom · Page 870 of official CAT 320C parts manual

Part No.	Name	Qty	Page
116-1517	PLATE (WARNING)	1	870
4B-4158	SCREW	4	870
8V-1715	SPACER	2	870
090-8865	SPACER	2	870
8T-4174	BOLT (L=120mm)	2	870
9X-8257	WASHER	4	870
7X-2559	BOLT (L=160mm)	2	870
7Y-3919	HORN AS	1	871
095-0826	LOCKWASHER	2	871
095-7930	SCREW	2	871
7Y-3920	HORN AS	1	871
095-0826	LOCKWASHER	2	871
095-7930	SCREW	2	871
8T-4191	BOLT (L=16mm)	2	871
8T-4121	WASHER	2	871
8T-4139	BOLT (L=30mm)	2	669
8T-4223	WASHER	2	669
171-7467	SUPPORT AS	1	669
171-7464	SUPPORT AS	1	669
8T-4174	BOLT (L=120mm)	2	669
9X-8257	WASHER	4	669
7X-2559	BOLT (L=160mm)	2	669
116-1517	PLATE (WARNING)	1	839
4B-4158	SCREW	4	839
8V-1715	SPACER	2	839
090-8865	SPACER	2	839
8T-4174	BOLT (L=120mm)	2	839
9X-8257	WASHER	4	839
7X-2559	BOLT (L=160mm)	2	839
