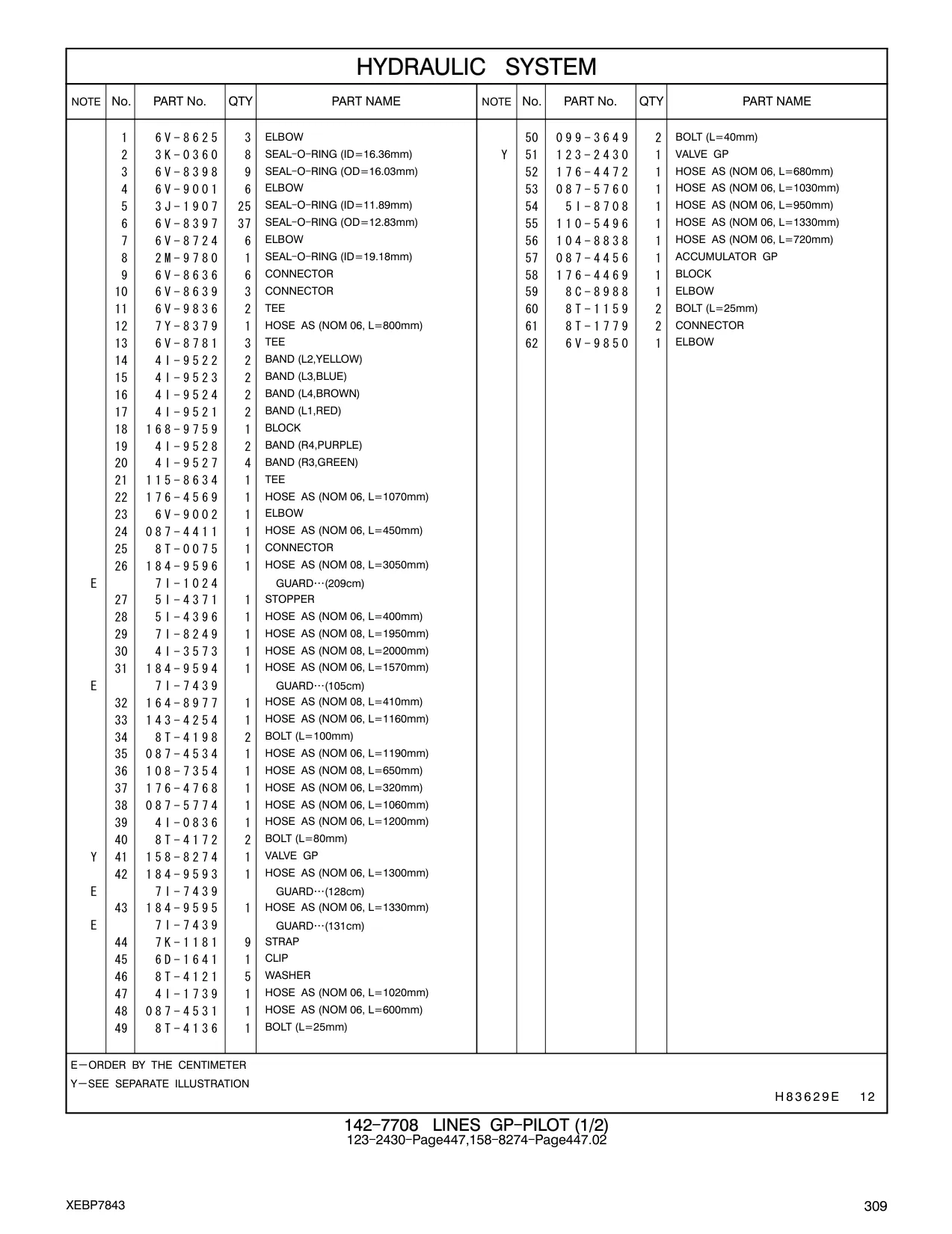

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 123-2430 |
123-2430
|
1 | 550 |
| 6V-8625 |
ELBOW
|
3 | 551 |
| 099-3649 |
BOLT (L=40mm)
|
2 | 551 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
8 | 551 |
| 123-2430 |
VALVE GP
|
1 | 551 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
9 | 551 |
| 176-4472 |
HOSE AS (NOM 06, L=680mm)
|
1 | 551 |
| 6V-9001 |
ELBOW
|
6 | 551 |
| 087-5760 |
HOSE AS (NOM 06, L=1030mm)
|
1 | 551 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
25 | 551 |
| 5I-8708 |
HOSE AS (NOM 06, L=950mm)
|
1 | 551 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
37 | 551 |
| 110-5496 |
HOSE AS (NOM 06, L=1330mm)
|
1 | 551 |
| 6V-8724 |
ELBOW
|
6 | 551 |
| 104-8838 |
HOSE AS (NOM 06, L=720mm)
|
1 | 551 |
| 2M-9780 |
SEAL - O - RING (ID=19.18mm)
|
1 | 551 |
| 087-4456 |
ACCUMULATOR GP
|
1 | 551 |
| 6V-8636 |
CONNECTOR
|
6 | 551 |
| 176-4469 |
BLOCK
|
1 | 551 |
| 6V-8639 |
CONNECTOR
|
3 | 551 |
| 8C-8988 |
ELBOW
|
1 | 551 |
| 6V-9836 |
TEE
|
2 | 551 |
| 8T-1159 |
BOLT (L=25mm)
|
2 | 551 |
| 7Y-8379 |
HOSE AS (NOM 06, L=800mm)
|
1 | 551 |
| 8T-1779 |
CONNECTOR
|
2 | 551 |
| 6V-8781 |
TEE
|
3 | 551 |
| 4I-9522 |
BAND (L2,YELLOW)
|
2 | 551 |
| 4I-9523 |
BAND (L3,BLUE)
|
2 | 551 |
| 4I-9524 |
BAND (L4,BROWN)
|
2 | 551 |
| 4I-9521 |
BAND (L1,RED)
|
2 | 551 |
| 168-9759 |
BLOCK
|
1 | 551 |
| 4I-9528 |
BAND (R4,PURPLE)
|
2 | 551 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 551 |
| 115-8634 |
TEE
|
1 | 551 |
| 176-4569 |
HOSE AS (NOM 06, L=1070mm)
|
1 | 551 |
| 6V-9002 |
ELBOW
|
1 | 551 |
| 087-4411 |
HOSE AS (NOM 06, L=450mm)
|
1 | 551 |
| 8T-0075 |
CONNECTOR
|
1 | 551 |
| 184-9596 |
HOSE AS (NOM 08, L=3050mm)
|
1 | 551 |
| 7I-1024 |
GUARD (209cm)
|
1 | 551 |
| 5I-4371 |
STOPPER
|
1 | 551 |
| 5I-4396 |
HOSE AS (NOM 06, L=400mm)
|
1 | 551 |
| 7I-8249 |
HOSE AS (NOM 08, L=1950mm)
|
1 | 551 |
| 4I-3573 |
HOSE AS (NOM 08, L=2000mm)
|
1 | 551 |
| 184-9594 |
HOSE AS (NOM 06, L=1570mm)
|
1 | 551 |
| 7I-7439 |
GUARD (105cm)
|
1 | 551 |
| 164-8977 |
HOSE AS (NOM 08, L=410mm)
|
1 | 551 |
| 143-4254 |
HOSE AS (NOM 06, L=1160mm)
|
1 | 551 |
| 8T-4198 |
BOLT (L=100mm)
|
2 | 551 |
| 087-4534 |
HOSE AS (NOM 06, L=1190mm)
|
1 | 551 |
