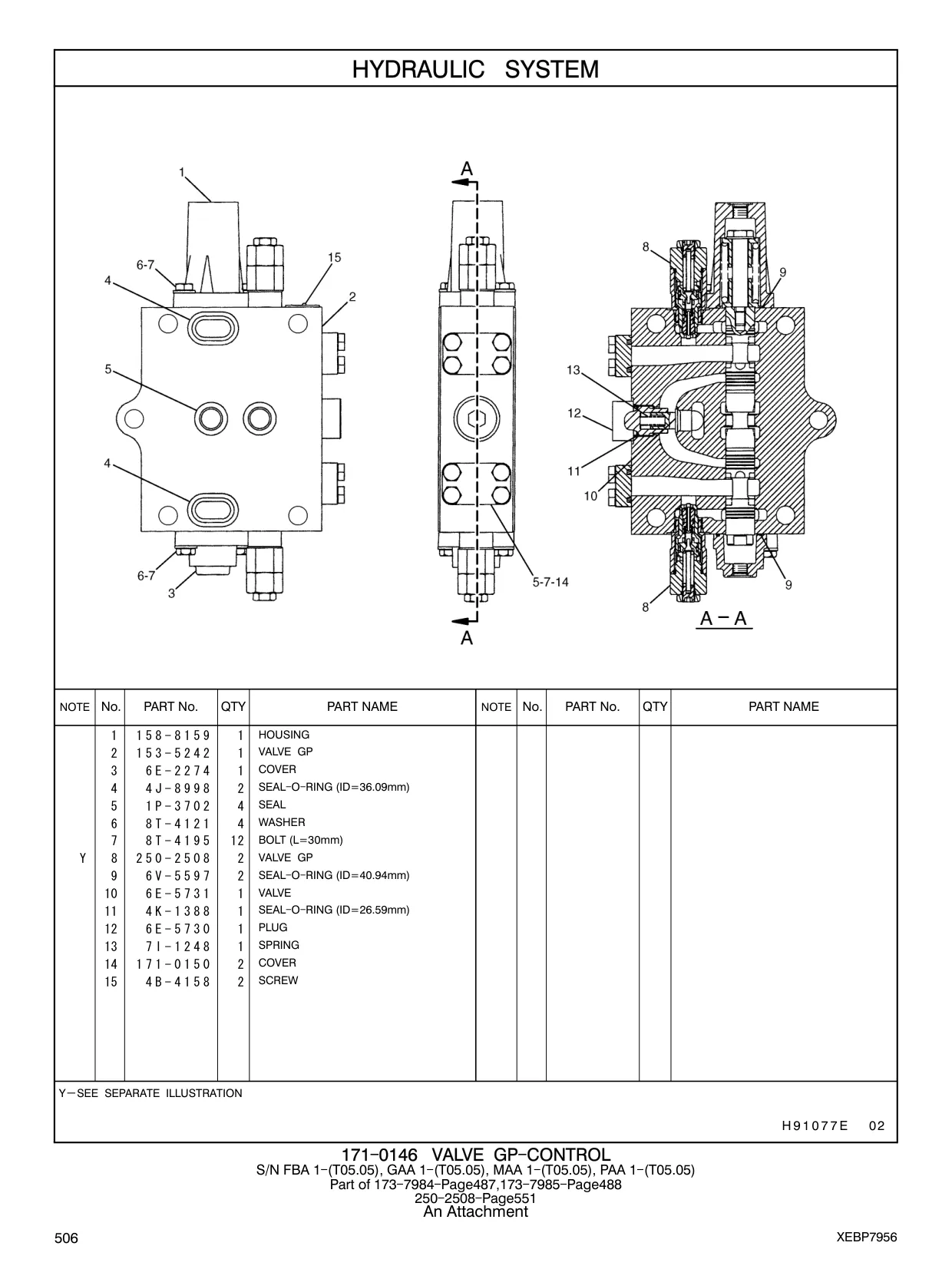

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 158-8159 |
HOUSING
|
1 | 829 |
| 6E-2274 |
COVER
|
1 | 829 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 829 |
| 1P-3702 |
SEAL
|
4 | 829 |
| 8T-4121 |
WASHER
|
4 | 829 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 829 |
| 250-2508 |
VALVE GP
|
2 | 829 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 829 |
| 6E-5731 |
VALVE
|
1 | 829 |
| 4K-1388 |
SEAL - O - RING (ID=26.59mm)
|
1 | 829 |
| 6E-5730 |
PLUG
|
1 | 829 |
| 7I-1248 |
SPRING
|
1 | 829 |
| 171-0150 |
COVER
|
2 | 829 |
| 4B-4158 |
SCREW
|
2 | 829 |
| 158-8159 |
HOUSING
|
1 | 722 |
| 6E-2274 |
COVER
|
1 | 722 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 722 |
| 1P-3702 |
SEAL
|
4 | 722 |
| 8T-4121 |
WASHER
|
4 | 722 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 722 |
| 116-3600 |
VALVE GP
|
2 | 722 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 722 |
| 6E-5731 |
VALVE
|
1 | 722 |
| 4K-1388 |
SEAL - O - RING (ID=26.59mm)
|
1 | 722 |
| 6E-5730 |
PLUG
|
1 | 722 |
| 7I-1248 |
SPRING
|
1 | 722 |
| 171-0150 |
COVER
|
2 | 722 |
| 4B-4158 |
SCREW
|
2 | 722 |
| 158-8159 |
HOUSING
|
1 | 535 |
| 6E-2274 |
COVER
|
1 | 535 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 535 |
| 1P-3702 |
SEAL
|
4 | 535 |
| 8T-4121 |
WASHER
|
4 | 535 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 535 |
| 116-3600 |
VALVE GP
|
2 | 535 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 535 |
| 6E-5731 |
VALVE
|
1 | 535 |
| 4K-1388 |
SEAL - O - RING (ID=26.59mm)
|
1 | 535 |
| 6E-5730 |
PLUG
|
1 | 535 |
| 7I-1248 |
SPRING
|
1 | 535 |
| 171-0150 |
COVER
|
2 | 535 |
| 4B-4158 |
SCREW
|
2 | 535 |
| 158-8159 |
HOUSING
|
1 | 705 |
| 6E-2274 |
COVER
|
1 | 705 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 705 |
| 1P-3702 |
SEAL
|
4 | 705 |
| 8T-4121 |
WASHER
|
4 | 705 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 705 |
| 250-2508 |
VALVE GP
|
2 | 705 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 705 |
