| Part No. | Name | Qty | Page |
|---|---|---|---|
| 121-1809 |
PLATE
|
2 | 1099 |
| 7Y-6601 |
EDGE
|
1 | 1099 |
| 121-1813 |
PLATE
|
1 | 1099 |
| 127-6792 |
PLATE
|
1 | 1099 |
| 086-0322 |
SHIM (T=1.00mm)
|
6 | 1100 |
| 086-0321 |
SHIM (T=0.50mm)
|
4 | 1100 |
| 193-5014 |
PIN
|
1 | 1100 |
| 134-8948 |
PLATE
|
1 | 1100 |
| 8T-4193 |
BOLT (L=50mm)
|
4 | 1100 |
| 9X-8257 |
WASHER
|
4 | 1100 |
| 193-5015 |
FLANGE 7Y - 2219 - 0872 - Page721,168 - 2967 - An
|
1 | 1100 |

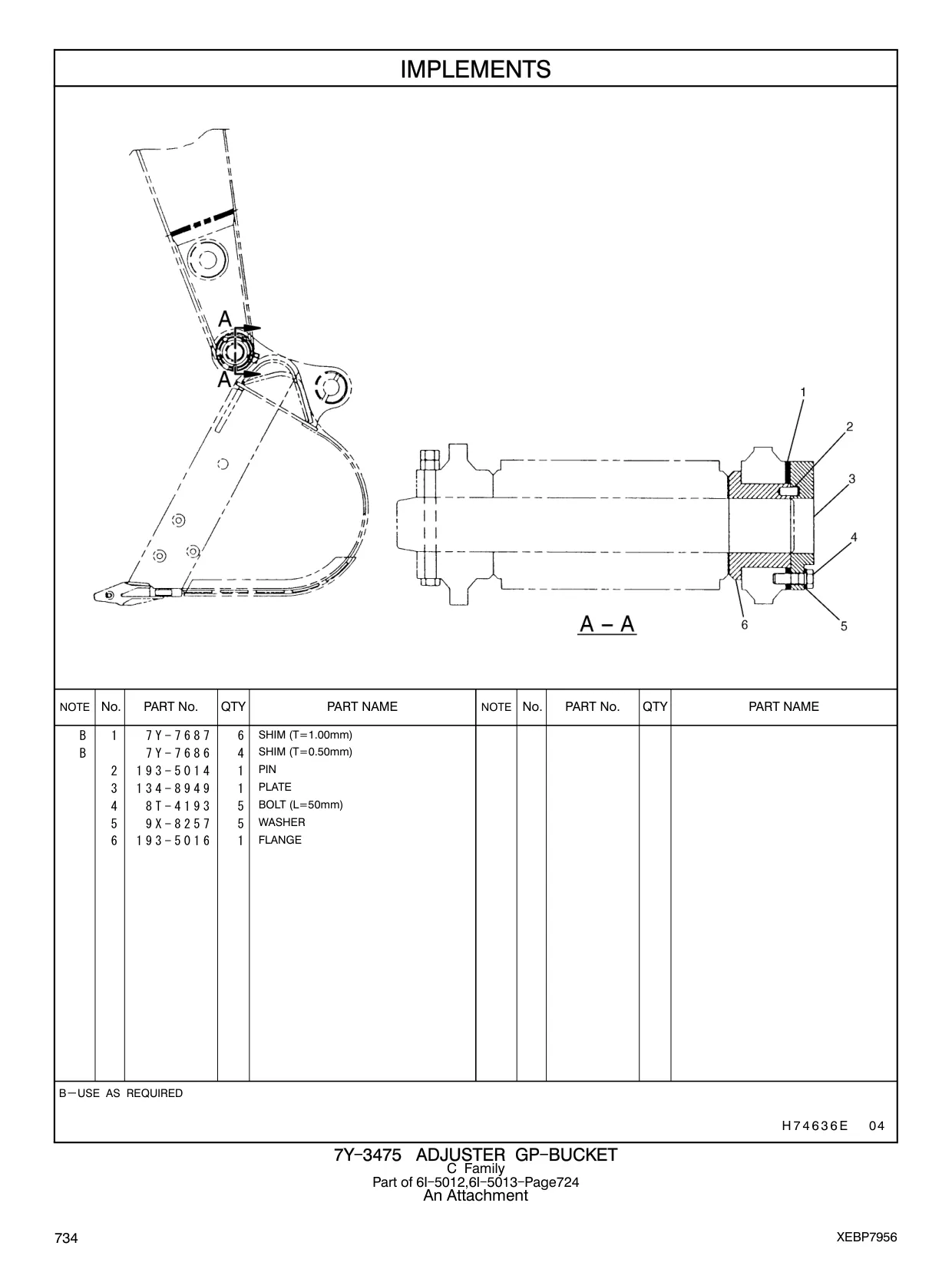

| 7Y-7687 |
SHIM (T=1.00mm)
|
6 | 1101 |
| 7Y-7686 |
SHIM (T=0.50mm)
|
4 | 1101 |
| 193-5014 |
PIN
|
1 | 1101 |
| 8T-4193 |
BOLT (L=50mm)
|
5 | 1101 |
| 9X-8257 |
WASHER
|
5 | 1101 |
| 193-5016 |
FLANGE 7Y - 3475 Part of 6I - An
|
1 | 1101 |
| 096-4747 |
SIDECUTTER (LH)
|
1 | 1103 |
| 096-4748 |
SIDECUTTER (RH)
|
1 | 1103 |
| 8T-0380 |
BOLT (L=60mm)
|
8 | 1103 |
| 7X-0851 |
NUT
|
8 | 1103 |
| 7Y-0358 |
SIDECUTTER (LH)
|
1 | 1103 |
| 7Y-0357 |
SIDECUTTER (RH)
|
1 | 1103 |
| 6I-6371 |
BOLT (L=64mm)
|
6 | 1103 |
| 2J-3507 |
NUT
|
6 | 1103 |
| 121-1809 |
PLATE
|
2 | 995 |
| 7Y-6601 |
EDGE
|
1 | 995 |
| 121-1813 |
PLATE
|
1 | 995 |
| 127-6792 |
PLATE
|
1 | 995 |
| 086-0322 |
SHIM (T=1.00mm)
|
6 | 996 |
| 086-0321 |
SHIM (T=0.50mm)
|
4 | 996 |
| 193-5014 |
PIN
|
1 | 996 |
| 134-8948 |
PLATE
|
1 | 996 |
| 8T-4193 |
BOLT (L=50mm)
|
4 | 996 |
| 9X-8257 |
WASHER
|
4 | 996 |
| 193-5015 |
FLANGE 7Y - 2219 Page551,165 - 0871,168 - 3017 - ,168 - 2968 -
|
1 | 996 |
| 7Y-7687 |
SHIM (T=1.00mm)
|
6 | 997 |
| 7Y-7686 |
SHIM (T=0.50mm)
|
4 | 997 |
| 193-5014 |
PIN
|
1 | 997 |
| 8T-4193 |
BOLT (L=50mm)
|
5 | 997 |
| 9X-8257 |
WASHER
|
5 | 997 |
| 193-5016 |
FLANGE 7Y - 3475 Part of 6I - 5012 - An
|
1 | 997 |
| 096-4747 |
SIDECUTTER (LH)
|
1 | 998 |
| 096-4748 |
SIDECUTTER (RH)
|
1 | 998 |
| 8T-0380 |
BOLT (L=60mm)
|
8 | 998 |
| 7X-0851 |
NUT
|
8 | 998 |
| 7Y-0358 |
SIDECUTTER (LH)
|
1 | 998 |
| 7Y-0357 |
SIDECUTTER (RH)
|
1 | 998 |
| 6I-6371 |
BOLT (L=64mm)
|
6 | 998 |
| 2J-3507 |
NUT
|
6 | 998 |
