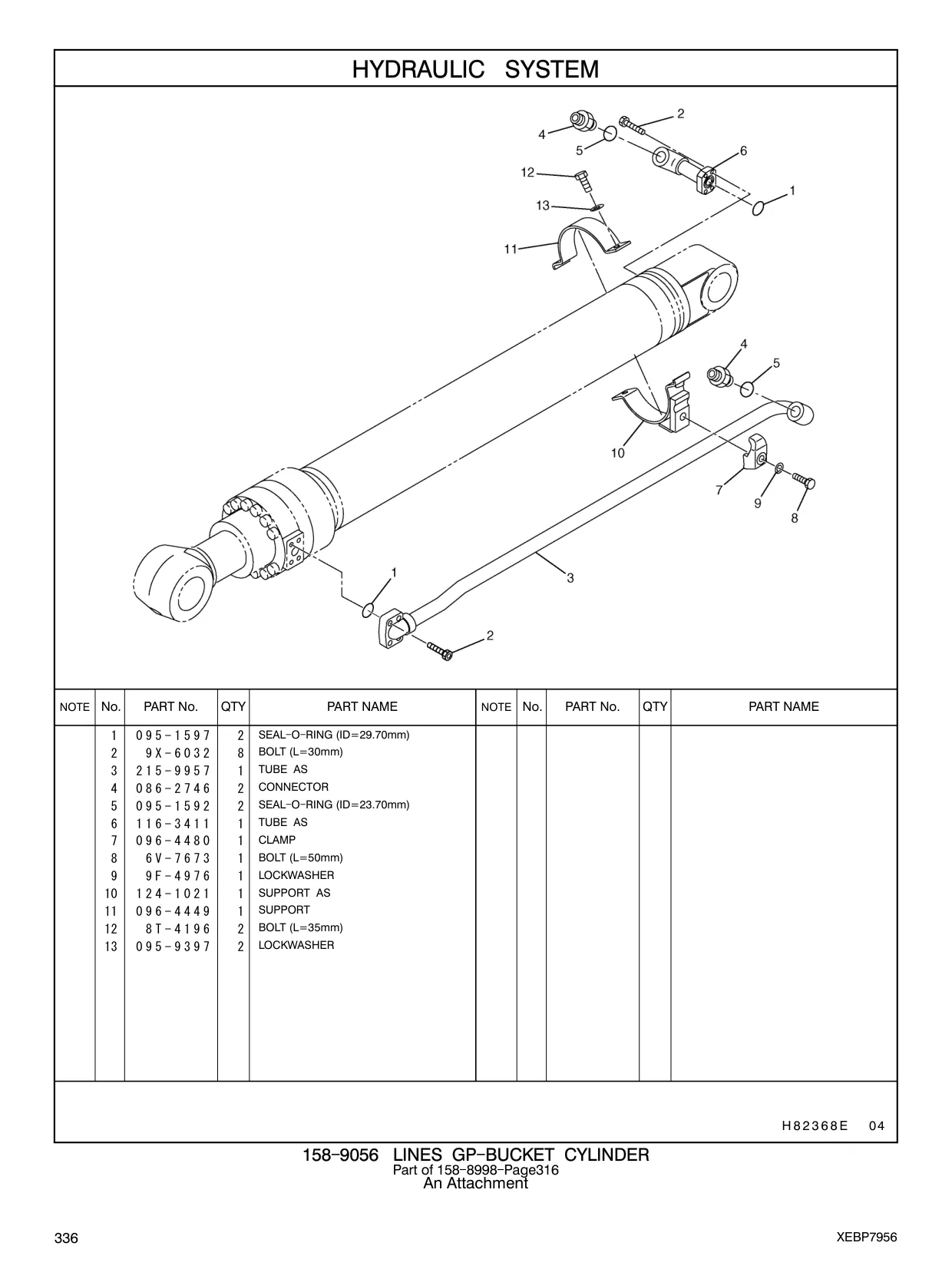

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 563 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 563 |
| 215-9957 |
TUBE AS
|
1 | 563 |
| 086-2746 |
CONNECTOR
|
2 | 563 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 563 |
| 116-3411 |
TUBE AS
|
1 | 563 |
| 096-4480 |
CLAMP
|
1 | 563 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 563 |
| 9F-4976 |
LOCKWASHER
|
1 | 563 |
| 096-4449 |
SUPPORT
|
1 | 563 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 563 |
| 095-9397 |
LOCKWASHER
|
2 | 563 |
| 095-1597 |
SEAL - O - RING (ID=29.70mm)
|
2 | 455 |
| 9X-6032 |
BOLT (L=30mm)
|
8 | 455 |
| 215-9957 |
TUBE AS
|
1 | 455 |
| 086-2746 |
CONNECTOR
|
2 | 455 |
| 095-1592 |
SEAL - O - RING (ID=23.70mm)
|
2 | 455 |
| 116-3411 |
TUBE AS
|
1 | 455 |
| 096-4480 |
CLAMP
|
1 | 455 |
| 6V-7673 |
BOLT (L=50mm)
|
1 | 455 |
| 9F-4976 |
LOCKWASHER
|
1 | 455 |
| 096-4449 |
SUPPORT
|
1 | 455 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 455 |
| 095-9397 |
LOCKWASHER
|
2 | 455 |
