| Part No. | Name | Qty | Page |
|---|---|---|---|
| 163-6619 |
163-6619
|
1 | 132 |
| 163-6741 |
BRACKET AS
|
1 | 133 |
| 8T-4191 |
BOLT (L=16mm)
|
4 | 133 |
| 8T-4121 |
WASHER
|
4 | 133 |
| 163-6746 |
COVER
|
1 | 133 |
| 170-6887 |
COVER
|
1 | 133 |
| 8C-7581 |
SCREW
|
4 | 133 |
| 096-6166 |
WASHER
|
4 | 133 |
| 8T-6411 |
SCREW
|
6 | 133 |
| 9X-8256 |
WASHER
|
10 | 133 |
| 3E-8320 |
PLATE (INSTRUCTION)
|
1 | 133 |
| 7N-0718 |
SWITCH AS (DISCONNECT)
|
1 | 133 |
| 7X-2619 |
BOLT (L=10mm)
|
4 | 133 |
| 161-3128 |
RELAY
|
6 | 133 |
| 113-8491 |
FUSE (15A)
|
7 | 133 |
| 141-2759 |
FUSE (5A)
|
9 | 133 |
| 113-8490 |
FUSE (10A)
|
20 | 133 |
| 170-6888 |
TOOL
|
1 | 133 |
| 8T-0328 |
WASHER
|
2 | 133 |
| 124-3548 |
FUSE (30A)
|
2 | 133 |
| 149-5051 |
CONNECTOR
|
2 | 133 |
| 094-2080 |
RELAY
|
1 | 133 |
| 102-8016 |
RESISTOR AS
|
1 | 133 |
| 171-2208 |
BREAKER AS
|
1 | 133 |
| 6V-8187 |
NUT
|
2 | 133 |
| 1H-3244 |
LOCKWASHER
|
2 | 133 |
| 8T-4205 |
WASHER
|
2 | 133 |
| 6V-5645 |
SCREW
|
2 | 133 |
| 163-6619 |
163-6619
|
1 | 134 |
| 163-6740 |
163-6740
|
1 | 134 |
| 163-6703 |
163-6703
|
1 | 134 |

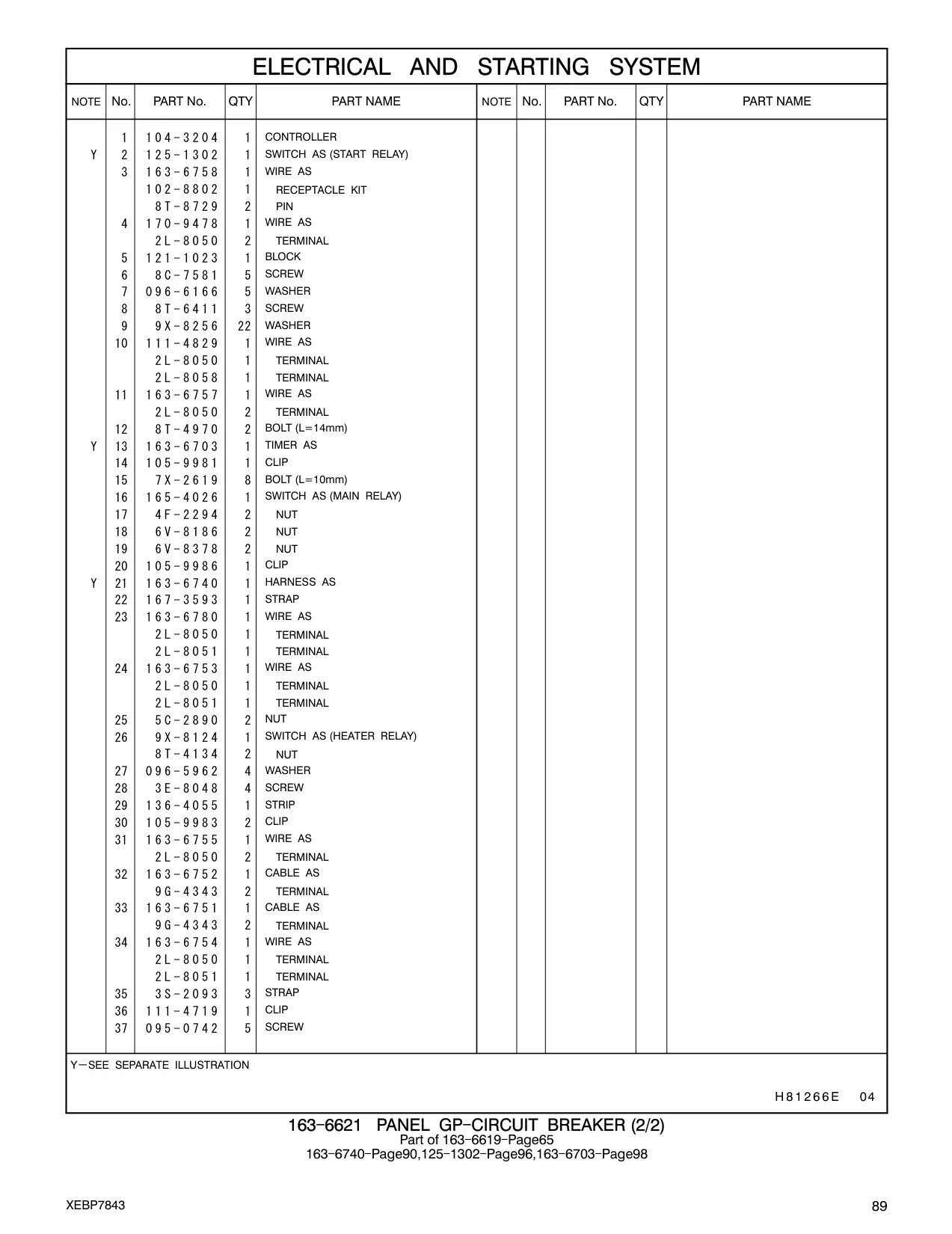

| 125-1302 |
SWITCH AS (START RELAY)
|
1 | 135 |
| 163-6758 |
WIRE AS
|
1 | 135 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 135 |
| 8T-8729 |
PIN
|
2 | 135 |
| 170-9478 |
WIRE AS
|
1 | 135 |
| 2L-8050 |
TERMINAL
|
2 | 135 |
| 121-1023 |
BLOCK
|
1 | 135 |
| 8C-7581 |
SCREW
|
5 | 135 |
| 096-6166 |
WASHER
|
5 | 135 |
| 8T-6411 |
SCREW
|
3 | 135 |
| 9X-8256 |
WASHER
|
22 | 135 |
| 111-4829 |
WIRE AS
|
1 | 135 |
| 2L-8050 |
TERMINAL
|
1 | 135 |
| 2L-8058 |
TERMINAL
|
1 | 135 |
| 163-6757 |
WIRE AS
|
1 | 135 |
| 2L-8050 |
TERMINAL
|
2 | 135 |
| 8T-4970 |
BOLT (L=14mm)
|
2 | 135 |
| 163-6703 |
TIMER AS
|
1 | 135 |
| 105-9981 |
CLIP
|
1 | 135 |
