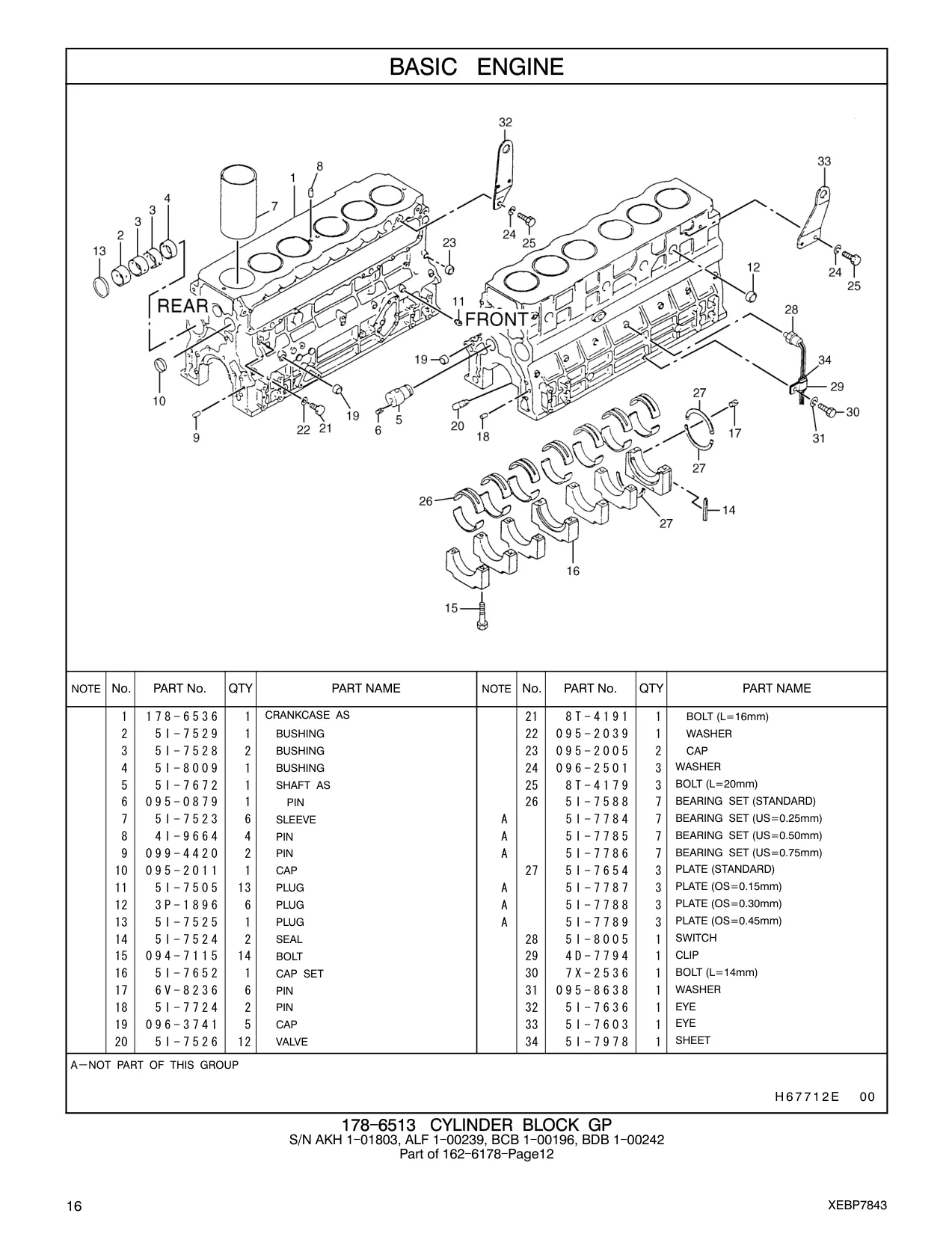

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 178-6536 |
CRANKCASE AS
|
1 | 22 |
| 8T-4191 |
BOLT (L=16mm)
|
1 | 22 |
| 5I-7529 |
BUSHING
|
1 | 22 |
| 095-2039 |
WASHER
|
1 | 22 |
| 5I-7528 |
BUSHING
|
2 | 22 |
| 095-2005 |
CAP
|
2 | 22 |
| 5I-8009 |
BUSHING
|
1 | 22 |
| 096-2501 |
WASHER
|
3 | 22 |
| 5I-7672 |
SHAFT AS
|
1 | 22 |
| 8T-4179 |
BOLT (L=20mm)
|
3 | 22 |
| 5I-7588 |
BEARING SET (STANDARD)
|
7 | 22 |
| 5I-7523 |
SLEEVE
|
6 | 22 |
| 5I-7784 |
BEARING SET (US=0.25mm)
|
7 | 22 |
| 4I-9664 |
PIN
|
4 | 22 |
| 5I-7785 |
BEARING SET (US=0.50mm)
|
7 | 22 |
| 099-4420 |
PIN
|
2 | 22 |
| 5I-7786 |
BEARING SET (US=0.75mm)
|
7 | 22 |
| 095-2011 |
CAP
|
1 | 22 |
| 5I-7654 |
PLATE (STANDARD)
|
3 | 22 |
| 5I-7505 |
PLUG
|
13 | 22 |
| 5I-7787 |
PLATE (OS=0.15mm)
|
3 | 22 |
| 3P-1896 |
PLUG
|
6 | 22 |
| 5I-7788 |
PLATE (OS=0.30mm)
|
3 | 22 |
| 5I-7525 |
PLUG
|
1 | 22 |
| 5I-7789 |
PLATE (OS=0.45mm)
|
3 | 22 |
| 5I-7524 |
SEAL
|
2 | 22 |
| 5I-8005 |
SWITCH
|
1 | 22 |
| 094-7115 |
BOLT
|
14 | 22 |
| 4D-7794 |
CLIP
|
1 | 22 |
| 5I-7652 |
CAP SET
|
1 | 22 |
| 7X-2536 |
BOLT (L=14mm)
|
1 | 22 |
| 6V-8236 |
PIN
|
6 | 22 |
| 095-8638 |
WASHER
|
1 | 22 |
| 5I-7724 |
PIN
|
2 | 22 |
| 5I-7636 |
EYE
|
1 | 22 |
| 096-3741 |
CAP
|
5 | 22 |
| 5I-7603 |
EYE
|
1 | 22 |
| 5I-7526 |
VALVE
|
12 | 22 |
| 5I-7978 |
SHEET H 6 7 7 1 2 E 00
|
1 | 22 |
