| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 6I-4348 |
BOOT (40-PIN) KIT-CONNECTING PLUG (4-PIN)
|
2 | 278 |
| 9X-3401 |
PIN-CONNECTOR (16-GA TO 18-GA) –OR–
|
37 | 278 |
| 126-1767 |
PIN-CONNECTOR (14-GA TO 16-GA)
|
37 | 278 |
| 8T-9834 |
PLUG AS-CONNECTOR (40-PIN)
|
1 | 278 |
| 3E-4367 |
RING-RETAINING BOLT (M5X0.8X39.37-MM)
|
1 | 278 |
| 3E-8557 |
3E-8557
|
1 | 278 |
| 9X-3132 |
SEAL-CONNECTOR (40-PIN)
|
2 | 278 |
| 8T-8737 |
PLUG-SEAL RECEPTACLE AS-CONNECTOR (40-PIN)
|
4 | 278 |
| 9X-1339 |
9X-1339
|
1 | 278 |
| 9X-3402 |
SOCKET-CONNECTOR (16-GA TO 18-GA) –OR– SOCKET-CONNECTOR (14-GA TO 16-GA)
|
43 | 278 |
| 126-1768 |
126-1768
|
43 | 278 |
| 119-3662 |
TUBE-HEAT SHRINK (10.85-MM DIA) (7-CM)
|
1 | 278 |
| 125-7874 |
TUBE-HEAT SHRINK (5.72-MM DIA) (5-CM)
|
1 | 278 |
| 6K-0806 |
STRAP-CABLE
|
2 | 369 |
| 156-6175 |
CLIP
|
4 | 369 |

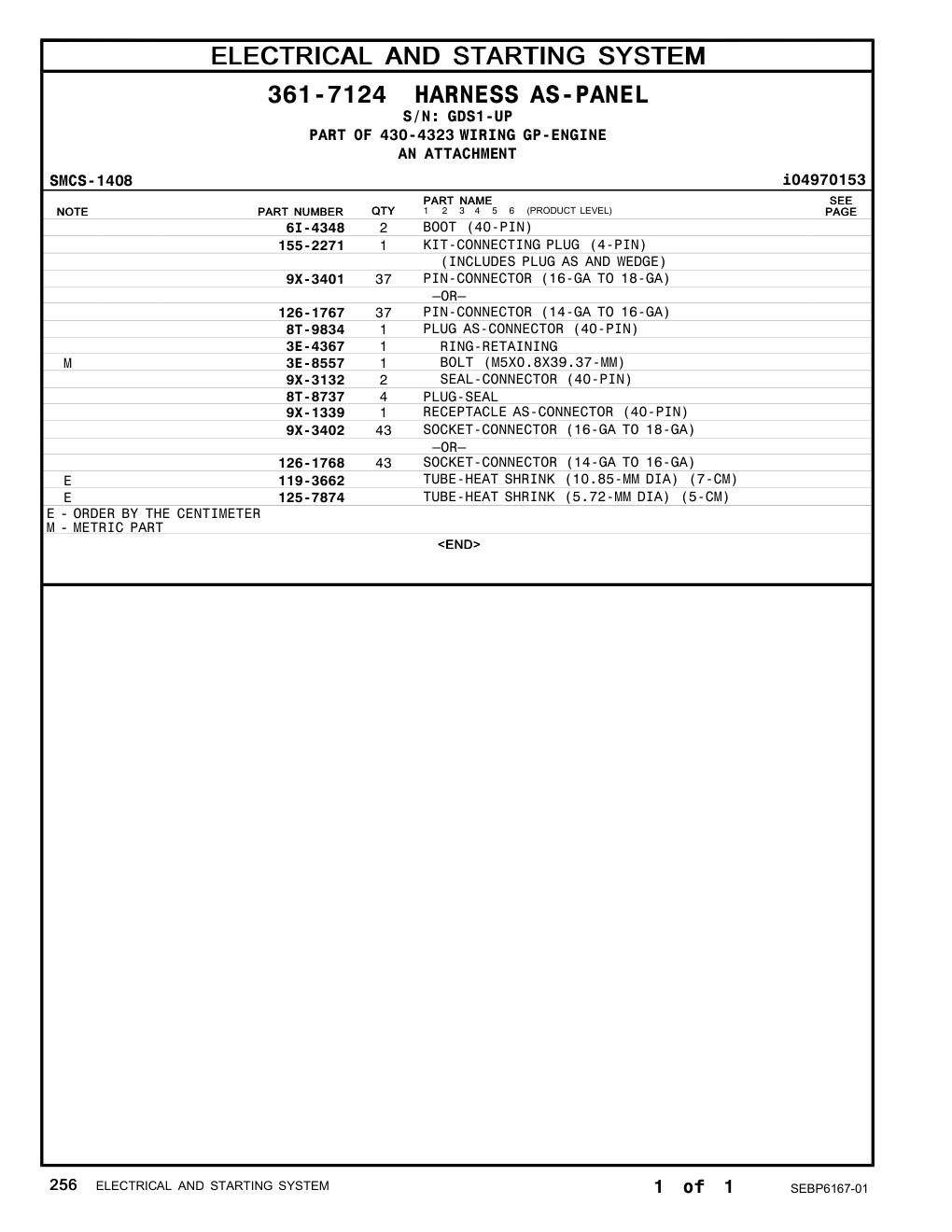

| 361-7124 |
HARNESS AS-PANEL
|
1 | 369 |
| 7K-1181 |
STRAP-CABLE WASHER-HARD (11X21X2.5-MM THK)
|
4 | 369 |
| 8T-4121 |
8T-4121
|
4 | 369 |
| 8T-4133 |
NUT (M10X1.5-THD)
|
2 | 369 |
| 8T-4182 |
BOLT (M10X1.5X45-MM)
|
2 | 369 |
