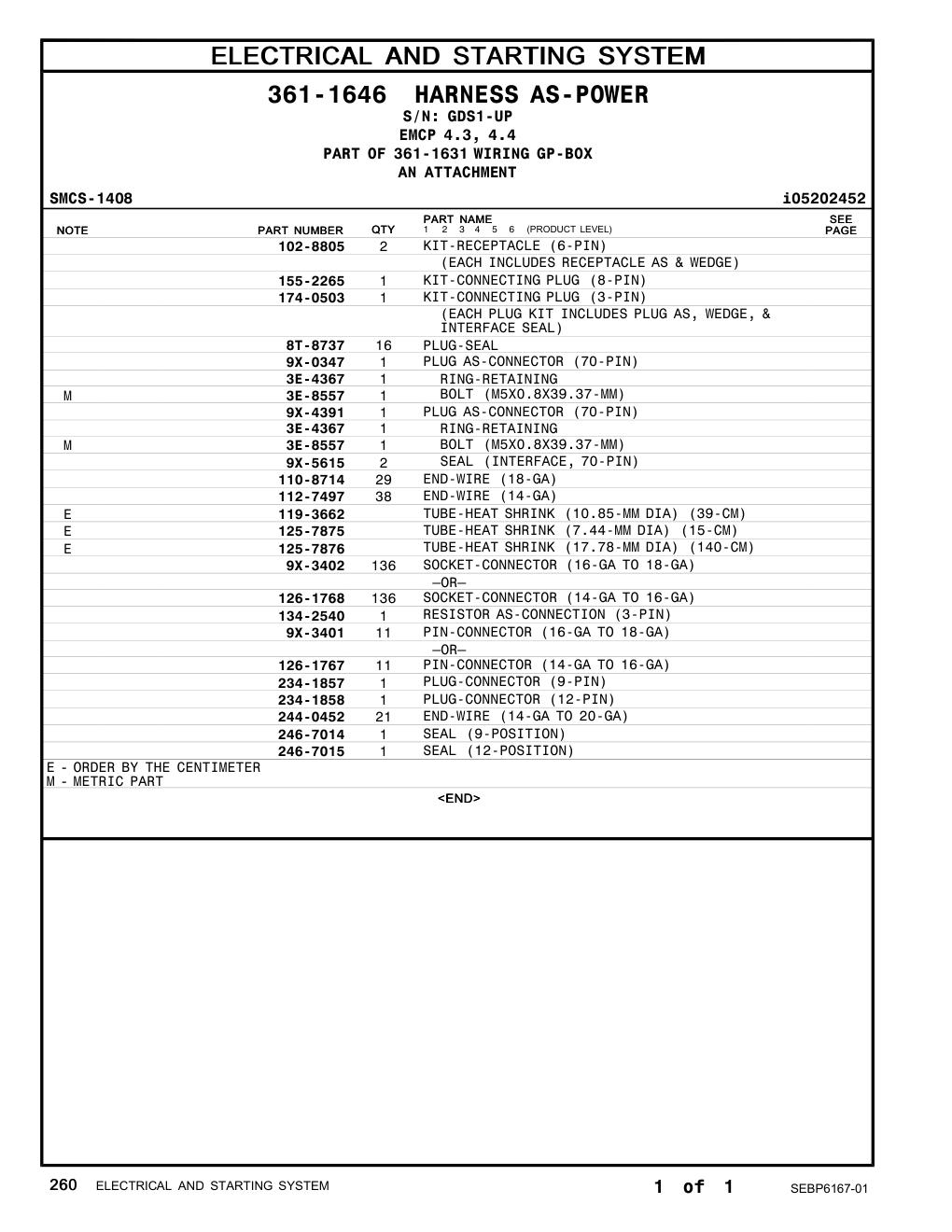

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 155-2265 |
155-2265
|
1 | 282 |
| 174-0503 |
KIT-CONNECTING PLUG (3-PIN) (EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL)
|
1 | 282 |
| 8T-8737 |
PLUG-SEAL PLUG AS-CONNECTOR (70-PIN)
|
16 | 282 |
| 9X-0347 |
9X-0347
|
1 | 282 |
| 3E-4367 |
RING-RETAINING
|
1 | 282 |
| 3E-8557 |
BOLT (M5X0.8X39.37-MM)
|
1 | 282 |
| 9X-4391 |
PLUG AS-CONNECTOR (70-PIN)
|
1 | 282 |
| 9X-5615 |
SEAL (INTERFACE, 70-PIN)
|
2 | 282 |
| 110-8714 |
END-WIRE (18-GA)
|
29 | 282 |
| 112-7497 |
END-WIRE (14-GA) TUBE-HEAT SHRINK (10.85-MM DIA) (39-CM)
|
38 | 282 |
| 119-3662 |
119-3662
|
1 | 282 |
| 125-7875 |
TUBE-HEAT SHRINK (7.44-MM DIA) (15-CM)
|
1 | 282 |
| 125-7876 |
TUBE-HEAT SHRINK (17.78-MM DIA) (140-CM)
|
1 | 282 |
| 9X-3402 |
SOCKET-CONNECTOR (16-GA TO 18-GA) –OR–
|
136 | 282 |
| 126-1768 |
SOCKET-CONNECTOR (14-GA TO 16-GA) RESISTOR AS-CONNECTION (3-PIN)
|
136 | 282 |
| 134-2540 |
134-2540
|
1 | 282 |
| 9X-3401 |
PIN-CONNECTOR (16-GA TO 18-GA) –OR– PIN-CONNECTOR (14-GA TO 16-GA)
|
11 | 282 |
| 126-1767 |
126-1767
|
11 | 282 |
| 234-1857 |
PLUG-CONNECTOR (9-PIN)
|
1 | 282 |
| 234-1858 |
PLUG-CONNECTOR (12-PIN)
|
1 | 282 |
| 244-0452 |
END-WIRE (14-GA TO 20-GA)
|
21 | 282 |
| 246-7014 |
SEAL (9-POSITION) SEAL (12-POSITION)
|
1 | 282 |
| 246-7015 |
246-7015
|
1 | 282 |
| 9X-7144 |
PLUG AS-CONNECTOR (24-PIN)
|
1 | 283 |
| 3E-4367 |
RING-RETAINING
|
1 | 283 |
| 3E-8558 |
BOLT (M5X0.8X39.37-MM)
|
1 | 283 |
| 9X-3265 |
SEAL-CONNECTOR (24-PIN)
|
2 | 283 |
| 3E-8558 |
BOLT (M5X0.8X39.37-MM) END-WIRE (14-GA)
|
1 | 283 |
| 112-7497 |
112-7497
|
11 | 283 |
| 109-3038 |
END-WIRE (16-GA)
|
8 | 283 |
| 244-0452 |
END-WIRE (14-GA TO 20-GA)
|
6 | 283 |
| 155-2260 |
KIT-CONNECTING PLUG (3-PIN)
|
1 | 283 |
| 155-2274 |
KIT-CONNECTING PLUG (6-PIN) (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
|
1 | 283 |
| 8T-8737 |
PLUG-SEAL PLUG-CONNECTOR (6-PIN)
|
7 | 283 |
| 234-1856 |
234-1856
|
1 | 283 |
| 246-7013 |
SEAL (6-POSITION) SEAL-CONNECTOR (24-PIN)
|
1 | 283 |
| 9X-3265 |
9X-3265
|
1 | 283 |
| 9X-3402 |
SOCKET-CONNECTOR (16-GA TO 18-GA) –OR– SOCKET-CONNECTOR (14-GA TO 16-GA)
|
26 | 283 |
| 126-1768 |
126-1768
|
26 | 283 |
| 125-7874 |
TUBE-HEAT SHRINK (5.72-MM DIA) (15-CM)
|
1 | 283 |
