| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

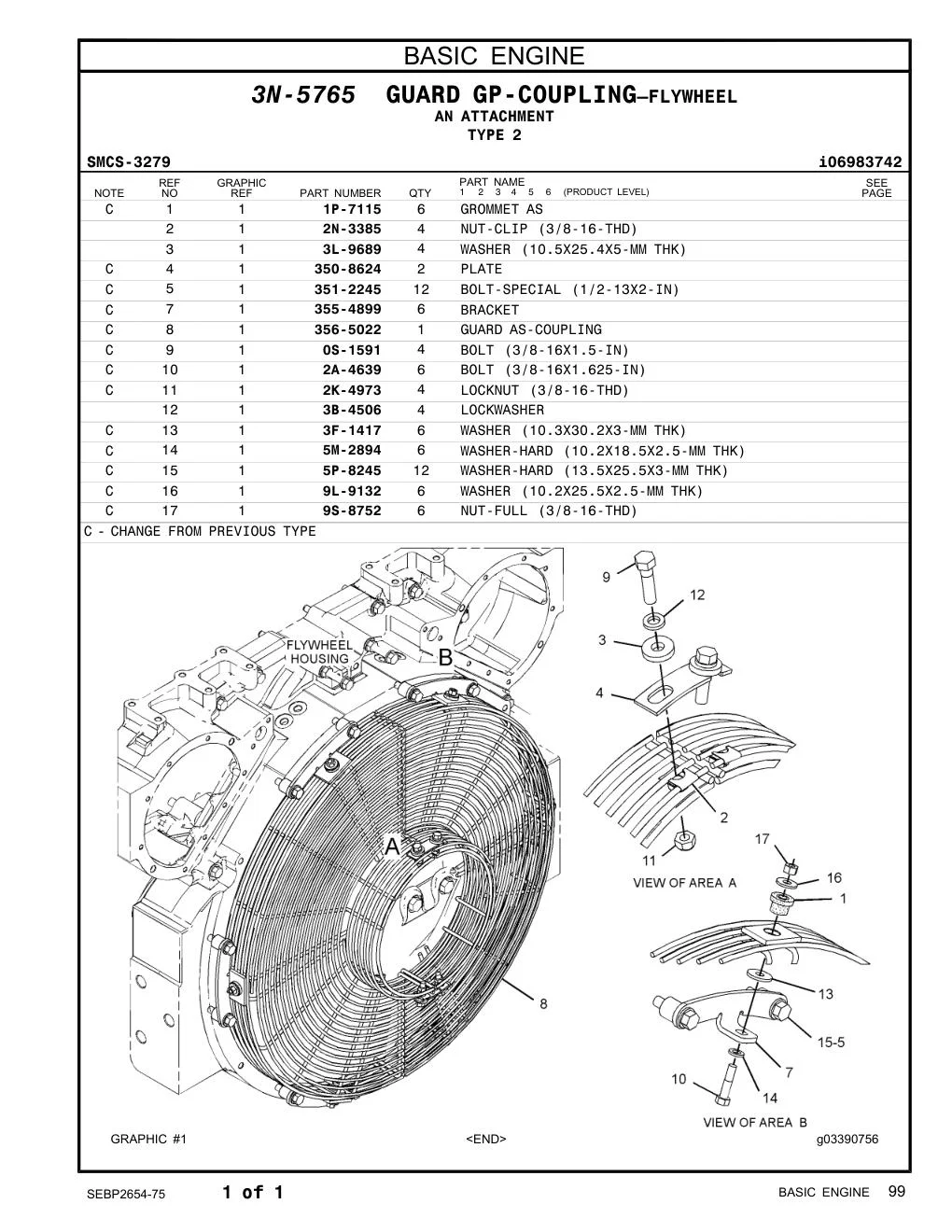

| 1P-7115 |
GROMMET AS
|
6 | 125 |
| 2N-3385 |
NUT-CLIP (3/8-16-THD)
|
4 | 125 |
| 3L-9689 |
WASHER (10.5X25.4X5-MM THK)
|
4 | 125 |
| 350-8624 |
PLATE
|
2 | 125 |
| 351-2245 |
BOLT-SPECIAL (1/2-13X2-IN)
|
12 | 125 |
| 355-4899 |
BRACKET
|
6 | 125 |
| 356-5022 |
GUARD AS-COUPLING
|
1 | 125 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
4 | 125 |
| 2K-4973 |
LOCKNUT (3/8-16-THD)
|
4 | 125 |
| 3B-4506 |
LOCKWASHER
|
4 | 125 |
| 3F-1417 |
WASHER (10.3X30.2X3-MM THK)
|
6 | 125 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
6 | 125 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
12 | 125 |
| 9L-9132 |
WASHER (10.2X25.5X2.5-MM THK)
|
6 | 125 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
|
6 | 125 |
| 6I-3142 |
GUARD AS-DAMPER
|
1 | 126 |
| 0S-1587 |
BOLT (1/2-13X1.75-IN)
|
2 | 126 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
3 | 126 |
| 1F-7958 |
NUT-FULL (1/2-13-THD)
|
1 | 126 |
| 2N-3385 |
NUT-CLIP (3/8-16-THD)
|
16 | 685 |
| 3L-9689 |
WASHER (10.5X25.4X5-MM THK)
|
16 | 685 |
| 3N-5708 |
GUARD AS-EXTENSION
|
1 | 685 |
| 350-8624 |
PLATE
|
8 | 685 |
| 2K-4973 |
LOCKNUT (3/8-16-THD)
|
16 | 685 |
| 3B-4506 |
LOCKWASHER
|
16 | 685 |
| 4P-9063 |
GUARD AS-EXTENSION PLATE
|
1 | 686 |
| 350-8624 |
350-8624
|
1 | 686 |
| 2N-3385 |
NUT-CLIP (3/8-16-THD)
|
8 | 686 |
| 4V-8198 |
SPACER (10.2X28.5X5-MM THK)
|
8 | 686 |
| 2K-4973 |
LOCKNUT (3/8-16-THD)
|
8 | 686 |
| 7N-8651 |
SUPPORT AS (RH)
|
1 | 687 |
| 7N-8652 |
SUPPORT AS (LH)
|
1 | 687 |
| 8T-9399 |
BOLT (3/4-10X2.25-IN)
|
32 | 687 |
| 8T-4994 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
32 | 687 |
| 4L-6665 |
SETSCREW (1-14X3.88-IN)
|
4 | 687 |
| 1B-4209 |
NUT-FULL (1-14-THD)
|
4 | 687 |
| 7W-3737 |
SUPPORT-ENGINE & RADIATOR (RH)
|
1 | 688 |
| 7W-3739 |
SUPPORT-ENGINE & RADIATOR (LH)
|
1 | 688 |
| 8T-4994 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
32 | 688 |
| 8T-9398 |
BOLT (3/4-10X1.75-IN)
|
32 | 688 |
| 7W-3763 |
SUPPORT-GENERATOR & RADIATOR (LH)
|
1 | 689 |
| 7W-7961 |
BRACE-ENGINE SUPPORT
|
2 | 689 |
| 1A-0458 |
BOLT (3/4-10X1.75-IN)
|
1 | 689 |
| 7W-3761 |
SUPPORT-GENERATOR & RADIATOR (RH)
|
1 | 689 |
| 5P-8248 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
44 | 689 |
