| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 140-7551 |
SHUTOFF GP-AIR
|
1 | 325 |
| 7W-6957 |
SOLENOID GP-SHUTOFF
|
1 | 325 |
| 1W-1250 |
COVER
|
1 | 326 |
| 2W-5216 |
SHUTOFF GP-AIR
|
1 | 326 |
| 1W-7391 |
GASKET
|
1 | 326 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
8 | 326 |
| 2W-5213 |
HOUSING
|
1 | 326 |
| 0L-2070 |
BOLT (3/8-16X2.25-IN)
|
18 | 326 |
| 1W-1251 |
GASKET
|
4 | 326 |
| 8T-6761 |
PLUG-PIPE (1-11-1/2 NPT THD)
|
2 | 326 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
18 | 326 |

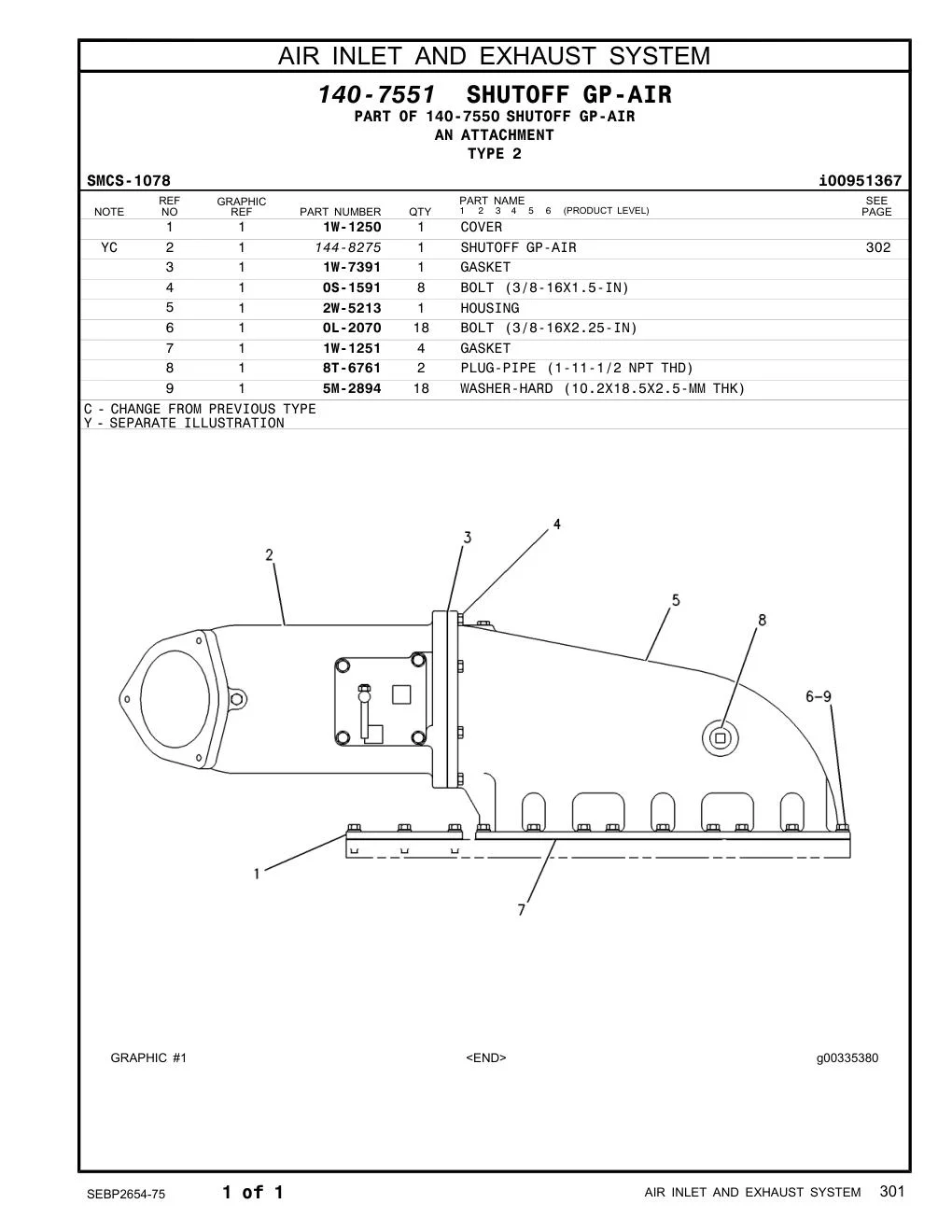

| 1W-1250 |
COVER
|
1 | 327 |
| 1W-7391 |
GASKET
|
1 | 327 |
| 0S-1591 |
BOLT (3/8-16X1.5-IN)
|
8 | 327 |
| 2W-5213 |
HOUSING
|
1 | 327 |
| 0L-2070 |
BOLT (3/8-16X2.25-IN)
|
18 | 327 |
| 1W-1251 |
GASKET
|
4 | 327 |
| 8T-6761 |
PLUG-PIPE (1-11-1/2 NPT THD)
|
2 | 327 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
18 | 327 |
| 139-1568 |
SOLENOID AS (SHUTOFF)
|
1 | 543 |
| 6V-8377 |
NUT (8-32-THD)
|
1 | 543 |
| 9B-7233 |
LOCKWASHER
|
2 | 543 |
| 2W-6382 |
SHAFT-SOLENOID
|
1 | 543 |
| 8L-3873 |
GASKET
|
1 | 543 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
|
2 | 543 |
| 1A-8912 |
WASHER (6.7X12.7X1.6-MM THK)
|
2 | 543 |
| 1W-9070 |
DIODE AS
|
1 | 543 |
| 1H-4560 |
BOOT-SPARK PLUG
|
2 | 543 |
| 7W-6958 |
SHIELD
|
1 | 543 |
| 2W-6507 |
SHIELD
|
1 | 543 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 543 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
|
2 | 543 |
| 7B-2742 |
BOLT (1/4-20X1.25-IN)
|
2 | 543 |
