| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 197-9322 |
LINER-CYLINDER
|
6 | 223 |
| 110-2220 |
SEAL-LINER (141-MM ID)
|
6 | 223 |
| 142-6217 |
SEAL-O-RING
|
6 | 223 |
| 142-7072 |
SEAL-LINER (140.2-MM ID)
|
6 | 223 |
| 267-4631 |
CYLINDER BLOCK AS
|
1 | 223 |
| 9L-5854 |
BAND-FILLER (130.2-MM ID)
|
6 | 223 |
| 238-2700 |
LINER-CYLINDER
|
6 | 224 |
| 229-8568 |
CYLINDER BLOCK AS
|
1 | 224 |
| 167-8081 |
CAP-CRANKSHAFT BEARING
|
7 | 224 |
| 167-8083 |
BOLT (7/8-14X7.5-IN)
|
14 | 224 |
| 9H-1031 |
WASHER-HARD (24X41.5X6-MM THK)
|
14 | 224 |
| 110-2220 |
SEAL-LINER (141-MM ID)
|
6 | 224 |
| 142-6217 |
SEAL-O-RING
|
6 | 224 |
| 142-7072 |
SEAL-LINER (140.2-MM ID)
|
6 | 224 |
| 9L-5854 |
BAND-FILLER (130.2-MM ID)
|
6 | 224 |
| 1S-9540 |
DOWEL
|
1 | 225 |
| 4N-1650 |
DOWEL
|
1 | 225 |
| 6I-1055 |
DOWEL
|
1 | 225 |
| 6I-4421 |
PLATE-SPACER
|
1 | 225 |
| 8S-9094 |
PLUG-ORIFICE
|
1 | 225 |
| 142-2329 |
SEAL
|
1 | 225 |
| 222-1976 |
CYLINDER BLOCK GP
|
1 | 225 |
| 227-1204 |
GASKET
|
1 | 225 |
| 100-7399 |
PLUG
|
2 | 225 |
| 250-0466 |
SEAL-O-RING
|
2 | 225 |
| 4N-0683 |
DOWEL
|
2 | 225 |
| 5P-0840 |
SEAL-O-RING
|
1 | 225 |
| 266-6038 |
DOWEL
|
2 | 225 |
| 1S-9540 |
DOWEL
|
1 | 227 |
| 4N-1650 |
DOWEL
|
1 | 227 |
| 6I-1055 |
DOWEL
|
1 | 227 |
| 6I-4421 |
PLATE-SPACER
|
1 | 227 |
| 8S-9094 |
PLUG-ORIFICE
|
1 | 227 |
| 142-2329 |
SEAL
|
1 | 227 |
| 234-5997 |
CYLINDER BLOCK GP
|
1 | 227 |
| 227-1204 |
GASKET
|
1 | 227 |
| 100-7399 |
PLUG
|
2 | 227 |
| 250-0466 |
SEAL-O-RING
|
2 | 227 |
| 4N-0683 |
DOWEL
|
2 | 227 |
| 5P-0840 |
SEAL-O-RING
|
1 | 227 |
| 266-6038 |
DOWEL
|
2 | 227 |

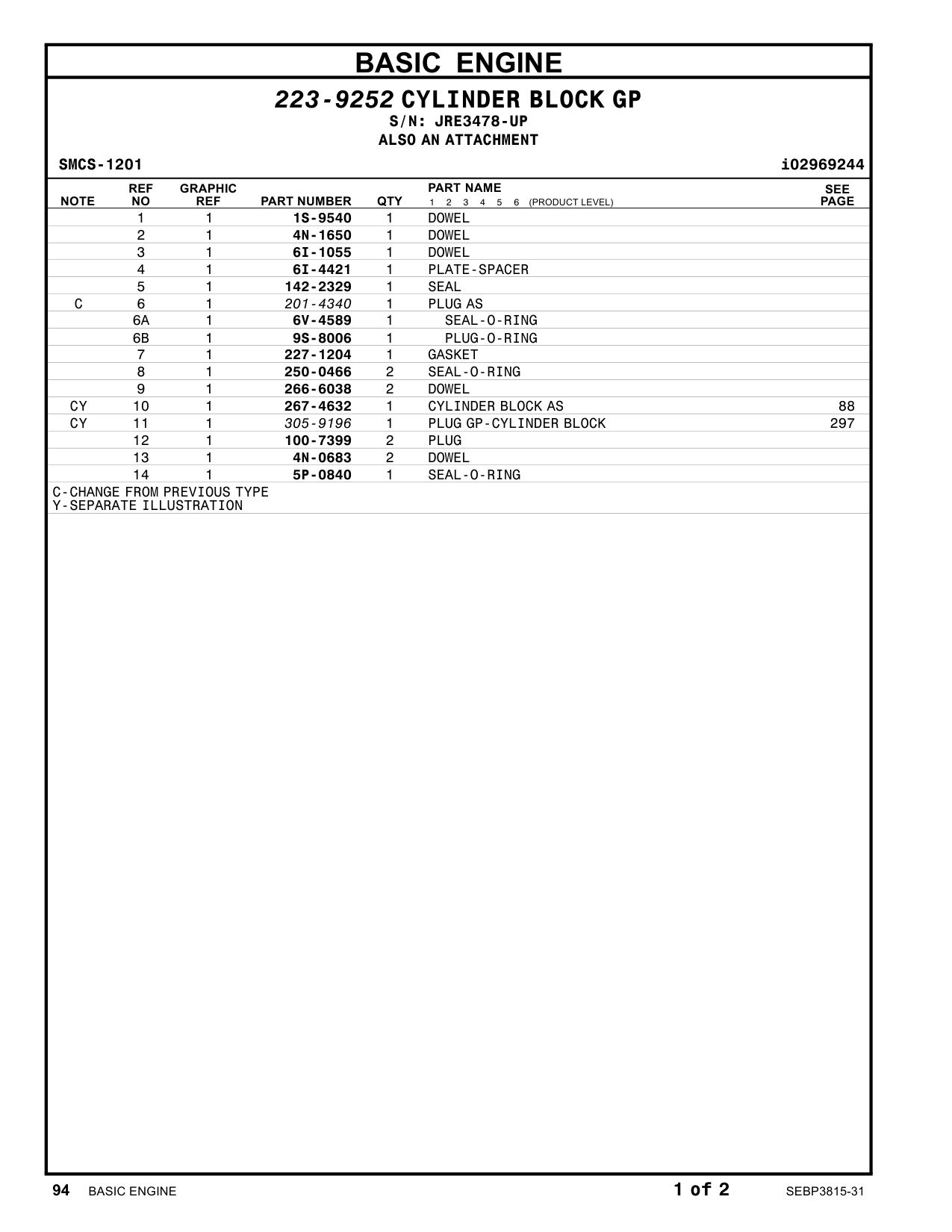

| 1S-9540 |
DOWEL
|
1 | 229 |
| 4N-1650 |
DOWEL
|
1 | 229 |
| 6I-1055 |
DOWEL
|
1 | 229 |
| 6I-4421 |
PLATE-SPACER
|
1 | 229 |
| 142-2329 |
SEAL
|
1 | 229 |
| 201-4340 |
PLUG AS
|
1 | 229 |
| 6V-4589 |
SEAL-O-RING
|
1 | 229 |
| 227-1204 |
GASKET
|
1 | 229 |
| 250-0466 |
SEAL-O-RING
|
2 | 229 |
